Panduit PDT110 110-Style IDC Punchdown Tool and Blade
Overview

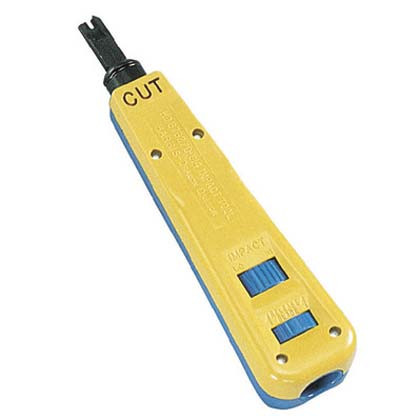

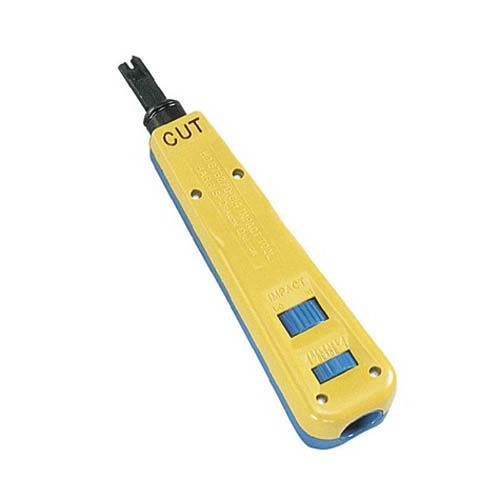

The Panduit PDT110 is a single-pair punchdown tool designed for 110-style IDC terminations on UTP copper cabling. Part of Panduit's Pan-Punch® line, the PDT110 terminates individual conductors into 110-style connectors, patch panels, and distribution blocks cleanly and consistently — a standard task on every structured cabling rough-in or telco cross-connect job. At 5.62 inches in overall length and 1.44 inches (36.6 mm) wide, it fits naturally in one hand and reaches into tight backboxes without forcing awkward angles.
If you're stocking a technician's bag for a run of 110-block terminations — voice cross-connects, legacy data patch blocks, or structured cabling adds — the PDT110 gives you a dedicated, properly tensioned tool rather than relying on a generic impact driver that can seat conductors inconsistently.
Key Features
- 110-Style IDC Compatibility: Engineered specifically for Panduit Pan-Punch® 110-style sockets, connectors, and systems — the blade geometry matches the IDC slot profile precisely, so conductors seat fully without over-driving or splitting the insulation. Using a mismatched blade is a common cause of marginal terminations that pass continuity but fail Category testing.
- Single-Pair Operation: Terminates one pair at a time, which gives the installer direct control and visual confirmation at each conductor — practical on repair work or low-pair-count adds where a multi-pair tool adds unnecessary bulk.
- Compact Form Factor (5.62" OAL, 1.44" Width): The 5.62-inch overall length fits comfortably into wall cavities, backboxes, and MDF/IDF spaces where longer tools bind. The 1.44-inch (36.6 mm) width keeps it maneuverable alongside adjacent punch blocks.
- Pan-Punch® System Integration: Designed to work with the broader Panduit Pan-Punch ecosystem — if your infrastructure already uses Panduit 110 blocks, patch panels, and connectors, this tool is the correct match rather than a cross-brand substitute that may have different blade travel or impact energy.
- Single-Unit Packaging: Ships as a single tool per package, so you can order individual replacements or add units to specific technician kits without minimum-quantity constraints.
- Competitive Cross-Reference: Replaces or substitutes for Fluke Networks 406477794, D-914 KIT, and PTL-19-427 in equivalent 110-style applications — useful if you're standardizing tools across a mixed-legacy install base.
Integration & Compatibility
The PDT110 is designed for use with Panduit Pan-Punch® 110-style sockets, connectors, and distribution systems across the copper structured cabling product line. It is suited for UTP cable terminations in voice and low-speed data applications using 110-style IDC hardware. Verify that your patch panels and punch blocks are 110-style IDC — not Krone/LSA or 66-style — before ordering, as blade geometry is not interchangeable between IDC formats.
Frequently Asked Questions
Q: What type of IDC blocks is the PDT110 designed for?
A: The PDT110 is designed specifically for 110-style IDC terminations, including Panduit Pan-Punch® sockets, connectors, and distribution systems. It is not compatible with 66-style or Krone/LSA formats.
Q: How many pairs can the PDT110 terminate at once?
A: The PDT110 terminates one pair at a time (single-pair operation), giving the technician direct control and visual confirmation at each conductor.
Q: What cable type is the PDT110 intended for?
A: The PDT110 is designed for UTP copper cable terminations in 110-style IDC applications.
Q: What are the overall dimensions of the PDT110?
A: The PDT110 measures 5.62 inches in overall length and 1.44 inches (36.6 mm) in overall width.
Q: Does the PDT110 cross-reference to other manufacturers' tools?
A: Yes. The PDT110 is listed as a substitute for Fluke Networks 406477794, D-914 KIT, and PTL-19-427 in 110-style IDC applications.
Q: How many tools are included per order?
A: The PDT110 ships as a single unit per package.
The PDT110's single-pair design is the right call for controlled termination work where you want tactile feedback at each conductor rather than driving all four pairs in one stroke — I reach for this on repair tickets and incremental add moves where a multi-pair tool is overkill and the margin for error is lower. At 5.62 inches overall length it clears most backbox depths without binding.
Technical Highlights:
- 110-Style Blade Geometry: Matched to Panduit Pan-Punch® IDC slot profiles — blade travel and impact energy are calibrated for consistent seating without over-driving, which matters on Cat5e/Cat6 blocks where a mismatched blade can split the IDC slot and cause intermittent continuity failures.
- Compact 1.44" Width: At 36.6 mm wide, the PDT110 fits between adjacent punch blocks in a dense 110-block field without requiring you to clear neighboring rows — a real time-saver in a fully loaded IDF frame.
- Cross-Reference to Three Competitor SKUs: Listed against Fluke Networks 406477794, D-914 KIT, and PTL-19-427 — useful when standardizing toolkits across a mixed-install base or replacing a lost tool mid-job without sourcing the exact original.
Deployment Considerations:
- Confirm IDC format before ordering — the PDT110 is specific to 110-style blocks. Krone/LSA and 66-style blocks use different blade profiles; substituting tools across formats produces unreliable terminations that may pass a tone test but fail a Category sweep.
- This is a single-pair tool; on large-scale 110-block termination runs (full MDF builds, multi-hundred-pair cross-connects), a multi-pair impact tool will significantly reduce time-on-block — the PDT110 is the right secondary tool, not the primary production driver on those jobs.
Best fit for structured cabling adds, moves, and repairs in commercial IDF/MDF environments already standardized on Panduit 110-style infrastructure — especially where precise single-pair control on a live or partially populated block is the priority.
