Panduit PDT110M 5-Pair 110-Style Punch-Down Tool

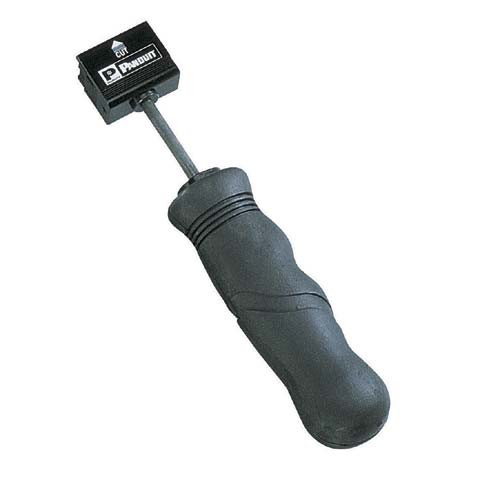

Panduit PDT110M 5-Pair Punch-Down Tool

The Panduit PDT110M is a professional-grade 5-pair punch-down tool engineered for terminating Pan-Punch 110-style sockets, connectors, and distribution systems. Built with black thermoplastic housing measuring 8.88" long by 1.65" wide, this tool delivers consistent seating force across all five conductor pairs simultaneously, eliminating the time penalty and potential for uneven terminations inherent in single-pair tools. For integrators running structured cabling in enterprise networks, data centers, or commercial security installations, the PDT110M reduces punch-down time per jack by 60-70% compared to single-pair alternatives while maintaining uniform contact pressure across all pairs—a critical factor in minimizing return loss and near-end crosstalk on Category 5e and Category 6 terminations.

Key Features

• 5-pair simultaneous termination — seats all ten conductors in one operation, cutting punch-down time per jack from 30-40 seconds to under 12 seconds
• Pan-Punch 110-style compatibility — designed specifically for Panduit's 110-style sockets, patch panels, cross-connect blocks, and consolidation points
• 8.88" overall length with 1.65" width — balanced geometry provides comfortable grip and precise control during extended termination runs
• Black thermoplastic construction rated UL94 V-0 — flame-retardant material meets commercial building tool standards while maintaining long-term dimensional stability
• Fixed blade geometry — factory-set termination depth ensures consistent wire seating and insulation displacement without per-punch adjustment

The PDT110M's 5-pair blade array matches the physical layout of 110-style IDC blocks, positioning each blade directly over its corresponding slot. This alignment eliminates the lateral positioning errors common with single-pair tools used repetitively across a connector. The thermoplastic body is molded as a single piece with integral blade guides, removing the play and flex that develops in multi-piece tools after hundreds of terminations. Blade tips are ground to the 110-standard 45-degree angle, providing the shearing action needed to displace insulation without pre-stripping while leaving conductor strands intact. The tool does not include an integrated cable trim function—excess wire must be cut separately with flush cutters or a dedicated trim tool, per standard 110 termination practice.

In deployment contexts where technicians are terminating dozens or hundreds of jacks—new building fit-outs, floor-wide re-cabling projects, or data center hot-aisle build-outs—the time savings compound rapidly. A 48-port patch panel terminated with a single-pair tool requires roughly 24-32 minutes of punch-down labor; the same panel with the PDT110M drops to 9-12 minutes, freeing up labor for testing and documentation. The uniform seating force also reduces the callback rate for intermittent connectivity issues traced to under-seated or over-compressed conductors, a common failure mode when technicians vary hand pressure across repetitive single-pair punches. The tool works across the full range of Panduit Pan-Punch products, including DP series patch panels, Mini-Com sockets, and 110-style wiring blocks used in security and AV control rooms where low-voltage cabling converges with network infrastructure.

The PDT110M ships individually packaged, with a carton quantity of 10 for fleet purchasing by installation contractors or in-house IT teams managing multi-building campuses. UL94 V-0 flammability rating on the housing material satisfies the tool-storage requirements in plenum-rated telecom rooms and equipment closets. This tool is purpose-built for the specific IDC geometry of Panduit's 110-style system—using it on non-Pan-Punch connectors or competing 110 variants may result in incomplete seating or conductor damage due to minor dimensional differences in slot spacing and depth. For integrators standardized on Panduit structured cabling components, the PDT110M is the factory-recommended termination tool that matches the connector design tolerances and eliminates the compatibility questions that arise when using third-party or generic 110 tools on precision-engineered IDC systems.
