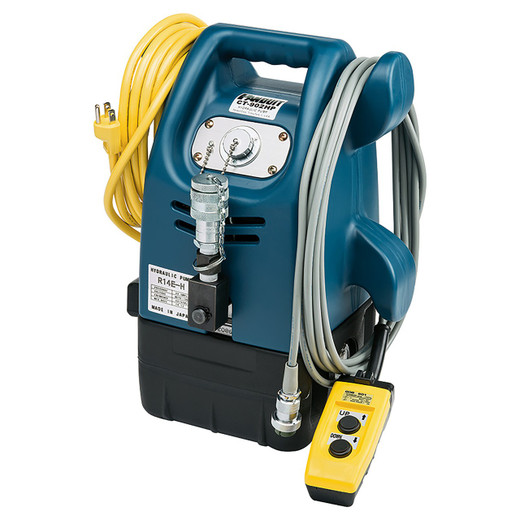

Panduit CT-902HPRFS 10,000 PSI Hydraulic Crimping Pump with Remote Foot Switch
Overview
The Panduit CT-902HPRFS is a 110V hydraulic pump rated to 10,000 PSI, built for continuous-duty wire termination in high-volume electrical and data center environments. Part of the Pan-Lug™ tooling line, this pump is designed to pair with Panduit's heavy-duty wire termination crimping heads — including the CT-920CH, CT-940CH, CT-980CH, and CT-940CH/BJO — delivering the hydraulic force required for large-gauge lug and connector crimps that hand or ratchet tools simply cannot produce at scale. If your team is terminating high-current conductors on a regular basis, the CT-902HPRFS is the production-grade power source behind that work.
At 15.5 inches tall and 10.5 inches wide, the pump is sized for shop or rack room floor use — not a handheld tool, but a stationary unit that anchors a crimping station. The remote foot pedal ships pre-attached, so your technician's hands stay on the conductor and crimping head rather than hunting for a trigger.
Key Features
- 10,000 PSI Hydraulic Output: Full 10K PSI means the CT-902HPRFS can drive Panduit's largest crimping heads through heavy-gauge terminations without cavitation or pressure drop mid-cycle — critical when you're terminating 600 kcmil or larger conductors where an incomplete crimp is a warranty and safety issue.
- 110V Single-Phase Power: Runs on standard 115V utility power found on any panel room or construction site generator — no three-phase service, no step-down transformer. Plug in and commission immediately.
- Remote Foot Switch Pre-Installed: The foot pedal ships already attached to the pump unit, eliminating a setup step that other hydraulic systems leave to the installer. Both hands remain free to align and seat the conductor in the die set, reducing mis-crimp incidents in high-cycle environments.
- Parker Quick-Connect Fittings: Industry-standard Parker-type hydraulic couplers allow fast head swaps between crimping head models without tools and without hydraulic fluid spillage — a practical advantage when a single pump serves multiple head sizes across a large termination run.
- Pan-Lug™ Ecosystem Compatibility: Engineered specifically to drive the CT-920CH, CT-920CH/CCP, CT-940CH, CT-980CH, and CT-940CH/BJO crimping heads, ensuring pressure curves and cycle timing are matched to the die geometry. Using a third-party pump of similar PSI rating may void crimp verification on Panduit Pan-Lug tooling.
- Continuous Crimping Application Design: Unlike intermittent-duty pumps rated for occasional field use, the CT-902HPRFS is specified for continuous pressing applications — meaning it can sustain production-line crimping rates without thermal shutdown or pressure relief cycling interfering with throughput.
- Compact Footprint for Fixed Stations: At 9.5 inches in length, 10.5 inches wide, and 15.5 inches tall, the unit fits under a standard work bench or alongside a termination table without consuming floor space that technicians need for conductor routing and reel management.
Integration & Compatibility
The CT-902HPRFS is a hydraulic power source, not a standalone crimping tool. It must be paired with a compatible Panduit crimping head. Verified compatible heads from the Pan-Lug™ line include the CT-920CH, CT-920CH/CCP, CT-940CH, CT-980CH, and CT-940CH/BJO. Connection is via Parker quick-connect hydraulic fittings, which are standard across the Pan-Lug tooling line. Before commissioning, confirm your crimping head model is on the verified compatibility list — Panduit's Pan-Lug wire termination tools are matched pressure-curve systems, and substituting an unverified head can produce out-of-spec crimps even at the correct PSI.
This pump operates on 110V/115V single-phase power. No special electrical infrastructure is required beyond a properly rated outlet and extension cord appropriate for the pump's current draw. For large-scale panel termination projects, position the pump within cord reach of a dedicated circuit to avoid nuisance breaker trips under sustained load.
For facilities managing large conductor inventories, pairing this pump with Panduit's Pan-Lug lug and connector inventory from the broader Panduit catalog ensures die-to-lug compatibility is factory-validated rather than field-guessed. Hydraulic crimping at 10,000 PSI produces repeatable, inspectable terminations — the consistency that UL and NEC inspection regimes expect on large commercial and industrial installs.
Frequently Asked Questions
Q: Which Panduit crimping heads are compatible with the CT-902HPRFS?
A: The CT-902HPRFS is verified compatible with the following Pan-Lug™ crimping heads: CT-920CH, CT-920CH/CCP, CT-940CH, CT-980CH, and CT-940CH/BJO. Connection is via Parker quick-connect hydraulic fittings. Always verify your specific head model against Panduit's compatibility documentation before pairing with this pump.
Q: Does the CT-902HPRFS include the foot pedal, or is that a separate purchase?
A: The remote foot switch ships pre-attached to the CT-902HPRFS pump — it is included in the box and does not need to be ordered separately. It arrives ready to use, reducing setup time at the termination station.
Q: What voltage does the CT-902HPRFS require?
A: The CT-902HPRFS runs on 110V/115V single-phase power — standard utility voltage. No three-phase service or step-down transformer is required.
Q: What is the maximum operating pressure of the CT-902HPRFS?
A: The pump is rated to 10,000 PSI (10K PSI) hydraulic output pressure, designed for continuous pressing applications with Panduit Pan-Lug™ crimping heads.
Q: What are the physical dimensions of the CT-902HPRFS?
A: The unit measures 15.5 inches tall, 10.5 inches wide, and 9.5 inches in length — sized for fixed workstation or floor use alongside a termination bench.
Q: What type of hydraulic fittings does the CT-902HPRFS use?
A: The CT-902HPRFS uses Parker quick-connect hydraulic fittings, which allow tool-free head swaps between compatible Pan-Lug™ crimping heads without hydraulic fluid spillage.
The CT-902HPRFS is the pump I'd spec for any fixed termination station running continuous large-gauge crimping shifts. The 10,000 PSI rating is what separates this from lighter-duty hydraulic tools — you need that full pressure to produce a cold-weld-quality crimp on 350 kcmil and above, and any pressure drop mid-cycle on those conductors means a rework or a failed inspection. CT-902HPRFS (often searched as CT 902HPRFS) is the production workhorse in Panduit's Pan-Lug tooling line for exactly this reason.
Technical Highlights:
- 10,000 PSI Continuous Duty: Full-rated pressure sustained across a production cycle, not just peak — this is what the Pan-Lug CT-940CH and CT-980CH heads are engineered against. Intermittent-duty pumps lose pressure under sustained use and produce inconsistent crimp depths.
- Parker Quick-Connect Fittings: Swapping heads between the CT-920CH and CT-940CH takes under 30 seconds with no tools and no fluid mess — meaningful when a single pump serves multiple head sizes on the same panel run.
- Pre-Attached Foot Pedal: Eliminates the foot-pedal wiring step other systems charge extra for or leave to the installer. Both hands on the conductor from the first crimp.
Deployment Considerations:
- The CT-902HPRFS is a stationary unit at 15.5 inches tall — plan your termination bench layout before delivery. It needs stable floor or shelf placement close enough to the work surface that the hydraulic hose to the crimping head isn't under strain.
- Compatibility is specific: this pump is validated against five named Panduit heads. Do not assume it drives third-party hydraulic crimping heads — Parker fittings are physically compatible with many tools, but the pressure curve and cycle characteristics are matched to Pan-Lug tooling. Using an unverified head risks out-of-spec crimps with no visible indicator.
For MV switchgear termination rooms, data center main distribution panels, or industrial facilities running scheduled cable termination shifts, the CT-902HPRFS anchors the kind of repeatable, inspectable crimping station that passes NEC and UL inspection without rework.
