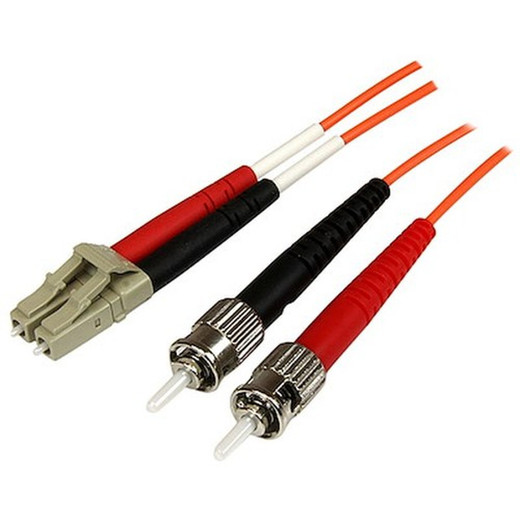

StarTech 50FIBPLCST3 LC to ST Duplex OM2 Multimode Plenum Fiber Patch Cable

Overview

The StarTech 50FIBPLCST3 is a 3-meter (9.8 ft) duplex multimode fiber patch cable connecting LC duplex to ST duplex connectors over 50/125 OM2 fiber — the right choice when you need a short, OFNP plenum-rated run between a fiber-connected network switch, NVR, or media converter and a wall plate or distribution panel in an air-handling ceiling or raised-floor environment. At 10Gbps rated throughput, it handles everything from 1Gbps surveillance backbones to 10Gbps uplinks without becoming a bottleneck. If you're building or extending a fiber optic cable infrastructure to support high-density IP camera deployments, this cable fits neatly into the patching layer.

Key Features

• OFNP Plenum Fire Rating: Plenum-rated jackets are required by code in air-handling spaces — drop ceilings, raised floors, and HVAC ducts where ordinary riser-rated cables cannot legally be installed. The 50FIBPLCST3 carries the OFNP (Optical Fiber Nonconductive Plenum) designation, so you won't need conduit in plenum zones, saving both labor and materials on commercial buildouts.
• OM2 50/125 Multimode Fiber: The 50-micron core is optimized for LED and VCSEL light sources common in enterprise switches and media converters. At 3 meters, you're well within OM2's modal bandwidth limits for 1Gbps and 10Gbps — no signal degradation concerns at this distance. If your runs will eventually exceed 300m at 1Gbps or 82m at 10Gbps, plan for OM3 or OM4 instead.
• 10Gbps Maximum Data Rate: A 10Gbps-capable patch cable future-proofs your patching layer for 10GbE uplinks. Surveillance backbones carrying streams from 30, 50, or 100+ cameras benefit from headroom at the switch-to-NVR or switch-to-core link — this cable won't be the limiting factor.
• LC Duplex to ST Duplex Connectors: LC is the dominant connector on modern SFP-based switches and media converters; ST (bayonet-style) remains common on older distribution panels, legacy switches, and building infrastructure installed before LC became standard. This cable bridges both ecosystems without an adapter, which reduces insertion loss compared to stacking a coupler between two single-connector cables.
• 3-Meter Length (9.8 ft): Sized for in-rack and patch-panel-to-equipment runs inside a server room, IDF closet, or equipment cabinet. Long enough to dress neatly with slack management; short enough to avoid the cable management issues that come with coiling excess fiber.
• Operating Temperature -20°C to 60°C: Covers conditioned mechanical rooms, data closets, and lightly climate-controlled server rooms. Not rated for outdoor or uncontrolled environments — for those applications, specify an outdoor-rated armored fiber assembly instead.
• Duplex Configuration: Duplex (two fibers in one jacket) handles full-duplex communication — simultaneous transmit and receive — required for standard fiber network links. No separate TX/RX fiber management needed; the duplex clip keeps both strands aligned and prevents accidental polarity swaps during installation.
• Lightweight at 52g: At 52 grams, this cable won't stress SFP cage latches or add meaningful load to fiber trays in dense patch panels — a real consideration when populating 24- or 48-port panels in a single rack.

Integration and Compatibility

The 50FIBPLCST3 is compatible with any equipment using standard LC duplex SFP ports on one end and ST duplex fiber ports on the other. Typical use cases include connecting an LC-port network switch or PoE switch to an ST-terminated fiber panel, patching a media converter to a building's existing ST fiber plant, or linking an NVR with an SFP expansion slot to an ST wall outlet feeding a longer campus run. Because OM2 is a legacy multimode classification, verify that your SFP transceivers specify OM2 compatibility — most OM3/OM4-spec SFPs will work at short distances over OM2, but confirm with the transceiver datasheet for mission-critical links. This cable does not support single-mode SFPs; single-mode requires 9/125 fiber with OS1/OS2 classification. For broader fiber infrastructure planning, review the network cabling selection guide to match fiber grade to distance and bandwidth requirements.

Frequently Asked Questions

Q: Can the 50FIBPLCST3 be used in a plenum ceiling without conduit?

A: Yes. The OFNP (Optical Fiber Nonconductive Plenum) fire rating on the 50FIBPLCST3 allows installation in air-handling plenum spaces without conduit under NEC Article 770. Always verify local code requirements, but OFNP is the highest standard fiber cable fire rating for indoor installations.

Q: Will this cable support 10Gbps connections?

A: Yes. The 50FIBPLCST3 is rated for up to 10Gbps. At 3 meters, it is well within the distance limits for 10GbE over OM2 50/125 multimode fiber (IEEE 802.3ae specifies up to 82m for 10GBASE-SR over OM2). For longer runs approaching or exceeding that limit, upgrade to OM3 or OM4 fiber.

Q: What is the difference between OM2 and OM3 multimode fiber — should I use this cable or a higher-grade option?

A: OM2 uses a 50/125 micron core and supports 10Gbps up to approximately 82 meters and 1Gbps up to 550 meters. OM3 extends 10Gbps reach to 300 meters. At 3 meters, OM2 performs identically to OM3 or OM4 — the 50FIBPLCST3 is the correct and cost-appropriate choice for short patch runs.

Q: Is this cable compatible with single-mode SFP transceivers?

A: No. Single-mode SFPs require 9/125 OS1 or OS2 single-mode fiber. The 50FIBPLCST3 uses 50/125 multimode OM2 fiber and is only compatible with multimode (MM) SFP transceivers. Using a single-mode transceiver with multimode fiber will result in signal loss and an unreliable link.

Q: What is the operating temperature range for the 50FIBPLCST3?

A: Operating temperature is -20°C to 60°C. This covers standard conditioned IT environments including server rooms, network closets, and IDF spaces. It is not rated for outdoor use or uncontrolled environments subject to moisture, direct sunlight, or extreme temperatures.

Q: Does the LC end connect to standard SFP ports on network switches?

A: Yes. The LC duplex connector on the 50FIBPLCST3 is the standard interface for SFP (1G) and SFP+ (10G) fiber transceivers used in managed switches, NVRs with fiber expansion, and media converters. The ST duplex end connects to bayonet-style ST ports found on older switches, fiber distribution panels, and legacy building cabling infrastructure.

James Everett

The detail I pay most attention to with a cable like the 50FIBPLCST3 is the fire rating — OFNP plenum certification is a hard code requirement in air-handling spaces, and specifying a riser-rated cable by mistake means a rip-and-replace after the inspector walks through. At 3 meters over OM2 50/125 fiber, this cable is sized for the patching layer, not the backbone, and it handles 10Gbps without reservation at that distance.

Technical Highlights:

• OFNP Plenum Rating: Legally required for exposed runs in air-handling ceilings and raised floors — eliminates the cost and labor of conduit in those zones on commercial projects.
• 10Gbps on OM2 at 3m: OM2's 82-meter 10GbE limit is a non-issue at this length — you get full 10Gbps headroom for switch-to-NVR or switch-to-core uplinks without paying for OM4.
• LC-to-ST Bridging: Directly connecting modern LC-port SFP equipment to legacy ST fiber panels avoids the insertion loss penalty of stacking an LC-to-ST coupler between two separate patch cables — cleaner signal path, fewer failure points.

Deployment Considerations:

• Verify that your SFP transceivers are specified for multimode OM2 — some 10G SFP+ modules are optimized for OM3/OM4 and may show elevated bit error rates over OM2 even at short distances. Confirm with the transceiver datasheet before ordering at scale.
• The -20°C to 60°C operating range covers conditioned IT spaces comfortably, but this is not a cable for uncontrolled or outdoor environments — if you're bridging from an outdoor fiber entry point to an indoor panel, the outdoor segment needs a separate outdoor-rated assembly.

This cable is the right specification for IDF and MDF patching in commercial buildings where legacy ST fiber panels exist alongside modern LC-port switches — a common scenario in enterprise security and surveillance infrastructure upgrades where the horizontal fiber plant predates current connector standards.
