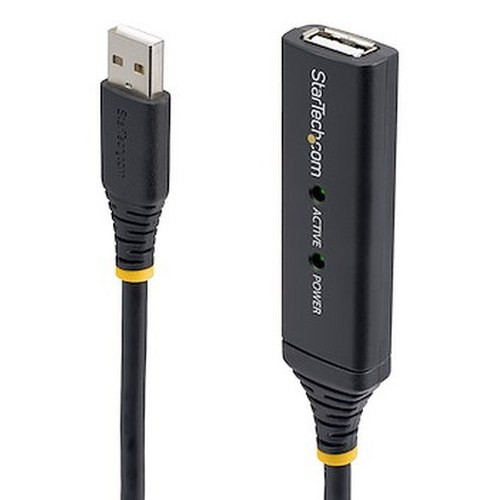

StarTech USB2AAEXT10M 10-Meter Active USB 2.0 Extension Cable

Overview

The StarTech USB2AAEXT10M solves a real installation headache: USB 2.0's 5-meter passive cable limit. By integrating an active signal repeater directly into the cable assembly, this 10-meter extension pushes full 480 Mbps throughput across double the standard distance — without signal degradation, without an external repeater box, and without pulling new infrastructure. If you're connecting a USB camera, card reader, scanner, or control device to a host that simply can't be positioned within arm's reach, this is the direct answer.

The Type-A male to Type-A female form factor means it drops into any existing USB 2.0 chain as a transparent extension — plug your existing device cable into the female end, plug the male end into the host port, and the repeater electronics handle the rest. The built-in power supply accepts 100–240V AC, so the unit is equally at home in North American rack rooms and international deployments without an adapter.

Key Features

• 10-Meter Active Reach: Passive USB cables are specced to 5 meters maximum — beyond that, signal integrity degrades and devices disconnect or fail to enumerate. The USB2AAEXT10M's active repeater regenerates the signal mid-run, delivering a reliable 10-meter extension. That's meaningful in access control readers, kiosk builds, or security desk peripherals where the host machine is locked in a back rack.
• Full 480 Mbps USB 2.0 Throughput: The active repeater preserves the full Hi-Speed USB 2.0 data rate. There's no bandwidth penalty for the added distance — a USB webcam, card enrollment station, or biometric reader will behave exactly as if it were plugged directly into the host port.
• Type-A Male to Type-A Female Connectors: Standard Type-A on both ends means no adapter fumbling. The male end goes into the host; the female end accepts your device cable. Compatible with any device using a Type-A USB connection — cameras, scanners, card readers, storage devices, or enrollment terminals.
• Integrated 5W Power Supply (100–240V AC Input): The repeater draws 5W from a standard AC outlet (0.35A at 100–240V), delivering 5V DC at 1A to power the active circuitry. This also means it can supply bus power to downstream devices that require it — no separate USB hub or injector needed for low-power peripherals.
• Compact Inline Form Factor: At 86.5 mm × 22 mm × 12 mm, the repeater module sits discreetly at the host end of the cable run. It won't interfere with neighboring ports and can be cable-managed against a rack rail or desk edge without requiring a mounting footprint.
• 2-Year Manufacturer Warranty: StarTech backs the USB2AAEXT10M with a 2-year warranty — useful in commercial deployments where a failed cable run means an offline enrollment station or disconnected security peripheral.

Integration and Compatibility

The USB2AAEXT10M is compatible with any USB 2.0 or USB 3.x host port — USB 3.x ports are backward-compatible with USB 2.0 devices and cables, so the extension will enumerate correctly even on modern hosts. It works with any USB 2.0 peripheral: USB cameras, card readers, biometric scanners, signature pads, barcode scanners, and similar devices used in access control enrollment stations, security desks, and kiosk enclosures.

Note that USB 2.0 active extensions do not cascade — you cannot chain two USB2AAEXT10M units together to reach 20 meters. If your run exceeds 10 meters, consider a USB-over-Cat5 or USB-over-fiber extender solution designed for longer distances. Also confirm that the downstream device does not exceed the 1A bus power output of this unit's repeater — high-power USB devices (external hard drives spinning over 1A) may require self-powered hubs downstream.

For USB connectivity accessories and related extension hardware, browse the full connectivity catalog. If you're building out a larger access control or IP camera deployment and need guidance on peripheral distances and cabling strategy, the network cabling guide covers structured cabling and peripheral reach planning. For access control systems where enrollment readers need to be positioned away from the host workstation, this type of active extension is a common solution. See the full StarTech connectivity lineup for additional USB, HDMI, and KVM extension options.

Frequently Asked Questions

Q: Can I chain two USB2AAEXT10M cables together to get 20 meters of extension?

A: No. USB 2.0 active extension cables are not designed to be cascaded. Chaining two active extensions will result in unreliable enumeration or device failure. If you need more than 10 meters, use a USB-over-Cat5 or USB-over-fiber extender solution designed for longer runs.

Q: Does the USB2AAEXT10M require a separate power adapter, or does it power from the USB host port?

A: The active repeater in the USB2AAEXT10M is powered by an integrated AC power supply (100–240V input, 5V/1A DC output, 5W total consumption). It requires an AC outlet at or near the host end of the cable — it does not draw power from the USB host port itself.

Q: Will the USB2AAEXT10M work with a USB 3.0 or USB 3.1 host port?

A: Yes. USB 3.x ports are backward-compatible with USB 2.0 devices and cables. The USB2AAEXT10M will enumerate correctly on USB 3.0 or 3.1 hosts, but data transfer will be limited to USB 2.0 speeds (480 Mbps maximum) since the cable is a USB 2.0 device.

Q: What is the warranty on the USB2AAEXT10M?

A: StarTech provides a 2-year manufacturer warranty on the USB2AAEXT10M.

Q: Can the USB2AAEXT10M supply bus power to the connected USB device?

A: Yes. The integrated power supply outputs 5V at 1A (5W), which can supply bus power to low-power downstream USB devices. High-power USB devices that require more than 1A may require a self-powered USB hub downstream of this extender.

Q: What connector types does the USB2AAEXT10M use?

A: The USB2AAEXT10M has a USB 2.0 Type-A male connector at the host end and a USB 2.0 Type-A female connector at the device end. It acts as a transparent extension — plug your existing device cable into the female port as normal.

Jerry Tildsen

The USB2AAEXT10M addresses a specific and recurring problem on commercial security and access control installs: the host workstation is rack-mounted in a back closet, and the enrollment reader or USB peripheral needs to sit at a desk or counter 8–10 meters away. The integrated AC-powered repeater — drawing just 0.35A from a 100–240V outlet — delivers full 480 Mbps throughput at exactly 10 meters, which covers the vast majority of single-room and small-suite runs without any additional hardware.

Technical Highlights:

• Active Repeater at 10m: Passive USB 2.0 tops out at 5 meters before signal degradation causes enumeration failures. The active electronics in this unit regenerate the signal, delivering reliable device communication at double that distance.
• 5V/1A Bus Power Output: The AC-powered supply outputs 1A downstream — enough to keep low-draw USB peripherals (card readers, signature pads, enrollment cameras) powered through the extension without a separate hub or injector.
• Universal AC Input (100–240V): The built-in supply handles any standard AC voltage worldwide, making this unit viable for international deployments without a separate voltage adapter.

Deployment Considerations:

• An AC outlet must be accessible at or near the host end of the run — plan your raceway accordingly, particularly in retrofit installs where outlet placement is fixed.
• Do not cascade two USB2AAEXT10M units expecting 20 meters of reach — USB 2.0 active extensions do not stack reliably. For runs beyond 10 meters, specify a USB-over-Cat5 or USB-over-fiber extender instead.

This unit is well-suited for access control enrollment stations in commercial lobbies where a biometric reader or card programmer needs to reach back to a locked rack room — a clean, single-cable solution that eliminates the need for a dedicated PC or hub at the reader location.
