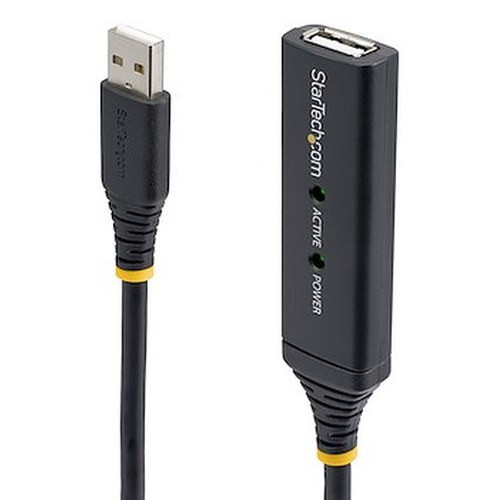

StarTech USB2AAEXT25M 25-Meter Active USB 2.0 Extension Cable

Overview

The StarTech USB2AAEXT25M solves a real infrastructure problem: USB 2.0's native 5-meter cable limit is nowhere near enough for most commercial deployments. Whether you're running a USB camera to a distant workstation, connecting a digital signage input across a room, or linking a USB device to a rackmounted server in a nearby IDF closet, this active extension cable reaches 25 meters — five times the passive USB specification — while maintaining the full 480 Mbps Hi-Speed USB 2.0 data rate. No repeater boxes on the wall, no powered hubs daisy-chained together. The signal conditioning is built into the cable assembly itself. Explore the full StarTech connectivity catalog for related USB and network infrastructure accessories.

Key Features

• 25-Meter Reach at Full 480 Mbps: Standard passive USB tops out at 5 meters before signal integrity degrades. The USB2AAEXT25M actively amplifies and reconditions the signal, delivering the complete USB 2.0 Hi-Speed 480 Mbps throughput across the full 25-meter run. That's enough distance to cross a mid-size conference room, a retail floor, or a server room-to-kiosk installation without signal compromise.
• Integrated AC Power Supply (100–240V, 0.35A input): The active electronics need power, and StarTech handles that with a built-in universal AC adapter — 100 to 240V input means it works on any standard outlet worldwide. No hunting for a proprietary brick or matching voltage. Draws only 5 watts total, so it won't compete meaningfully with other devices on a shared power strip.
• 5V / 1A USB Power Output: The cable delivers 5V DC at up to 1A to the connected USB device. That's 5 watts of bus power — enough for most USB 2.0 peripherals including webcams, card readers, and USB audio interfaces — eliminating the need for a separately powered device at the far end in many deployments.
• Compact Transmitter Module (86.5 × 22 × 12mm): The active transmitter housing is small enough to tuck behind a monitor arm, under a desk, or inside a shallow AV rack shelf. At 86.5mm long and only 12mm tall, it doesn't impose on cable management in tight spaces.
• Operating Range 0°C to 70°C: Rated for standard commercial and light industrial environments. Suitable for temperature-controlled server rooms, retail spaces, conference rooms, and office environments without derating. Not designed for outdoor or uncontrolled-temperature industrial environments.
• Backward Compatible with USB 1.1: USB 2.0 Hi-Speed is backward compatible with USB 1.1 Full Speed and Low Speed devices, so legacy peripherals — barcode scanners, older HID devices, USB audio — work on this cable without modification.
• 2-Year Manufacturer Warranty: StarTech backs the USB2AAEXT25M with a 2-year warranty, appropriate for a commercial-grade connectivity component in a business environment.

Integration and Compatibility

The USB2AAEXT25M is a standard USB Type-A to Type-A extension, compatible with any host that provides a USB Type-A port — Windows, macOS, and Linux systems without driver installation. It fits naturally into USB cable and adapter deployments alongside other structured cabling components. Use it to connect USB devices in AV systems, security camera installations, digital signage controllers, or point-of-sale peripherals where the host and device cannot be co-located. If your deployment requires extending multiple USB devices simultaneously, pair it with a USB hub at the far end — just confirm that hub's power draw stays within the 1A output budget of this cable. For longer runs or more demanding USB 3.0 speeds, consult a network infrastructure guide to evaluate active optical or Cat5e-based USB extenders, which may better fit your requirements. The 1.0 kg assembly weight and compact form factor also make it easy to integrate into a structured AV rack or wall-plate installation.

Frequently Asked Questions

Q: What is the maximum extension distance supported by the USB2AAEXT25M?

A: The USB2AAEXT25M supports a maximum extension distance of 25 meters (approximately 82 feet) from the host USB port to the connected device, while maintaining the full 480 Mbps USB 2.0 Hi-Speed data rate.

Q: Does the USB2AAEXT25M require an external power source?

A: Yes. The active signal amplification circuitry requires power, supplied via a built-in AC adapter that accepts 100–240V AC input at 0.35A. Total system power consumption is 5 watts. A standard outlet at the host end is required.

Q: How much power does the USB2AAEXT25M supply to the connected USB device?

A: The cable outputs 5V DC at up to 1A (5 watts) to the remote USB device. This is sufficient for most USB 2.0 peripherals. Devices requiring more than 1A of bus power will need their own power supply.

Q: What is the warranty on the USB2AAEXT25M?

A: StarTech provides a 2-year manufacturer warranty on the USB2AAEXT25M.

Q: Is the USB2AAEXT25M compatible with USB 1.1 devices?

A: Yes. USB 2.0 Hi-Speed is backward compatible with USB 1.1 Full Speed and Low Speed devices. Legacy USB peripherals will function normally through this cable.

Q: What are the operating temperature limits for the USB2AAEXT25M?

A: The USB2AAEXT25M is rated for operating temperatures of 0°C to 70°C (32°F to 158°F), suitable for standard commercial and office environments. It is not rated for outdoor use or uncontrolled industrial temperature ranges.

Eden Phillips

The spec that matters most here is the 25-meter active run at full 480 Mbps — that's what separates the USB2AAEXT25M from a cheap passive extension that degrades signal after 3–4 meters and produces intermittent device drop-outs. In practice, I've seen passive USB extensions cause more unexplained peripheral failures in deployed systems than almost any other single component decision. This cable eliminates that variable by actively reconditionning the signal at the transmitter end.

Technical Highlights:

• 480 Mbps over 25 meters: Full USB 2.0 Hi-Speed throughput maintained across the entire run — not a degraded signal that limps along. For USB cameras or audio capture devices where bandwidth consistency matters, this is the spec to verify before committing to a cable.
• Universal 100–240V AC input: The built-in adapter removes voltage compatibility as a concern for international deployments or mixed-voltage facilities. At 0.35A draw and 5W total consumption, it has negligible impact on branch circuit loading.
• 5V / 1A device power output: Eliminates the need for a separate power supply at the device end for most standard USB 2.0 peripherals. Confirm your device's power draw before assuming — any device pulling more than 1A will need independent power.

Deployment Considerations:

• The 86.5 × 22 × 12mm transmitter housing is purpose-sized for flush mounting behind panels or into shallow AV enclosures — plan your cable routing so the AC adapter cord reaches a nearby outlet without running exposed across a floor.
• Operating temperature tops out at 70°C — fine for conditioned spaces, but don't install this in an unventilated AV closet where ambient temperatures can spike above that threshold during summer months.

The USB2AAEXT25M fits cleanly in digital signage installations, fixed USB camera deployments in conference rooms or retail environments, and AV integration projects where host and peripheral are permanently separated by more than a desk-length run. It's the right tool when you need a single, reliable USB extension without assembling a chain of hubs and passive cables.
