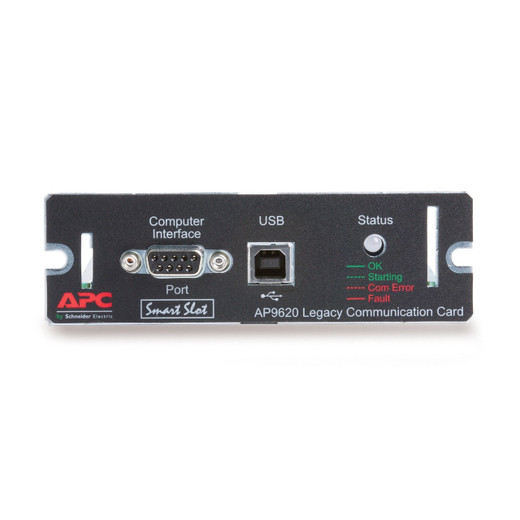

APC by Schneider Electric AP9620 Legacy Communications SmartSlot Card

Overview

The AP9620 is a protocol translation module designed for SmartSlot-equipped APC by Schneider Electric UPS systems that need to bridge legacy management options to the UPS-Link communication standard. If you are maintaining or extending an existing APC UPS infrastructure where older network management cards or accessory modules rely on legacy serial protocols, the AP9620 is the interface layer that makes those devices speak the same language as the host UPS — without replacing the entire management stack.

At 1.50" × 4.75" × 4.50", the AP9620 installs directly into the SmartSlot bay of compatible APC by Schneider Electric UPS units. No external enclosure or additional hardware is required beyond the host UPS chassis itself. This compact form factor means the card does not compete for rack space or require separate mounting.

Key Features

• Protocol Translation to UPS-Link: Converts legacy APC management communications to the UPS-Link standard, allowing older UPS network management accessories to remain in service rather than being retired prematurely — a meaningful cost consideration when managing a large installed base.
• SmartSlot Form Factor: Drops directly into any APC SmartSlot-equipped UPS, the same bay used across a wide range of APC Smart-UPS and Symmetra platforms. No tools beyond standard installation procedure are required.
• Compact Module Dimensions: At 1.50" H × 4.75" W × 4.50" D, the AP9620 fits within the SmartSlot envelope without modifying the UPS chassis or requiring additional rack units.
• Legacy Infrastructure Continuity: Extends the usable life of existing APC management accessories when the UPS platform has been updated or upgraded, deferring replacement costs on downstream power protection management hardware.

Integration and Compatibility

The AP9620 is compatible with APC SmartSlot-equipped UPS platforms. Verify that your specific UPS model includes a SmartSlot bay and that the legacy management option you intend to bridge is explicitly listed as compatible with the AP9620 in APC documentation before ordering. Confirm UPS firmware version requirements with APC technical resources, as protocol translation modules of this type can be sensitive to host firmware revisions. For broader APC UPS accessories and management options, review the full SmartSlot accessory lineup for your platform.

Frequently Asked Questions

Q: What UPS platforms is the AP9620 compatible with?

A: The AP9620 is designed for APC SmartSlot-equipped UPS systems. Verify your specific UPS model has a SmartSlot bay and confirm compatibility in APC documentation before purchasing.

Q: What does the AP9620 actually do?

A: It translates legacy APC UPS management communications to the UPS-Link protocol standard, allowing older management accessories to continue operating with updated APC UPS platforms.

Q: Does the AP9620 require any external power supply?

A: The AP9620 installs into the UPS SmartSlot bay. Power draw specifics are not confirmed in available evidence — consult APC documentation for your specific UPS model to confirm slot power budgets.

Q: What are the physical dimensions of the AP9620?

A: The card measures 1.50 inches high by 4.75 inches wide by 4.50 inches deep, fitting the standard SmartSlot form factor.

James Everett

The AP9620 is a niche but specific tool: if you are running SmartSlot-equipped APC UPS hardware and need to keep legacy UPS-Link management accessories online, this card closes the protocol gap without a forklift upgrade. The module's 4.50" depth and SmartSlot form factor mean it installs in minutes into any compatible bay.

Technical Highlights:

• SmartSlot Form Factor: Direct-install into existing APC UPS SmartSlot bays — no rack modifications, no separate power wiring, no additional chassis space consumed.
• Protocol Translation Function: The sole purpose of the AP9620 is bridging legacy management communication to UPS-Link; it is not a network management card itself and does not add SNMP or IP connectivity on its own.
• Module Dimensions (1.50" × 4.75" × 4.50"): Fits within the SmartSlot envelope, so it will not conflict with adjacent cards or chassis clearances in high-density UPS cabinets.

Deployment Considerations:

• Confirm your UPS model's SmartSlot bay count before ordering — some APC UPS chassis have a single SmartSlot, meaning the AP9620 will occupy the only available management expansion slot.
• Evidence for this SKU is limited: supported legacy accessory list, firmware compatibility matrix, and power draw are not confirmed in the available data — pull the APC compatibility matrix for your exact UPS model before committing to this part.

Best fit for data center and facilities teams managing an APC UPS installed base where legacy management accessories must remain operational during a phased UPS refresh — not a day-one install for new deployments.
