Vertiv PB-GXT5X-72VBAT External Battery Module for Liebert GXT5 UPS

Overview

The PB-GXT5X-72VBAT is a 72V external battery module engineered specifically for the Liebert GXT5 UPS platform. Rather than forcing a complete UPS swap when runtime demands grow, this battery module lets you extend backup duration in-place — a practical advantage in data closets, network rooms, and critical-infrastructure edge deployments where downtime for hardware swaps is expensive. The module integrates directly with the GXT5's battery management intelligence, so you're not adding dumb capacity: you're adding monitored, predictively managed runtime extension.

If you're sizing runtime for a UPS power protection deployment or evaluating the broader Vertiv power and thermal management line, this module is the correct expansion path for GXT5 installations requiring more than the internal battery provides.

Key Features

• VRLA Battery Chemistry (2 × 3 × 12V × 9.0Ah): Six valve-regulated, non-spillable lead-acid cells configured at 72V nominal deliver sealed, maintenance-free operation. Non-spillable chemistry means the module can be installed in equipment racks without hazmat concerns — no ventilation exceptions required for standard commercial spaces.
• Intelligent Battery Health Monitoring: The GXT5 UPS communicates with this module to provide battery health status and replacement date prediction. Instead of discovering a failed battery during an actual outage, you get advance warning — reducing the risk of an unplanned runtime failure during a power event.
• Auto-Detection of External Battery Cabinets: The GXT5 host UPS automatically identifies this module when connected. No manual capacity configuration or firmware programming is required — the UPS adjusts its runtime estimate and charge management accordingly upon detection.
• UL 1778 4th Edition and CSA 22.2 No. 107.1 Listed: Both UL and CSA certifications confirm the module meets North American safety standards for UPS equipment — a requirement for most commercial building permit and insurance contexts, and a mandatory checkbox for enterprise IT procurement.
• Operating Temperature Range +32°F to +104°F (0°C to 40°C): Standard commercial ambient envelope covers server rooms, network closets, and lightly conditioned edge spaces. If the installation environment regularly exceeds 40°C, plan for active cooling — elevated temperatures accelerate VRLA aging and will shorten the battery service interval.
• Designed for the GXT5-3000LVRT2UXL Platform: Purpose-built compatibility means the battery module's voltage, communication interface, and physical form factor are validated against the host UPS — not a generic fit requiring field adaptation or workaround wiring.

Integration and Compatibility

The PB-GXT5X-72VBAT (often searched as PB GXT5X 72VBAT) is validated for use with the Liebert GXT5-3000LVRT2UXL UPS. The auto-detection interface means the host UPS handles runtime recalculation and charge management automatically on connection — there is no separate battery management module or configuration file required. If you're running multiple GXT5 units across a distributed network infrastructure deployment, verify the specific GXT5 variant against Vertiv's compatibility matrix before ordering — the PB-GXT5X- prefix is GXT5-family specific and is not interchangeable across older GXT4 or GXT3 UPS generations.

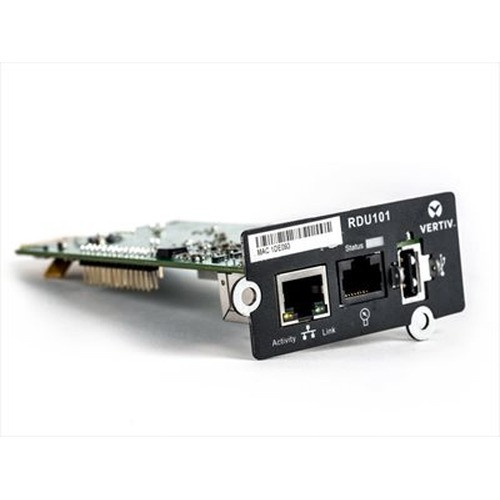

For environments running Vertiv's Liebert IntelliSlot monitoring cards or SNMP-based power management, the battery health data surfaced by the GXT5 UPS (including replacement date prediction) is accessible through those same management interfaces — consolidating UPS and battery visibility into your existing power management workflow.

Frequently Asked Questions

Q: Which UPS models is the PB-GXT5X-72VBAT compatible with?

A: The PB-GXT5X-72VBAT is validated for use with the Liebert GXT5-3000LVRT2UXL UPS. It is part of the GXT5 battery expansion family and is not cross-compatible with GXT4 or earlier Liebert UPS platforms.

Q: What type of batteries does the PB-GXT5X-72VBAT use?

A: It uses valve-regulated, non-spillable lead-acid (VRLA) batteries configured as 2 × 3 × 12V × 9.0Ah cells — providing a 72V nominal string. The sealed, non-spillable design requires no special ventilation in standard commercial rack environments.

Q: Does the GXT5 UPS automatically recognize the PB-GXT5X-72VBAT when connected?

A: Yes. The module supports auto-detection of external battery cabinets, so the host GXT5 UPS automatically identifies it upon connection and adjusts runtime calculations and charge management without manual configuration.

Q: Does the PB-GXT5X-72VBAT support battery health monitoring?

A: Yes. When paired with the Liebert GXT5 UPS, the system provides battery health status and replacement date prediction — giving advance warning before a battery reaches end of service life rather than discovering failure during an actual outage.

Q: What safety certifications does the PB-GXT5X-72VBAT carry?

A: The module is listed to UL 1778 4th Edition and CSA 22.2 No. 107.1 — the applicable North American standards for UPS equipment. Both listings are required for most commercial building code and enterprise IT procurement compliance.

Q: What is the operating temperature range for the PB-GXT5X-72VBAT?

A: The rated operating range is +32°F to +104°F (0°C to 40°C). Environments consistently above 40°C will accelerate VRLA battery aging and reduce service life — ensure adequate ambient cooling in the installation space.

James Everett

The PB-GXT5X-72VBAT closes a specific gap that comes up frequently in GXT5 installations: the internal battery runtime is adequate for graceful shutdown on small loads, but the moment you're protecting a heavier server stack or need 15–20 minutes of ride-through for a generator to stabilize, you need external capacity. This module delivers exactly that — six 12V/9.0Ah VRLA cells in a 72V string, with full integration into the GXT5's onboard battery management rather than just adding dumb amp-hours.

Technical Highlights:

• VRLA Cell Configuration (2 × 3 × 12V × 9.0Ah): The non-spillable sealed design is what makes this practical for standard commercial rack rooms — no ventilation variance, no special enclosure requirements under typical building codes.
• Auto-Detection Interface: Connect it and the GXT5 host recognizes the additional capacity automatically, recalculates runtime, and adjusts charge management. No configuration file, no manual capacity entry in the UPS menu.
• Predictive Battery Health Reporting: The GXT5 surfaces replacement date predictions for this module — which changes the maintenance model from reactive (battery fails during an event) to scheduled (swap it before it degrades below useful runtime).

Deployment Considerations:

• Validate the specific GXT5 host SKU before ordering. The PB-GXT5X-72VBAT is confirmed for the GXT5-3000LVRT2UXL — other GXT5 variants may use a different battery expansion module; check Vertiv's compatibility matrix first.
• Keep ambient temperature at or below 40°C at the installation point. VRLA chemistry is temperature-sensitive — every 10°C above the 25°C design center roughly halves battery service life, compressing your replacement interval significantly.

This module is the right call for GXT5-3000LVRT2UXL deployments in network closets or edge compute rooms where runtime extension is needed without adding a second UPS to the rack footprint — and where predictive battery management matters more than raw capacity.
