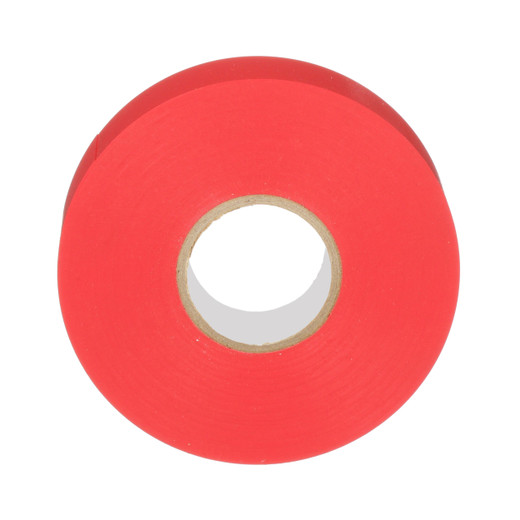

Panduit ST35-075-66RD 600V PVC Electrical Tape Red

Panduit ST35-075-66RD StrongHold™ Professional Grade PVC Electrical Tape

The Panduit ST35-075-66RD StrongHold™ electrical tape delivers professional-grade insulation and jacketing performance for installations rated up to 600 volts and 80°C (176°F). This pressure-sensitive vinyl tape measures 0.75 inches wide by 66 feet long with a 0.007-inch thickness, providing excellent elasticity and conformability for splicing, phase identification, and protective jacketing applications. Red color supports phase conductor marking in commercial and industrial electrical systems, while UL 510 and CSA C 22.2 No 197 certifications ensure code-compliant installations across North America.

Key Features

• 600V primary insulation rating for motor leads, branch circuits, and splice applications up to 80°C (176°F)
• Professional-grade PVC construction with excellent elasticity and tensile strength for durable, conformable wraps
• Pressure-sensitive adhesive system bonds reliably to cables, conduit, and jacketing materials without separation
• UL 510 listed and CSA C 22.2 No 197 certified for code-compliant electrical installations
• Red color provides clear phase identification in three-phase systems and multi-circuit panels
• ASTM D-3005 Type 1 and EN 60454-3-1 Type 11 compliance for international electrical standards
• RoHS 2011/65/EU compliant formulation meets European environmental directives
• 0.75 inch × 66 foot × 0.007 inch dimensions suit standard hand-wrapping and field splicing tasks
• Individual plastic puck packaging protects tape from contamination and moisture during storage

StrongHold ST35-075-66RD tape uses a premium PVC backing engineered for the mechanical and electrical stresses of field installations. The material exhibits high dielectric strength to prevent voltage breakdown during normal operation and fault conditions, while the pressure-sensitive rubber-resin adhesive system creates immediate bonds to clean cable jackets, bare copper, and existing insulation layers. Elongation properties allow the tape to stretch and conform around irregular splice geometries, cable bundling transitions, and strain relief boots without tearing or wrinkling. Operating temperature range extends from -18°C to 80°C (0°F to 176°F), covering HVAC equipment rooms, outdoor service entrances, and temperature-controlled IT spaces. The 0.007-inch backing thickness strikes a balance between mechanical protection and bulk—thick enough to provide cut-through resistance and jacketing integrity, thin enough to keep wrapped splice profiles compact for conduit pulls and panel terminations.

Electrical contractors rely on this tape for motor lead terminations in HVAC units, pump stations, and conveyor drives where 600V three-phase power requires color-coded phase identification and splice insulation. Industrial MRO teams use it to jacket damaged cable sections, reinforce strain relief points, and mark circuit conductors in control panels and machine wiring. Data center and telecom installers deploy red tape to differentiate power feeds from low-voltage cabling, marking AC circuits that run parallel to network trunk lines. The 66-foot roll length provides enough material for multiple splices or several jacketing repairs without frequent roll changes, while the 0.75-inch width covers typical 12 AWG through 4 AWG conductor insulation diameters with overlapping half-lapped wraps. Individual plastic puck packaging prevents dust and debris contamination in tool bags and mobile service carts, and the red color stands out visually during troubleshooting and maintenance inspections—critical for rapid phase identification in energized panels.

ST35-075-66RD meets UL 510 flame and electrical performance standards for insulating tape rated up to 600 volts, and carries CSA C 22.2 No 197 certification for Canadian electrical code compliance. The tape complies with ASTM D-3005 Type 1 requirements for pressure-sensitive electrical tape in North American applications and satisfies EN 60454-3-1 Type 11 specifications for international projects governed by IEC standards. RoHS 2011/65/EU compliance ensures the formulation contains no restricted substances, supporting installations in European Union markets and projects with environmental procurement mandates. Each roll ships in an individual protective plastic puck; cartons contain 20 rolls for stock replenishment. Panduit StrongHold professional-grade electrical tape provides the voltage rating, temperature performance, and standards compliance that integrators need for code-compliant power distribution and control circuit installations.
