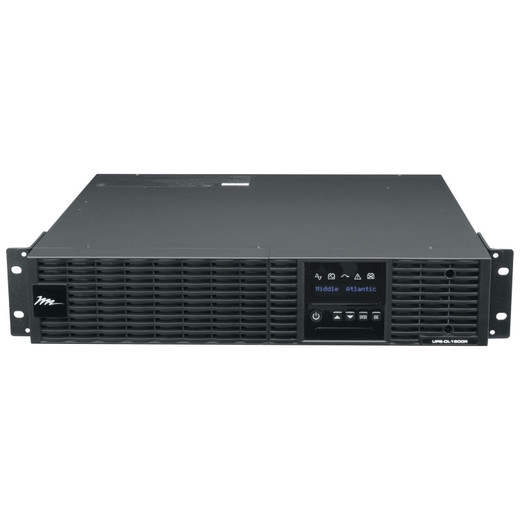

Middle Atlantic UPS-OL1500R Premium Online Double-Conversion Rack UPS
Overview
The Middle Atlantic UPS-OL1500R is a 1500VA / 1350W online double-conversion UPS built for 2RU rack deployment in security control rooms, AV infrastructure racks, and network closets where clean, uninterrupted power is non-negotiable. Unlike standby or line-interactive designs that switch to battery only after detecting a power event, the UPS-OL1500R runs all connected loads through its inverter continuously — meaning there is zero transfer time on a utility outage. If you're protecting NVRs, managed switches, or access control panels that cannot tolerate even a 4–8ms gap, this topology matters. Explore the full Middle Atlantic power and rack product line for complementary infrastructure components.
Key Features
- Online Double-Conversion Topology: The inverter is always active, so connected equipment never runs on raw utility power. Voltage spikes, sags, and frequency variations are filtered out before they reach your gear. For surveillance or access control infrastructure, this eliminates the nuisance reboot cycle that standby UPS units can introduce during brownouts.
- 1500VA / 1350W Capacity: At a 0.9 power factor, this unit delivers its rated wattage without derating — useful when loading a mix of switching power supplies that can pull close to rated draw. Enough headroom for a mid-density NVR, a PoE switch, and associated edge devices without pushing past 80% load, which is the standard design target for rack-mount UPS systems.
- 8 NEMA 5-15R Outlets: Eight receptacles on a 15A NEMA 5-15P input give you enough distribution for a populated 2RU footprint without external PDU overhead on most installations. All outlets are protected — there's no split between battery-backed and surge-only positions to track.
- 15A Input / 120VAC Output: Standard 15A circuit compatibility means this drops into virtually any US rack environment without an electrician visit. The 10 ft (3.1 m) input cord reaches a wall receptacle from most rack positions without a cord extension.
- 2RU Form Factor — 19 in × 3.46 in × 15.57 in: Fits any standard 19-inch rack with 2U of open space. Maximum mounting depth is 36.2 in, minimum 20.7 in — verify your rack's usable depth before ordering. At 47.7 lbs (21.6 kg), this is a two-person lift for overhead rail installations; plan accordingly. For a rack selection guide, match the mounting depth range to your enclosure spec.
- Network-Enabled (No Card Included): The unit supports network management via an optional network card (not included in this SKU). If remote monitoring or graceful OS shutdown on power events is a requirement, budget for the add-on card — the slot is present, the card is not.
- RoHS Compliance: Materials meet RoHS requirements, which satisfies most commercial and government procurement checklists that require restricted-substance compliance. Note: this unit is not TAA compliant, so it does not qualify for GSA Schedule or federal procurement programs requiring TAA-origin goods.
- Operating Temperature 32°–104°F (0°–40°C): Standard commercial operating range. Fine for conditioned server rooms and equipment closets; do not deploy in unconditioned outdoor enclosures or spaces that routinely exceed 40°C — battery life degrades rapidly above the rated range.
Integration & Compatibility
The UPS-OL1500R integrates into standard 19-inch rack infrastructure with four mounting points. The NEMA 5-15P input plugs directly into any standard 15A US outlet. Network management requires an optional network card (not included); without it, local LCD or USB connectivity may be the only monitoring path — verify the management interface options for your network card selection before assuming SNMP trap support is ready out of the box. This unit pairs well with Middle Atlantic rack enclosures and is a logical companion to managed PoE switches and NVR deployments where runtime-during-outage requirements drive UPS sizing. For multi-device deployments, consider pairing with a rack-mount PDU downstream of the UPS output to extend receptacle count without adding another circuit.
Frequently Asked Questions
Q: What is the difference between the online double-conversion topology in the UPS-OL1500R and a standard line-interactive UPS?
A: A line-interactive UPS passes utility power directly to connected loads and switches to battery only when it detects an outage — introducing a transfer time of 4–8ms or more. The UPS-OL1500R uses online double-conversion, meaning the inverter is always active and all loads always run from converted power. Transfer time on utility loss is effectively zero, and the inverter also filters out all upstream voltage irregularities continuously.
Q: Is the UPS-OL1500R TAA compliant for government or GSA procurement?
A: No. The UPS-OL1500R is explicitly listed as TAA non-compliant. It does not qualify for GSA Schedule purchases or federal contracts requiring TAA-origin products. It does carry RoHS compliance.
Q: Does the UPS-OL1500R include a network management card?
A: No. The unit is network-enabled — meaning the slot and hardware support exist — but the network card is not included with this SKU. Remote SNMP monitoring and graceful shutdown functionality require purchasing a compatible network card separately.
Q: What is the input plug type and circuit requirement for the UPS-OL1500R?
A: The UPS-OL1500R uses a NEMA 5-15P input plug on a 10 ft (3.1 m) cord and requires a standard 15A, 120VAC circuit. No special wiring or dedicated circuit beyond a standard US 15A outlet is needed.
Q: How much does the UPS-OL1500R weigh, and what are its rack dimensions?
A: The unit weighs 47.7 lbs (21.6 kg) and occupies 2RU (3.46 in tall) in a standard 19-inch rack. Depth is 15.57 in. Minimum mounting depth is 20.7 in; maximum is 36.2 in (92 cm). Shipping weight is 53 lbs (24 kg).
Q: What operating temperature range is the UPS-OL1500R rated for?
A: The UPS-OL1500R is rated for 32°–104°F (0°–40°C) ambient operating temperature. It is designed for conditioned indoor environments. Sustained operation above 40°C will shorten battery life and is outside the manufacturer's rated range.
The spec that drives my recommendation of the UPS-OL1500R for critical infrastructure deployments is the online double-conversion topology combined with the 1350W real-power output at a clean 0.9 power factor. Most integrators size UPS units by VA and get burned when the watt rating is materially lower — here, 1500VA × 0.9 = 1350W, which is what you can actually load. That's honest headroom for a populated security rack.
Technical Highlights:
- Online Double-Conversion: Zero transfer time on utility loss — no gap that causes NVR hard resets or access control panel reboots. The inverter is always in the signal path, which also means you're continuously filtering sags, spikes, and frequency drift before they reach any connected device.
- 1350W Real Power / 8 NEMA 5-15R Outlets: Eight protected outlets on a single 15A input circuit handles a mid-density rack without a downstream PDU on most installs. Design to 80% load max — that's 1080W usable — which comfortably covers a 16-channel NVR, a managed PoE switch, and a couple of auxiliary devices.
- 2RU / 15.57 in Depth: The 15.57 in body depth fits most standard rack enclosures. The mounting depth range of 20.7–36.2 in covers the majority of Middle Atlantic and competitive rack enclosures — but always verify the usable rail depth in your specific enclosure before the unit ships.
Deployment Considerations:
- At 47.7 lbs, this is not a solo lift for overhead rail positions — assign two people for any installation above waist height. Factor this into your site survey if the target rack is already densely populated.
- Network management (SNMP traps, graceful OS shutdown on power events) requires a separately purchased network card. The slot is present on the UPS-OL1500R, but do not assume remote monitoring is ready without confirming the card is in the bill of materials. Leaving this out of a proposal is the most common oversight I see on integrated security rack builds.
For a security control room or network operations rack running 24/7 NVR recording, managed switching, and access control — where a 6ms transfer-time gap would trigger a hard reset and a gap in footage — the UPS-OL1500R is the correct specification. It's not the right fit for a simple workstation protection role where a line-interactive unit at half the price would suffice.
