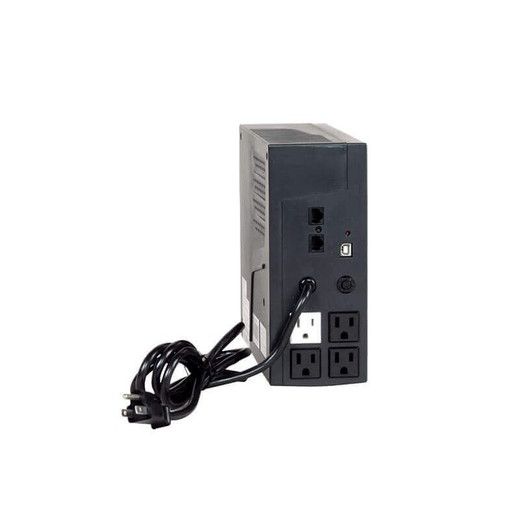

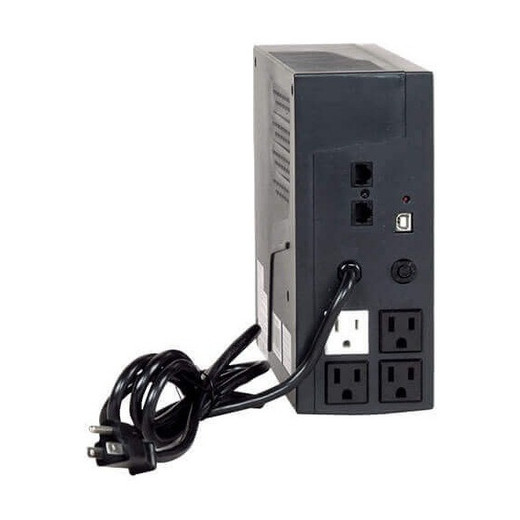

Vertiv PSP500MT3-230U 500VA/300W Standby Mini-Tower UPS
Overview
The Vertiv PSP500MT3-230U is a 500VA/300W standby UPS in a compact mini-tower form factor, built for cost-sensitive IT and security deployments where reliable short-term battery backup and surge protection matter more than extended runtime. It targets workstations, small routers, point-of-sale terminals, and the kind of sensitive electronics common in small commercial security installations — the gear you can't afford to lose data from during a brief power interruption. Operating on 230VAC input, it fits European and international installations out of the box.
This unit belongs to Vertiv's power protection line, which spans the full range from small standby UPS devices like this through enterprise-grade UPS and thermal management systems. For buyers evaluating UPS and power protection options, the PSP500MT3-230U sits firmly in the entry-level standby tier — not a line-interactive or online double-conversion unit, but well-matched to loads where momentary switchover delay is acceptable.
Key Features
- 500VA/300W Capacity: The 300W true power ceiling is what matters when sizing. A typical NVR with a handful of drives, or a workstation plus monitor, sits comfortably inside that envelope. Overloading a UPS is a common install mistake — verify your connected load in watts, not just VA, before commissioning.
- Up to 5 Minutes Runtime at Full Load: Five minutes is enough to execute a clean shutdown script or ride out a brief utility glitch, which covers the vast majority of real-world outages. If your application demands 15–30 minutes of sustained runtime, this unit isn't the right fit — look at higher-capacity options in the UPS category.
- Four IEC 60320 Output Receptacles: You get 1x IEC 60320 C13 battery-backed outlet plus 3x IEC 60320 surge-protected outlets — total of four connection points. The separation matters: put your critical device (NVR, router, server) on the C13 battery-backed port, and use the surge-only ports for peripherals like monitors or switches that don't need runtime but still need spike protection.
- Data-Line RJ-45 Surge Protection: Network gear is frequently damaged not through the power lines but through the data lines during a surge event. The built-in RJ-45 surge port threads your network cable through a protected path, which is a meaningful addition for any unit sitting in-line on a surveillance or IT network.
- USB Communication Port: The USB port enables connection to a host computer for UPS monitoring and automated graceful shutdown — so when the UPS battery reaches a low state, the connected system can save state and power down cleanly before the battery exhausts, rather than dropping hard. This is the difference between a recoverable situation and a corrupted database or filesystem.
- Mini-Tower Form Factor (8.46 × 3.43 × 9.88 in, 12.04 lbs): The footprint is small enough to sit beside a desktop workstation or on a shelf in a small equipment closet. At just over 12 lbs, it's light enough to reposition during installation without mechanical lifting aids. It does not rack-mount — if you need a rack-mounted solution, plan accordingly.
- 230VAC Input: Designed for 230V mains — appropriate for international markets, UK, EU, and other 230V regions. This is not a dual-voltage unit; verify your facility's mains voltage before ordering.
- Two-Year Manufacturer Warranty with Extended Options: The base warranty is two years. Optional 1-year and 3-year extended warranties are available, which matters for deployments where long-term support contracts are part of the procurement requirement.
Integration and Compatibility
The PSP500MT3-230U connects to any host system with a USB port for monitoring and shutdown management. The included shutdown software handles automated graceful shutdown sequences — pair it with a Windows or Linux host running your VMS, NVR software, or POS application. The IEC 60320 C13 output is compatible with standard IEC C14 power cords used on most rack and desktop equipment. For integrators building out network infrastructure or surveillance head-end closets on 230V circuits, this unit fills the small-device power protection role without requiring a full-sized tower or rack UPS. It is not a line-interactive or online UPS — the standby topology means a brief transfer time (typically a few milliseconds) when switching to battery, which is acceptable for most IT and security equipment but should be verified against the equipment's own hold-up time specification if you are running anything sensitive to even brief transfer gaps.
Frequently Asked Questions
Q: What is the difference between the battery-backed outlet and the surge-only outlets on the PSP500MT3-230U?
A: The PSP500MT3-230U provides 1x IEC 60320 C13 outlet that delivers both battery backup and surge protection, and 3x IEC 60320 outlets that provide surge protection only — no battery backup. Connect your most critical device (NVR, server, router) to the C13 battery-backed port. The surge-only ports protect peripherals from voltage spikes but will not keep them powered during an outage.
Q: How long will the PSP500MT3-230U keep my equipment running during a power outage?
A: At full 300W load, runtime is up to 5 minutes. Lighter loads extend runtime proportionally. This unit is designed for graceful shutdown protection, not extended runtime — if you need 15 minutes or more, a higher-capacity UPS is required.
Q: Is the PSP500MT3-230U compatible with 120V power systems?
A: No. The PSP500MT3-230U is designed for 230VAC input only. It is not a dual-voltage unit. Verify your facility operates on 230V mains before ordering.
Q: What does the USB port on the PSP500MT3-230U do?
A: The USB communication port connects the UPS to a host computer running the included shutdown software. This enables automated graceful shutdown — when battery reaches a low threshold, the software signals the OS to save state and power down cleanly, preventing data corruption from a hard cutoff.
Q: What warranty comes with the PSP500MT3-230U?
A: The PSP500MT3-230U includes a standard two-year manufacturer warranty. Optional 1-year and 3-year extended warranty upgrades are also available.
Q: Can the PSP500MT3-230U be rack-mounted?
A: No. The PSP500MT3-230U is a mini-tower form factor unit intended for desktop or shelf placement. It does not include rack-mount hardware and is not designed for rack installation.
The PSP500MT3-230U hits a specific, narrow brief: 300W standby protection with a clean USB shutdown interface on a 230V circuit. I deploy this unit where the load is light and the priority is a controlled shutdown rather than extended runtime — think a small NVR or edge router in an international branch office or retail security closet running on 230V mains. It's not a unit you buy for marathon runtime; the five-minute ceiling at full load tells you everything about its intended role.
Technical Highlights:
- Outlet Topology (1x C13 Battery + 3x Surge-Only): The split between one battery-backed C13 and three surge-only IEC ports forces disciplined load assignment at install time — your NVR or VMS server goes on the C13, everything else on surge-only. That physical constraint actually prevents the common mistake of overloading the battery circuit.
- USB + Shutdown Software: Automated graceful shutdown via USB is the feature that separates this from a basic surge strip with a battery. For a VMS host or NVR with an active database, the difference between a clean shutdown and a hard cutoff can mean hours of recovery work. Wire the USB to whatever host matters most.
- Mini-Tower at 12.04 lbs, 8.46 × 3.43 × 9.88 in: The physical footprint fits alongside a desktop NVR or on a standard equipment shelf without any rack hardware. It's genuinely field-repositionable by one person, which matters in tight closet installs where you're working around existing cable runs.
Deployment Considerations:
- Verify connected load in watts — the 300W ceiling is firm. A small NVR plus a PoE switch can approach that limit quickly; add up nameplate wattage before commissioning, not after.
- This is a standby (offline) topology, not line-interactive. There is a brief transfer time when switching to battery. Most IT and security equipment handles this without issue, but confirm your equipment's hold-up time if you are running anything that is sensitive to even a few milliseconds of transfer gap.
Best fit: a small 230V international office or retail security deployment where the primary requirement is a clean, software-managed shutdown of a single critical device — NVR, edge server, or POS terminal — and budget does not justify a larger line-interactive unit. The PSP500MT3-230U (often searched as PSP500MT3 230U) does that specific job reliably without unnecessary complexity.
