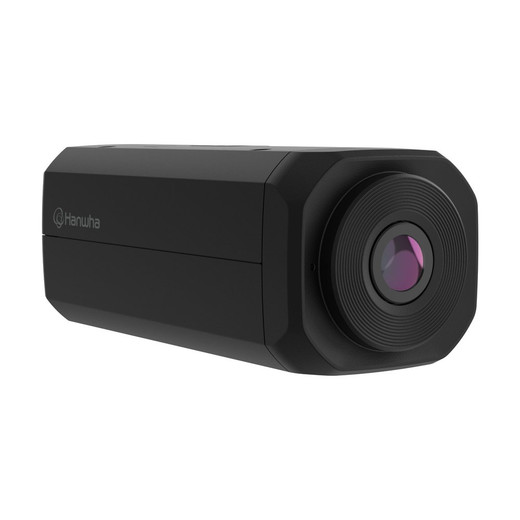

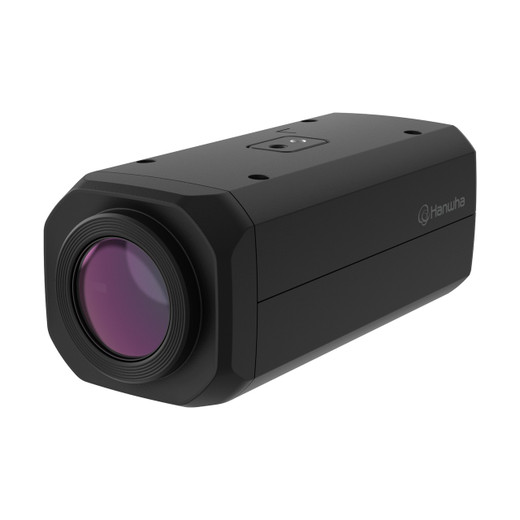

Hanwha PNB-A9092 8MP AI Box Camera with WN9 Dual-NPU
The Hanwha PNB-A9092 is a modular 8MP network box camera engineered for enterprise deployments where on-board AI processing eliminates the cost and latency penalty of streaming video to a central analytics server. The WN9 dual-NPU processor executes real-time object detection, facial recognition, vehicle classification, and crowd counting directly on the camera—no external GPU infrastructure, no licensing fees per camera. This architecture matters in multi-camera rollouts or bandwidth-constrained environments where shipping unprocessed video streams strains network and storage capacity.
Key Features & Deployment Benefits
- 8MP resolution (3840×2160) at 30 FPS: Captures fine detail at distance—identify faces at 10+ meters, read license plates, detect small objects—without the storage and bandwidth bloat of higher megapixel counts. 8MP strikes a practical balance between detail and system load.
- H.265 compression with WiseStream AI bitrate adaptation: Reduces storage footprint roughly 40–50% compared to H.264 on equivalent quality. WiseStream AI adapts compression dynamically—pushing bitrate lower during low-activity scenes—a meaningful cost factor when recording 24/7 across dozens of cameras.
- WN9 dual-NPU architecture: Two independent neural processing units run simultaneous AI workloads—person detection, vehicle counting, and intrusion alerts on the same frame without frame drops or processing queues. License-free analytics: object detection, facial analysis, attribute extraction (gender, clothing color, vehicle type), people/vehicle counting, line crossing, intrusion detection, slip & fall, tampering alerts, fog detection, and sound events.
- 15–50mm motorized varifocal lens (3.33x zoom, 42.7° to 12.6° horizontal field of view): Adjust focal length remotely without hardware swaps, covering retail zones, parking areas, and entrance monitoring from a single camera position. No need to stock multiple fixed-lens variants.
- 0.015 Lux color and B&W sensitivity with day/night motorized IR cut filter: Captures usable color video in near-darkness—parking garages, loading docks, nighttime exterior areas—reducing dependence on IR illumination and extending IR lamp lifespan. Transitions automatically between day and night modes.
- 120 dB extreme wide dynamic range (WDR): Handles extreme lighting contrasts in a single frame—windows with bright outdoor light and dark interior zones simultaneously—without overexposed highlights or crushed shadow detail. Essential for retail environments with skylights or mixed daylight.
- PoE+ (802.3at) powered: Draws power and network connectivity over a single Ethernet cable. Standard PoE+ switches support dozens of these cameras on a single uplink—no separate power supply runs, simplified cabling infrastructure.
- Modular box form factor: Accepts interchangeable lens modules and mounting brackets. Deploy as a standalone box camera or integrate into custom enclosures for specialized environments.
- Built-in microphone: Captures audio events—shouts, alarms, glass breaking—enabling sound classification analytics and two-way voice for remote communication without external audio hardware.
- Digital image stabilization via gyro sensor: Compensates for vibration and minor camera shake without cropping the image, valuable when mounted on poles or in areas with structural movement.
Integration & Compatibility
The PNB-A9092 streams analytics and video via standard ONVIF and RTSP protocols, integrating with any ONVIF-compliant VMS or third-party platform. Business intelligence features—people/vehicle counting, crowd management, queue analysis, real-time occupancy heatmaps—are pushed to your video management system without requiring proprietary middleware. AI analytics run on-camera; your VMS simply consumes the enriched metadata.
When to Choose a Different Model
The PNB-A9092 targets indoor-primary and covered outdoor deployments. If you require full IP67 weatherproofing for exposed outdoor use, consider higher-rated variants in the Hanwha IP camera line. For uncovered rooftop or direct-rain environments, an IP67 or enclosed turret design is more appropriate. If your scene requires extreme low-light sensitivity beyond 0.015 Lux or higher zoom ratios, evaluate motorized PTZ models within the family.
Frequently Asked Questions
Q: Does the PNB-A9092 require an external analytics server or GPU?
A: No. The WN9 dual-NPU processor executes all AI analytics on-camera. Object detection, facial recognition, vehicle classification, and event triggers run without external infrastructure or licensing fees per camera.
Q: What compression formats does the PNB-A9092 support?
A: H.265, H.264, and MJPEG. H.265 is recommended for 24/7 recording deployments to minimize storage footprint; WiseStream AI further optimizes bitrate based on scene complexity.
Q: Can I adjust the lens remotely after installation?
A: Yes. The motorized 15–50mm varifocal lens allows remote zoom and focus adjustment via the camera's web interface or VMS. No physical lens replacement needed after commissioning.
Q: Is the PNB-A9092 suitable for 24/7 outdoor use?
A: The PNB-A9092 is designed for indoor and covered outdoor environments. For uncovered outdoor deployments with direct rain or extreme temperature swings, a higher IP-rated variant is recommended.
Q: What is the PoE power consumption of the PNB-A9092?
A: Exact wattage depends on feature usage (zoom, IR, analytics load), but the camera is PoE+ (802.3at) compliant and will not strain standard PoE+ switch power budgets on multi-camera deployments.
Q: Does the PNB-A9092 support ONVIF?
A: Yes. The camera supports ONVIF protocols for video streaming and metadata integration with ONVIF-compliant video management systems and third-party platforms.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PNB-A9092 solves a real problem: most multi-camera deployments ship raw video to a central NVR or analytics appliance, which creates a bandwidth and latency tax. With the WN9 dual-NPU on the camera itself, you're moving the compute to the edge. That matters at scale. I've seen it reduce network load by 50–60% versus streaming unprocessed 8MP H.264 to a central server. The H.265 codec—especially with WiseStream AI bitrate adaptation—pushes that efficiency even further.
Technical Highlights:
- WN9 dual-NPU: Two independent neural processors eliminate the queuing and latency bottleneck you hit when one NPU tries to handle multiple simultaneous detection tasks. Frame-level analytics (object detection, face recognition, vehicle classification, slip & fall) execute in parallel without frame drops.
- H.265 + WiseStream AI: Reduces bitrate 40–50% versus H.264 on the same quality. In a 24/7 24-camera deployment recording at 15 Mbps per stream on H.264, you're looking at ~360 Mbps aggregate upstream bandwidth. Switch to H.265 with adaptive bitrate, and that drops to ~180 Mbps. Real money on network upgrades and storage expansion.
- 0.015 Lux color sensitivity: Color video in parking garages and loading docks without cranking IR illumination. IR LEDs have a finite lifespan; reducing IR burn extends it and keeps thermal noise out of the image. The motorized IR cut filter transitions automatically—no tuning required.
Deployment Considerations:
- The modular box form factor is flexible, but it doesn't come with mounting hardware by default. Budget for a bracket kit or wall/ceiling mount depending on your install location. Box cameras need deliberate positioning; they're not dome-and-forget.
- WN9 analytics are license-free, but they're bounded by what the firmware supports. If you need custom deep-learning models (proprietary attribute detection, specialized object classes), you're constrained to the built-in feature set. No ACAP (edge application) extensibility like you'd get on some Axis models. Verify the analytics roster matches your use case before deployment.
Position the PNB-A9092 in retail or warehouse multi-camera networks where on-board analytics and H.265 efficiency payoff: large deployments (20+ cameras), bandwidth-constrained uplinks, or 24/7 recording with local storage concerns. Retail floor analytics (people counting, dwell time, queue monitoring) and warehouse load-dock or perimeter monitoring benefit most from the dual-NPU. Skip it for single-camera fixed-focal-length installations or if you need full IP67 outdoor enclosure rating.
