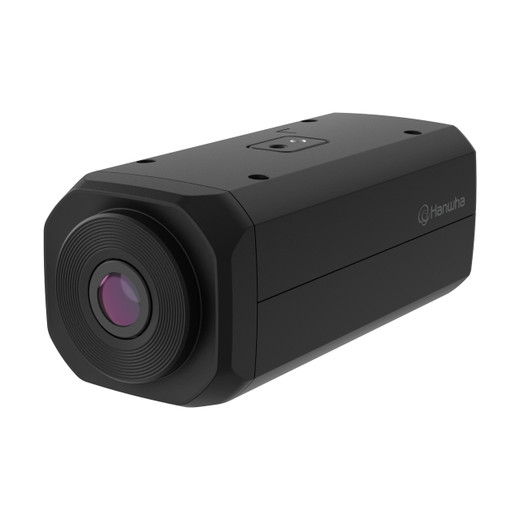

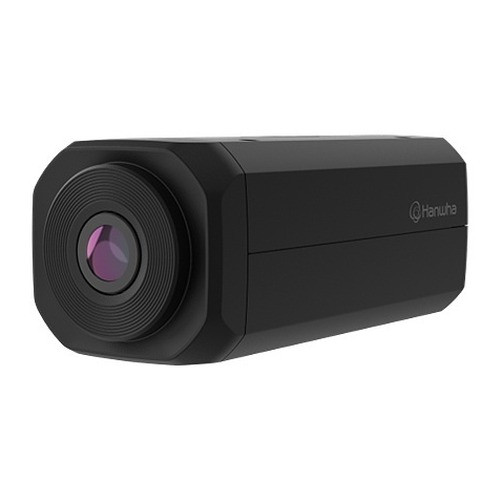

Hanwha PNB-A9082 8MP AI Box Network Camera
The Hanwha PNB-A9082 is a purpose-built 8MP box camera for indoor and semi-protected surveillance environments where local analytics processing and regulatory compliance matter. Built on Hanwha's WN9 AI platform, it delivers 3840 × 2160 resolution at 30 fps with native people, vehicle, and license plate detection—all executed on the camera itself rather than relayed to a central server. This edge-based approach reduces bandwidth overhead and keeps sensitive analytics data local, a critical advantage for organizations in regulated sectors or those seeking to minimize cloud dependency.
Key Features
- 8MP Resolution (3840 × 2160): Captures fine detail at full HD 30 fps, sufficient for facial identification and vehicle characterization in retail, office, and facility environments—overkill for perimeter-only coverage, but justified when staff or visitor identification is a requirement.
- Motorized 5.9–13.3 mm Varifocal Lens: Mechanical zoom lets you adjust field of view from 109° to 49° without removing the camera—useful when exact coverage area can't be determined at install time, though manual focus is still required and adds setup time compared to fixed lenses.
- extremeWDR (120 dB): Handles backlit scenes and high-contrast indoor lighting without washing out shadows or overexposing highlights. The 120 dB range means you can capture detail in a dark office corner and a bright window in the same frame—eliminates the need for a second camera in split-lighting scenarios.
- AI-Powered Detection (People, Face, Vehicle, License Plate): Runs natively on the camera with counting, heatmap, and queue analytics. No external GPU or analytics appliance required. Reduces false-positive alerts compared to basic motion detection, saving security staff alert fatigue on 24/7 monitoring.
- Dual microSD Card Slots (up to 2 × 1 TB): Local edge storage for continuous or event-triggered recording without dependency on network storage. Useful for environments with unreliable or restricted network access, and provides failsafe retention if NVR or cloud service goes offline.
- H.265, H.264, and MJPEG Compression with WiseStream: H.265 cuts bitrate roughly 40–50% versus H.264 at equivalent quality, meaning you can record more camera hours on the same microSD card or reduce bandwidth if feeding a central NVR over constrained links.
- PoE+ or 12 VDC Power: Draws sufficient current for the motorized lens and analytics—PoE+ (802.3at, ~90W budget) is standard, but 12 VDC option exists for legacy or isolated power architectures.
- 0.015 Lux Low-Light Sensitivity: Maintains color detail in very dim indoor spaces; switches to monochrome at extremely low illumination. Gyro-stabilized digital image stabilization compensates for vibration on unsecured mounts, reducing blur in warehouses or semi-outdoor areas with air movement.
- FIPS 140-3 Level 3 Secure Element: Cryptographic hardware ensures firmware integrity and encrypted data handling—mandatory for financial institutions, healthcare, and federal facilities. A compliance checkbox rather than a performance feature, but non-negotiable if your procurement policy demands it.
- Dynamic Privacy Masking: Blur or block specific zones in real time—required in some jurisdictions (EU GDPR, certain US states) when surveillance crosses into areas where occupants have reasonable privacy expectations.
- Selectable Audio Inputs (Mic-in, Line-in, Built-in): Adapt to existing audio infrastructure—internal mic for standalone deployments, line-in for integration with PA or intercom systems.
Integration and Compatibility
The PNB-A9082 supports standard IP camera protocols including ONVIF and connects via metal-shielded RJ-45 for PoE+ or 12 VDC power. USB access enables third-party system integration. Edge storage via dual microSD slots reduces reliance on central network video recorders for retention, though it integrates with major VMS platforms for unified management and analytics aggregation. Before deployment, confirm your IP camera buying guide covers your chosen NVR architecture and that your PoE switch or injector delivers sufficient power budget for the motorized lens and analytics processing.
When to Choose a Different Model
If outdoor weatherproofing is required (rain, salt spray, extreme cold), specify a higher IP rating variant with environmental housings. If license plate capture is secondary and budget is tight, consider a fixed-lens 4MP variant from the same family to reduce cost and power draw. If your environment is bright outdoor or requires 24/7 color night vision, prioritize a thermal or high-sensitivity low-light model. If you need pan-tilt-zoom capability, step up to a PTZ form factor.
Deployment Notes
Operating Environment: Rated for –10 °C to +55 °C, the PNB-A9082 suits temperature-controlled indoor spaces and semi-protected outdoor areas when housed in environmental enclosures. Extended cold or heat exposure will degrade performance; verify your facility's seasonal extremes against these limits before committing.
Frequently Asked Questions
Q: Does the PNB-A9082 support ONVIF?
A: Yes. The camera implements ONVIF Profile S and other standard IP camera protocols, allowing integration with any ONVIF-compliant VMS platform.
Q: What is the maximum storage capacity on the dual microSD slots?
A: Up to 2 × 1 TB (2 TB total). Actual retention depends on resolution, frame rate, and compression codec—H.265 at lower bitrates extends recording duration compared to H.264.
Q: Is the lens autofocus?
A: No. The motorized varifocal lens allows remote zoom adjustment, but focus must be set manually at installation. Plan for on-site commissioning time.
Q: Does the PNB-A9082 require external licenses for AI analytics?
A: AI detection (people, vehicle, license plate, face) runs natively on the camera without per-license fees. Confirm your VMS or analytics platform does not impose additional licensing for consuming these detection events.
Q: What is the power consumption with the motorized lens and analytics active?
A: Peak draw is within PoE+ 802.3at budget (~90W available on most switches). Verify your switch port class supports PoE+ if deploying multiple units on the same switch.
Q: Can I disable the microphone if audio capture is not needed?
A: Yes. Audio input is selectable; you can leave all inputs disconnected if surveillance is video-only.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PNB-A9082 is a mature, fully-featured AI box camera positioned squarely at organizations that need on-camera analytics without cloud relay or external GPU infrastructure. Its real strength is the combination of native AI detection (people, vehicle, license plate with counting and heatmap), H.265 codec efficiency, and FIPS 140-3 Level 3 certification—a rare trifecta valuable for regulated sectors (finance, healthcare, critical infrastructure). The motorized varifocal lens and 120 dB WDR excel in dynamic indoor environments where coverage adjustment and lighting variation are common. The dual microSD slots (up to 2 TB) let you run edge recording independently of your NVR, a failsafe architecture often overlooked but crucial in unmanned facilities or remote sites with spotty network connectivity.
Technical Highlights:
- extremeWDR 120 dB: Handles high-contrast scenes without washing out shadows or clipping highlights. In a retail environment with bright entrance lighting and dark shelving, this eliminates the need for dual cameras or manual gain tuning—single image captures both zones with usable detail.
- H.265 compression reducing bitrate 40–50% versus H.264: On a 24/7 recording schedule, this translates to doubling your edge storage duration or halving bandwidth cost when feeding a remote NVR. At 8MP 30 fps, the savings are measurable across dozens of cameras.
- 0.015 lux low-light sensitivity with gyro-stabilized digital stabilization: Maintains color in very dim indoor spaces and compensates for vibration on loose mounts—warehouse or semi-outdoor settings benefit immediately from reduced blur and motion artifacts.
- FIPS 140-3 Level 3 secure element: Cryptographic hardware ensures firmware integrity and encrypted data handling—not a performance differentiator, but a procurement checkbox that matters if your facility policy or regulatory mandate demands it.
Deployment Considerations:
- The motorized varifocal lens is a feature and a gotcha: zoom is remote-controllable, but manual focus at install time is unavoidable. Plan commissioning time and bring focus tools or a focus-assist app to nail sharpness.
- Peak power consumption sits comfortably in PoE+ 802.3at (~90W per port), but if you're stacking multiple PNB-A9082 units or mixing them with other PoE+ cameras, verify your switch's total power budget. A typical 48-port switch may support only 4–8 simultaneous PoE+ devices.
- –10 °C to +55 °C operating range is adequate for climate-controlled indoors and semi-protected outdoor areas with housings, but confirm your facility's extremes—data centers and freezers may require thermal conditioning enclosures.
Best suited for retail entrance and queue monitoring, office and facility perimeter surveillance with vehicle detection, parking structure access points with LPR, and secure facilities (banks, data centers, healthcare) requiring FIPS-certified edge analytics and local recording failover.
