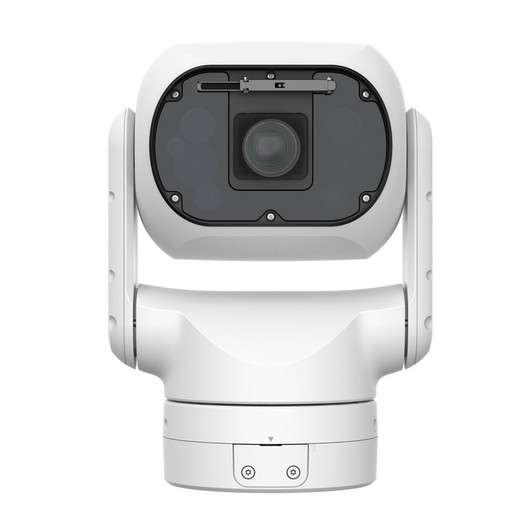

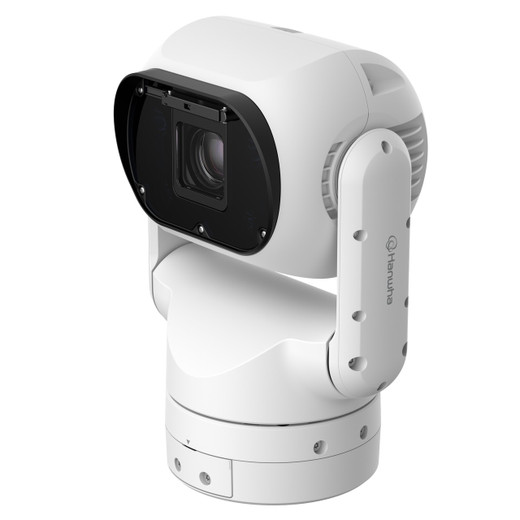

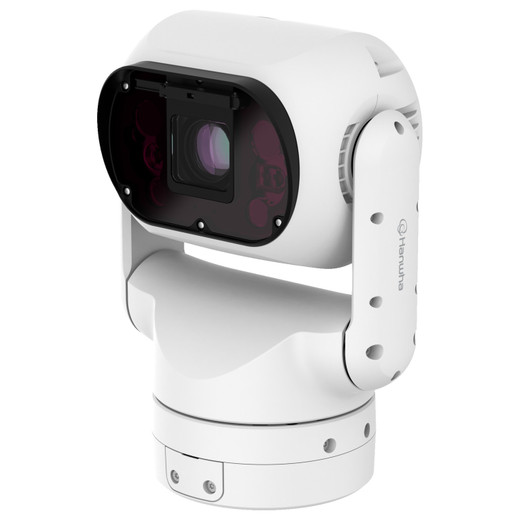

Hanwha TNP-A9430RW 8MP PTZ Camera with WN9 AI Processor
The Hanwha TNP-A9430RW is a ruggedized, AI-enabled PTZ (pan-tilt-zoom) camera built for outdoor and industrial environments where mechanical durability, extreme weather, and on-camera intelligence are operational requirements. This 8MP unit delivers 4K-equivalent resolution with adaptive infrared illumination, extreme dynamic range processing, and certifications spanning IP66/IP68 weatherproofing and IK10 vandal resistance—the combination you need for border security, critical infrastructure perimeter defense, and transportation hubs operating 24/7 across temperature swings and severe weather.
Key Features
- 8MP Resolution with Motorized Autofocus Lens: 8-megapixel sensor with continuous focal range motorized zoom means you can frame wide perimeter coverage on first power-up, then zoom to identify subjects across a distant fence line without losing focus speed or image clarity. That flexibility reduces camera count and installation points on large outdoor sites, cutting both hardware costs and cable runs.
- Adaptive IR Illumination with 5m Effective Range: Built-in 850nm infrared with 5-meter effective range and automatic day/night filter switching ensures full 24/7 visibility without separate lighting infrastructure. At 5 meters, this range covers typical parking lots, fence lines, and warehouse loading zones; beyond that distance, pair it with external area lighting or accept lower nighttime contrast.
- ExtremeWDR at 120dB Dynamic Range: 120dB wide dynamic range processing holds detail in both shadow and highlight regions simultaneously—critical when a camera faces backlighting from a sunset, floodlights, or reflective surfaces. You'll capture usable license plate detail even when a vehicle is front-lit against a bright sky, reducing the need for multiple overlapping cameras or repositioning.
- IP66 and IP68 Weatherproofing with IK10 Vandal Rating: IP66 withstands direct rain spray and dust ingress; IP68 adds brief submersion tolerance. IK10 handles impact without housing failure—this triple rating means deployment in unattended outdoor locations, coastal salt spray environments, and high-impact industrial zones with confidence. No separate hood or protective enclosure required in most weather conditions.
- H.265 Primary Compression with H.264 and MJPEG Fallback: H.265 cuts storage and bandwidth consumption roughly 40–60% compared to H.264, a real savings when recording 24/7 across multiple cameras on a single NVR. H.264 and MJPEG support ensure fallback compatibility if your VMS or network codec support is legacy.
- PoE++ (Class 8) Power Delivery: Draws full power from a single PoE++ switch port—no separate 24VDC supplies, no cable bundling at the mount point. Simplifies remote installations where power infrastructure is absent or expensive to provision.
- WN9 AI Processor for On-Camera Analytics: Built-in WN9 intelligence enables object detection and tracking without saturating your network or NVR CPU. ONVIF compliance locks in vendor independence—works with Milestone, Genetec, Hanwha SmartVMS, and other multi-vendor platforms without proprietary middleware.
- MicroSD Card Edge Recording: Local recording to microSD provides failsafe backup if your network connection drops, essential for mission-critical sites where connectivity can be intermittent.
- HTTPS Encryption: Encrypted data transport meets enterprise security and compliance baseline requirements.
Integration and Deployment
Deploy the TNP-A9430RW (often searched as TNP A9430RW) in outdoor IP camera perimeter security loops, where you need PTZ agility combined with industrial-grade durability. The WN9 AI processor reduces false alerts by filtering wind-blown debris and weather noise, lowering analyst workload and improving response precision. On a network video recorder with multi-stream support, one TNP-A9430RW can replace three or four fixed cameras, reducing installation labor and cable infrastructure costs. The motorized zoom also means security staff can reposition coverage in real-time without sending a technician to site—valuable when perimeter threats or operational needs shift seasonally.
Pair this camera with a PoE++ switch that supports Class 8 power delivery—standard PoE+ (802.3at) will starve the motor and IR illumination. For sites with legacy PoE infrastructure, confirm your switch budget before deployment. The 5-meter IR range is adequate for most fence-line and parking-lot coverage; if you need longer nighttime visibility, integrate external 24VDC area lighting on a separate circuit.
The TNP-A9430RW integrates into any ONVIF-compliant VMS, but camera selection for large-scale perimeter deployments should account for WN9 analytics offload—reducing edge processing overhead allows your NVR or server to handle more concurrent streams. Confirm your PoE power budget per switch port (typically 95W for Class 8 devices) before assigning multiple high-power PTZ units to a single switch stack.
When to Choose a Different Model
If your site does not require motorized zoom (fixed fence line, stationary loading zone), a fixed Hanwha IP camera in the same family will reduce cost and power draw. If you need submersion tolerance beyond IP68 (river-crossing, tidal-zone installation), consult the manufacturer for variants rated IP69K. If your installation cannot support PoE++ infrastructure and you cannot upgrade your switch, a lower-power fixed camera on standard PoE (802.3af) may force a site redesign but will avoid network upgrades.
Frequently Asked Questions
Q: Is the TNP-A9430RW NDAA Section 889 compliant?
A: This product information does not include NDAA compliance certification data. Confirm directly with the manufacturer or your reseller before specifying for federal procurement.
Q: What is the maximum IR range of the TNP-A9430RW?
A: The TNP-A9430RW includes adaptive 850nm infrared illumination with a 5-meter effective range. Beyond 5 meters, contrast and usable detail degrade; pair with external lighting for longer-distance nighttime coverage.
Q: Does the TNP-A9430RW support ONVIF and Milestone XProtect?
A: Yes. The TNP-A9430RW is ONVIF-compliant and works with Milestone XProtect and other multi-vendor VMS platforms without proprietary middleware.
Q: What are the power requirements for the TNP-A9430RW?
A: The TNP-A9430RW is powered by PoE++ (IEEE 802.3bt Class 8). Confirm your switch supports Class 8 power delivery (95W per port) before deployment; standard PoE+ (802.3at) will not deliver sufficient power for the motor and IR illumination.
Q: Can the TNP-A9430RW record locally if the network connection drops?
A: Yes. The TNP-A9430RW includes microSD card slot for edge recording, providing failsafe backup if your network connection is interrupted.
Q: What compression formats does the TNP-A9430RW support?
A: The TNP-A9430RW supports H.265 (primary), H.264, and MJPEG. H.265 reduces bandwidth and storage requirements 40–60% compared to H.264, meaningful for 24/7 multi-camera recording scenarios.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The TNP-A9430RW is one of the few PTZ units I'd specify for unattended remote perimeter sites where you absolutely cannot send a technician for repositioning. The motorized zoom plus WN9 on-board analytics cuts the false-alert noise that kills analyst morale on 24/7 shifts. The IP66/IP68/IK10 stacking is the detail that matters: most competitors spec one rating; Hanwha here is saying this camera survives rain, salt spray, and a baseball bat without a separate enclosure. That translates to real deployment cost savings in high-security or harsh-weather environments.
Technical Highlights:
- 120dB WDR with 5m IR Range: The wide dynamic range and adaptive illumination work together to hold license-plate detail even in backlit scenarios (sunset, reflective surfaces, floodlights), while the 5-meter IR reach covers typical fence lines and loading zones without external lighting.
- H.265 + MJPEG Fallback: H.265 cuts your storage footprint 40–60% versus H.264 on 24/7 recording, but MJPEG fallback means if your NVR or codec pipeline doesn't support H.265, the camera downgrades gracefully without bricking your stream.
- PoE++ Class 8 Power Model: 95W per port is not trivial—check your switch before deployment. A single TNP-A9430RW will consume most or all of your Class 8 budget, so budget accordingly if you're stacking multiple PTZ units on a single switch stack.
Deployment Considerations:
- The 5-meter IR range is adequate for fence perimeters and parking lots but will not reach across a stadium or large industrial yard. If you need 30+ meters of nighttime coverage, integrate external 24VDC area lighting or accept lower contrast beyond the effective IR range.
- PoE++ infrastructure is non-negotiable. If your site is running standard PoE+ (802.3at, 30W max), upgrading the switch is mandatory—you cannot run this camera on undersized power, and the motor will stall or the IR will flicker under low-power conditions.
- WN9 analytics offload reduces NVR CPU load, but confirm your VMS (Milestone, Genetec, SmartVMS) supports streaming the analytics metadata before you rely on it for rule-based alerts. ONVIF compliance is broad; deep integration depth varies by VMS.
Best deployment scenario: perimeter security on a large industrial campus or border crossing where you need real-time pan-tilt-zoom capability, 24/7 operation, and the ability to reposition coverage remotely without site visits. The TNP-A9430RW earns its cost when false-alert filtering and motorized repositioning save analyst labor and response time over a 12-month horizon.
