Overview

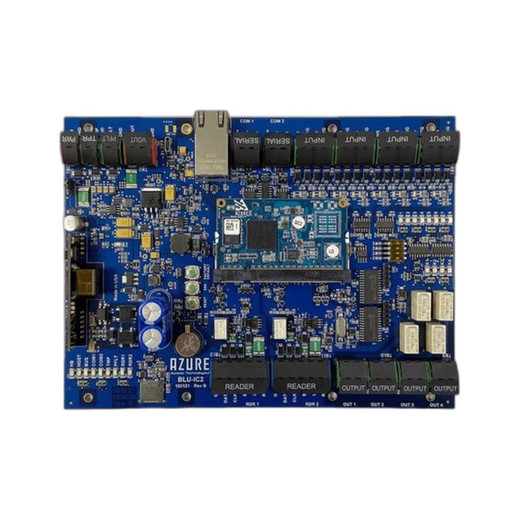

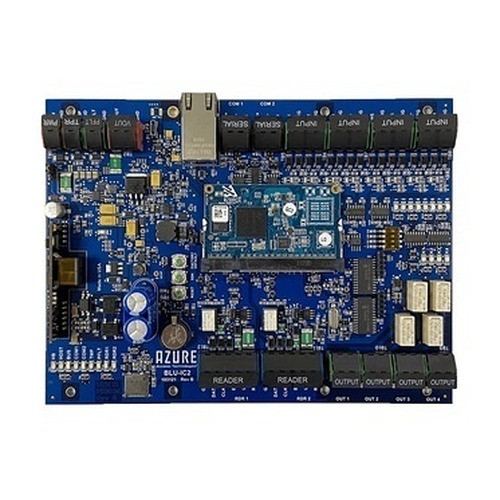

The Hanwha NOP-IC2 is a mid-to-enterprise access control controller powered by the OnCAFE platform, engineered for organizations that require high-capacity cardholder management without tolerating network-dependent access denial. The NOP-IC2 (often searched as NOP IC2) manages up to 1,000,000 cardholders and 128 readers, making it suitable for corporate campuses, healthcare facilities, government installations, and data centers where scalability and offline resilience are non-negotiable.

Key Features

• Massive Cardholder Capacity: Supports 1,000,000 cardholders with 50 access levels per cardholder — eliminates the need for multiple controllers in large deployments, reducing integration complexity and operational overhead.
• Reader Management: Handles up to 128 readers via 2 Wiegand/OSDP ports with native support for up to 16 OSDP readers — critical when integrating modern, secure reader technology without firmware workarounds.
• Offline Resilience: 100,000+ offline event cache ensures access decisions continue functioning even if your network connection fails — this is the difference between a locked-out facility and business continuity during outages.
• Granular Access Control: 300 access levels per controller enable fine-grained policy enforcement (e.g., different access for shift workers, vendors, and temporary staff) without requiring separate logical zones.
• Supervised Input Monitoring: 8 supervised inputs with hardware and software filtering detect door sensors, motion, or tamper events while rejecting false alarms — reduces alert fatigue and improves security operations.
• Relay Outputs: 4 Form-C relay outputs rated at 2A @ 30VDC maximum support door locks, magnetic strikes, and alarm notifications without needing an external relay module.
• Compact Form Factor: 8" × 6" × 0.88" footprint (0.6 lbs) fits in standard electrical cabinets or conduit without consuming valuable DIN rail space — meaningful in tight server rooms or equipment closets.
• Flexible Power Options: 12–24VDC at 350mA typical consumption integrates with standard uninterruptible power supplies and remote power distributions without special conditioning.

Connectivity & Integration

The NOP-IC2 offers extensive I/O and network options. One 10/100 Ethernet port (RJ-45) connects to your management network, while two RS-485 serial ports (multi-drop capable, 9,600–115,200 baud) enable integration with legacy systems or remote readers. USB support facilitates local configuration and firmware updates. Open-collector buzzer output and 2-wire LED control signal repurposing provide flexible hardware integration with existing door hardware or third-party systems. Supervised inputs include 2 dedicated unsupervised channels for cabinet tamper and power failure detection — alerting your team immediately if someone opens the enclosure or AC power fails.

Enterprise-Grade Security Architecture

The NOP-IC2 embeds multiple security layers. HSM-signed Root-of-Trust validates the controller's firmware integrity at boot, preventing unauthorized or tampered code from running. TLS 1.3 encryption with AES-128/256 and SHA-256 protects all network communications. OSDP Secure Channel support with custom keys secures reader-to-controller traffic — essential when readers reside in public-facing areas. Encrypted data at rest ensures stored cardholder records and access logs remain protected even if the device is physically compromised. IPv4/IPv6 network support with static or DHCP configuration enables seamless integration into modern enterprise IT environments, while SNMP monitoring capabilities allow centralized device health tracking.

Environmental Hardiness & Compliance

Operating temperature range of −40°C to +80°C (−40°F to +176°F) qualifies the NOP-IC2 for installations in uncontrolled spaces — loading docks, outdoor equipment shelters, and manufacturing plants where HVAC is minimal. Onboard power monitoring and memory retention ensure mission-critical operations survive brief power interruptions. The controller meets stringent compliance standards including CE marking, UL 294 (Access Control Systems), UL 294B, UL 2610, UL 1076 (Emergency Communications Systems), ULC ORD C1076 (Canadian equivalents), 60839-11-1 (security systems interface), and FCC Part 15 Class A — required certifications for critical infrastructure and regulated environments.

Ideal Deployment Scenarios

• Corporate Campuses & Multi-Building Facilities: High cardholder counts and distributed readers across multiple buildings justify a single controller with robust offline functionality.
• Healthcare & Pharmaceutical: Access level granularity supports department-level restrictions (e.g., pharmacy, lab, ICU) with automated audit trails for compliance investigations.
• Government & Secure Facilities: HSM-signed firmware and OSDP Secure Channel address federal cybersecurity mandates and classified information handling policies.
• Financial Institutions & Data Centers: 100,000+ offline event cache and tamper detection provide the resilience and forensics required for SOX and PCI-DSS compliance.
• Educational Institutions: 50 access levels per cardholder enable role-based policies (students, faculty, staff, contractors) without manual override processes.
• Manufacturing & Industrial Plants: Extended operating temperature, supervised inputs, and relay outputs integrate with factory automation and production safety interlocks.

When to Choose a Different Model

If your installation is small (single building, under 10,000 cardholders) and network connectivity is always available, consider a lighter-duty controller in the Hanwha access control family — you'll save on licensing and complexity. If you need integrated video management alongside access control, explore Hanwha's hybrid security platforms that combine IP cameras and access control in a unified management console.

Frequently Asked Questions

Q: What happens to access control if the network goes down?

A: The NOP-IC2 continues to enforce access policies using its onboard 100,000+ event cache. As long as the cardholder's credentials match cached access rules, the controller grants or denies access without contacting the management server. Once network connectivity is restored, the device syncs any offline decisions back to the server.

Q: Can I integrate the NOP-IC2 with readers from different manufacturers?

A: Yes. The controller supports both Wiegand (standard credential format) and OSDP (Open Supervised Device Protocol) readers. OSDP readers benefit from encrypted, bidirectional communication and custom key support. Wiegand readers work but transmit credentials unencrypted; use them only for non-critical access points or upgrade to OSDP readers for sensitive areas.

Q: Is the NOP-IC2 suitable for outdoor installations?

A: The controller operates reliably from −40°C to +80°C, so it handles outdoor equipment shelters and uncontrolled storage rooms. However, house the device in a weatherproof enclosure (IP66 or higher) if it will be directly exposed to rain, wind, or solar radiation. The controller itself is not sealed against moisture ingress.

Q: What compliance certifications does the NOP-IC2 hold?

A: The device meets UL 294, UL 294B, UL 2610, UL 1076, ULC ORD C1076, IEC 60839-11-1, CE, and FCC Part 15 Class A. These certifications validate performance and safety in access control, emergency systems, and electromagnetic compatibility — required for government contracts, healthcare facilities, and financial institutions.

Q: How much power does the NOP-IC2 draw?

A: Typical power consumption is 350mA at 12–24VDC. At 24VDC, that's roughly 8.4 watts. At 12VDC, around 4.2 watts. Either way, a standard uninterruptible power supply (UPS) or backup battery rated for access control can sustain the device for hours during a mains failure.

Q: Can I manage multiple NOP-IC2 controllers from a single management console?

A: Yes. The OnCAFE platform is designed for multi-controller deployments. Each NOP-IC2 can be provisioned and monitored from a central management application, allowing you to enforce consistent policies across hundreds of doors and thousands of cardholders without manual per-device configuration.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The NOP-IC2 stands out for its combination of 1,000,000 cardholder capacity and robust offline functionality (100,000+ event cache), making it the right choice for organizations that cannot tolerate network-dependent access denial. This is not theoretical resilience — a network outage, ransomware incident, or failed management server should never lock people out of their building. The HSM-signed Root-of-Trust architecture and OSDP Secure Channel support with custom keys address the evolving cybersecurity threat landscape in physical security, where attackers now target access control systems as gateways into enterprise networks.

Technical Highlights:

• 1,000,000 Cardholder Capacity: Eliminates multi-controller fragmentation in large deployments. A single NOP-IC2 can serve a 5,000-person corporate campus or hospital system without requiring distributed controllers or complex cardholder record synchronization across multiple devices.
• 128 Reader Support + OSDP Secure Channel: Native support for 16 OSDP readers (with custom encryption keys) plus 128 readers total means you can migrate from legacy Wiegand readers to modern, encrypted credentials without controller replacement. This future-proofs your access infrastructure.
• 100,000+ Offline Event Cache: Stores access decisions and credential verifications locally. During a network outage lasting hours or days, the controller continues to grant or deny access based on cached rules. Once connectivity returns, the device automatically syncs decisions back to the management server for compliance audit trails.
• 8 Supervised Inputs + 4 Relay Outputs: The supervised inputs (with hardware filtering) eliminate false alarms from electrical noise on door sensors. The 4 Form-C relays let you directly control door locks, strikes, and alarm sirens without separate relay modules, reducing panel complexity and wiring.

Deployment Considerations:

• Offline Event Cache Limits: 100,000+ events is substantial, but high-traffic facilities (hospitals, airports, campuses) can burn through that cache in days if the network is down. Plan for UPS-backed management servers or redundant network paths to minimize outage duration.
• Reader Wiegand vs. OSDP Trade-off: Wiegand readers are cheaper but send credentials in plaintext. If you're deploying the NOP-IC2 for high-security environments (government, pharma, fintech), budget for OSDP reader upgrades — the cost difference is small relative to your physical security ROI.
• Temperature Range: The −40°C to +80°C operating range is wide, but outdoor or uncontrolled-space installations still need weatherproof enclosures. Don't assume the bare controller is IP66-rated — it is not. Invest in a proper cabinet or conduit box.

The NOP-IC2 is the right fit for mid-to-large enterprises running mission-critical facilities where access denial causes immediate business impact (hospitals, data centers, manufacturing plants, financial institutions). For smaller deployments under 50,000 cardholders with stable network connectivity, a lighter controller may reduce overhead. For true high-security environments (government, classified), pair the NOP-IC2 with OSDP readers and integrate it into a physical security information management (PSIM) platform that correlates access events with video and intrusion detection.
