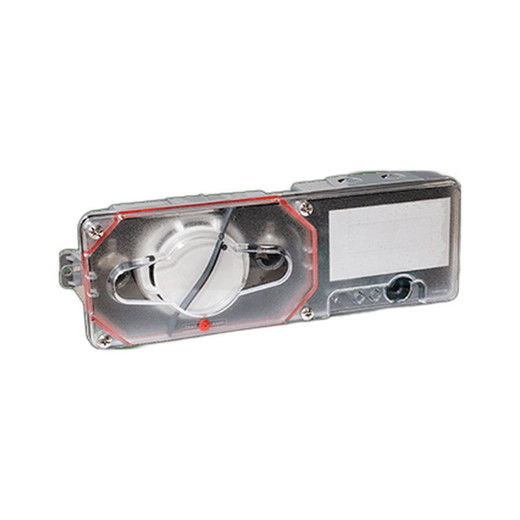

Potter PAD200-DUCTR Analog Addressable Duct Detector
Overview
The Potter PAD200-DUCTR is an analog addressable duct detector designed for integration into fire alarm systems monitoring HVAC ductwork. This detector leverages analog addressable technology to provide real-time smoke detection data directly to compatible fire control panels, eliminating the need for conventional relay modules and simplifying system architecture. The PAD200-DUCTR combines reliable smoke sensing with addressable reporting, making it suitable for retrofit and new construction installations where duct-mounted fire detection is required.
Key Features
- Analog Addressable Technology: Transmits continuous smoke level data to the control panel, enabling early warning detection and reducing false alarm susceptibility compared to conventional detectors
- Duct-Mount Configuration: Purpose-built for direct installation in HVAC supply or return ductwork, monitoring air volume at the source
- Intelligent Smoke Sensing: Responds to visible smoke particles in airstream, with analog output proportional to smoke concentration
- Direct Panel Integration: Compatible with addressable fire control panels that support analog input protocols, reducing auxiliary modules
- Compact Design: Engineered for minimal obstruction in duct runs while maintaining effective sensing coverage
- Standard Fire Alarm Compatibility: Works within conventional addressable fire alarm system wiring and communication protocols
Integration & Compatibility
The PAD200-DUCTR integrates into analog addressable fire alarm systems as a direct-wired smoke sensing device. When properly configured on a compatible control panel, the detector reports smoke conditions as an analog signal, allowing the panel to trend detection patterns and respond with graduated alert levels. This capability makes the PAD200-DUCTR suitable for facilities requiring early-warning HVAC monitoring in commercial, institutional, and industrial environments. Installers should verify panel compatibility with analog addressable duct detectors before specification.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
As a systems engineer responsible for fire alarm design and integration, I've found that analog addressable duct detectors like the Potter PAD200-DUCTR simplify HVAC monitoring in multi-zone facilities. The PAD200-DUCTR's direct analog reporting reduces panel load compared to running separate detector circuits, and the duct-mount form factor ensures you're sampling air at the point of circulation rather than trying to infer duct conditions from remote locations.
Technical Highlights:
- Analog Reporting: Transmits proportional smoke signal directly to panel, enabling detection before alarm threshold and supporting maintenance diagnostics
- Duct Integration: Mounted inline or in probe configuration within HVAC system, captures smoke in supply or return air stream
Deployment Considerations:
- Verify duct airflow velocity and temperature range compatibility; high-velocity ducts may require probe extensions or protective sleeves
- Plan wiring runs to minimize voltage drop on analog circuits; use twisted-pair shield recommended for addressable sensor networks
For buildings with ducted HVAC and addressable fire systems, the PAD200-DUCTR delivers effective early-warning smoke detection without requiring relay conversion modules. Confirm panel firmware supports analog duct detector addressing during system design phase.
