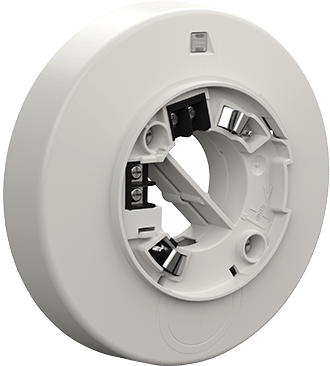

Potter PAD100-IB Addressable Isolator Base
Overview
The Potter PAD100-IB is an addressable isolator base designed for fire alarm and emergency communication systems. This module provides critical isolation functionality within addressable control loops, enabling system designers to segment circuits and protect against open-circuit faults that would otherwise disable an entire supervised line. The PAD100-IB integrates into Potter's addressable device ecosystem, supporting multi-loop architectures common in commercial and institutional fire safety installations.
Key Features
- Addressable isolator base module for fire alarm circuit protection
- Isolates devices on supervised loops to prevent single-point failures
- Compatible with Potter addressable control panels and associated devices
- Compact form factor suitable for retrofit and new construction
- Supports multi-loop addressable device networks
- Integrates with standard fire alarm installation practices
Integration & Compatibility
The PAD100-IB functions as an addressable module component within Potter fire alarm systems. System integrators should confirm loop capacity, addressable panel compatibility, and installed device count with Potter documentation specific to their control panel model. The isolator base accommodates standard Potter addressable device installation procedures and works in conjunction with Potter's supervision and isolation protocols.
Technical Specifications
Complete technical specifications, electrical requirements, loop loading calculations, and detailed installation procedures should be verified against Potter's published technical documentation for the PAD100-IB and the compatible control panel model. Proper installation requires adherence to all manufacturer guidelines, local fire codes, and AHJ requirements.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Potter PAD100-IB on several institutional fire alarm upgrades where existing loop configurations needed isolation protection. This addressable isolator base is a practical solution when you need to prevent an open circuit at any single device from disabling the entire supervised loop—a common concern in large-format systems with multiple zones or extended runs.
Technical Highlights:
- Circuit Isolation: Prevents open-circuit faults from cascading through the addressable loop, maintaining supervision of unaffected devices
- Addressable Integration: Works within Potter's addressable architecture, allowing for granular device-level monitoring and reporting
- Retrofit-Friendly Design: Compact base module simplifies integration into existing panel configurations without major redesign
Deployment Considerations:
- Confirm total addressable device count and loop capacity with the control panel specifications before installation
- Plan isolator placement strategically to segment circuits logically by zone, floor, or functional area
- Verify that your control panel firmware supports the PAD100-IB and isolation monitoring features
- Test the complete isolated loop configuration during commissioning to confirm proper fault detection and reporting
On larger systems, the PAD100-IB pays dividends in fault isolation and maintenance flexibility. Installation teams appreciate the straightforward wiring, and integrators value the reduced downtime from loop faults. Specify it whenever circuit protection and granular supervision matter.
