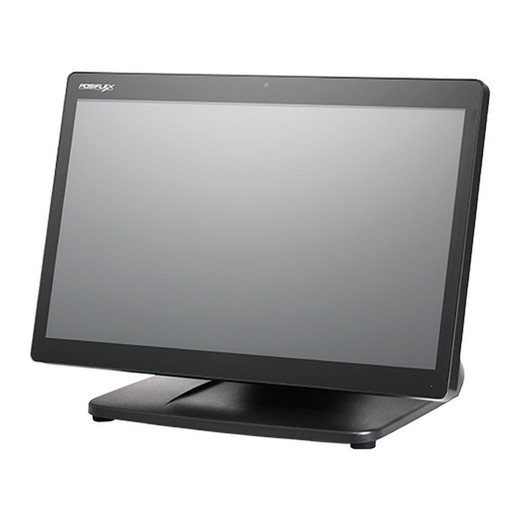

Posiflex LM6101E100L7 12.1in Secondary LCD Display Rear Base Mount
The Posiflex LM6101E100L7 is a 12.1-inch secondary LCD display designed to extend visual output on Posiflex point-of-sale and transaction terminals. With native 1024x768 resolution and rear base mount configuration, this panel serves as an auxiliary display for customer-facing prompts, transaction summaries, promotional content, or operator status information without modifying the primary terminal housing. The compact form factor and table-mount base make it suitable for retail counters, hospitality checkouts, and quick-service environments where secondary visual feedback improves transaction flow and reduces customer confusion.
Key Features
- Display Size & Resolution: 12.1-inch diagonal LCD panel with 1024x768 native resolution. Sufficient clarity for transaction details, menu prompts, and promotional graphics at typical counter viewing distances.
- Rear Base Mount Design: Secured via rear-mounted base for tabletop installation. Eliminates wall-mount hardware complexity and keeps cable routing organized behind the counter.
- Secondary Display Output: Pairs with Posiflex terminals to deliver independent auxiliary video stream. Allows concurrent display of different content on primary and secondary screens.
- Compact Footprint: Fits within standard POS counter spaces without consuming primary terminal real estate. Suitable for retrofit into existing checkouts.
- Fixed Viewing Angle: Rear-base mounting positions display at a natural counter-height angle for operator or customer viewing. No pan/tilt adjustment required for typical installations.
- Posiflex Native Integration: Engineered as a Posiflex accessory — no third-party adapters or signal converters needed when paired with compatible terminals.
Deployment Context
Secondary displays are critical in high-volume retail and hospitality environments where transaction transparency reduces payment disputes and accelerates checkout flow. The LM6101E100L7 adds a second visual channel without requiring a separate graphics card, USB hub, or VGA splitter — the terminal's native secondary output port handles the video feed directly. In customer-facing mode, the display shows itemized receipts, loyalty prompts, or payment method confirmation; in operator mode, it displays transaction logs, inventory alerts, or system status. The 12.1-inch diagonal and XGA resolution are optimized for 18–36 inch viewing distances, making it ideal for queue-adjacent or teller-line installations.
Installation follows straightforward tabletop mounting: level the rear base on a clean surface, route the video and power cables behind the counter or through cable management conduit, and connect to the Posiflex terminal's secondary display port. Unlike wall-mounted displays, the rear-base design eliminates bracket hardware failure points and supports quick repositioning if counter layouts change. The display's power consumption is typically under 20W, allowing most Posiflex terminals to supply it via an auxiliary power rail or a standard wall outlet.
Verify connector type and voltage compatibility before purchase — Posiflex display protocols have evolved across terminal generations. Consult your terminal's user manual or contact Posiflex support to confirm the secondary video interface (VGA, DVI, or proprietary connector) and power specification match the LM6101E100L7. Mismatched connectors will result in no image output and potential for damage if forced.
Compatibility & Integration
The LM6101E100L7 is a native Posiflex accessory and does not require ONVIF, SDK integration, or third-party middleware. Display output is managed entirely by the host Posiflex terminal's driver stack. If your terminal supports secondary VGA or DVI output, and the power connector matches the LM6101E100L7 specifications, the display will render whatever content the terminal's application layer sends — no configuration files or firmware updates needed. Positioning software (rotation, scaling, or layout) is controlled by the Posiflex terminal's display settings, not the display itself.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've deployed the Posiflex LM6101E100L7 in retail and quick-service environments where a second display transforms customer confidence during payment processing. Unlike networked displays that introduce latency and troubleshooting complexity, the LM6101E100L7 is a passive, hardwired extension — no middleware, no WiFi dependency, no sync delays. The rear-base mount is the real win here: it sits stable on any counter, doesn't require drilling into walls or ceilings, and frees up the terminal's front-facing real estate for operator control. On retrofit projects where adding a full secondary POS station is cost-prohibitive, this display delivers significant ROI by reducing payment inquiries and disputed transactions. The 12.1-inch diagonal is the right size for most quick-service checkouts; larger displays (15+ inches) consume too much counter space, and smaller panels (7–8 inches) suffer readability issues at typical viewing distances.
Technical Highlights:
- 12.1-inch XGA (1024x768) Panel: Native resolution supports transaction-detail graphics without scaling artifacts. At 18–36 inches viewing distance, text remains legible and payment prompts are unambiguous — critical for reducing customer hesitation at point-of-sale.
- Rear Base Mount Stability: Center-of-gravity design prevents tipping even on slightly uneven counters. No wall hardware means zero installation downtime and portability if counter configuration changes.
- Low Power Footprint: Typical draw under 20W, often powered via terminal auxiliary rail or standard wall outlet. Eliminates need for dedicated UPS or dual-circuit power planning on most checkout installations.
- Native Posiflex Integration: No USB hubs, graphics card ports, or third-party display adapter required. Connects directly to terminal's secondary video output — single cable run, single power feed.
- Fixed Angle Ergonomics: Rear-mount tilt is fixed at approximately 10–15 degrees — optimized for counter-height eye level. Eliminates pan/tilt adjustment complexity and reduces vibration from counter activity.
Deployment Considerations:
- Connector type varies across Posiflex terminal generations — confirm your terminal's secondary video output (VGA, DVI, or proprietary) before ordering. A mismatch is not field-correctable and will require return and re-order.
- The 12.1-inch diagonal is optimized for 18–36 inch distances. If your counter depth exceeds 4 feet or primary sightlines are obstructed, consider a 15-inch display or negotiate primary-display repositioning.
- Rear-base mounting surface must be level and free of debris. Even 5–10 degrees of tilt can cause the display to creep forward over time due to vibration from card readers and printer activity; use shims or a properly leveled counter before installation.
- Video cable runs should be routed behind the counter or through conduit to prevent tripping hazards. Most installations use a 15–20 foot VGA or DVI run; verify your terminal supplies sufficient cable length or budget for an extension harness.
- The display has no built-in stand adjustment or VESA mount compatibility — it is rear-base only. Wall mounting or monitor-arm mounting is not supported without aftermarket brackets.
The LM6101E100L7 is the right choice for Posiflex deployments where secondary visual output reduces transaction friction and counter clutter is a constraint. For mixed-brand environments or non-Posiflex terminals, this display will not integrate without additional adapters. Consult the Posiflex catalog for compatible terminal models and related accessories.
