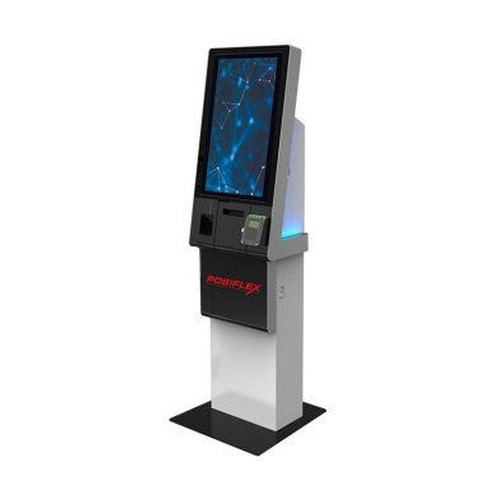

Posiflex KT2130C132DFL0 21.5" PCAP Touch Terminal
Overview
The Posiflex KT2130C132DFL0 is a 21.5-inch capacitive touchscreen terminal running Windows 10 IoT, built for retail checkouts, kiosks, and service counters where you need a fanless, integrated payment-capable endpoint. The Intel Celeron J1900 processor (2.0 GHz) and 4GB RAM handle standard POS transactions and multi-threaded retail applications without thermal stress. The 64GB SSD provides enough local storage for OS, applications, and transaction logs; no spinning disk means lower failure risk in high-traffic environments. Ingenico EMV integration is built in, so contactless and chip-card payment flows work out-of-box without external pinpads or gateway delays.
Compatibility
This terminal integrates with any POS system or retail management software that supports Windows 10 IoT (x64). Ingenico EMV certification allows direct connection to payment processors supporting Ingenico protocols—check with your processor to confirm gateway compatibility before deployment. The PCAP (projected capacitive) touchscreen works reliably in high-volume retail settings and survives brief contact with liquids without false triggers, but is not waterproof and should not be submerged. Standard USB and Ethernet ports support peripheral attachment (receipt printers, customer displays, barcode scanners) and network integration. For kiosk deployments, verify with your mounting solution provider that the terminal's form factor fits your enclosure.
Installation Notes
Mount on a stable countertop or kiosk pole using the integrated base or VESA 100 mounting holes. Connect via Ethernet (RJ-45) to your network or directly to a payment gateway; PoE is not supported—use a standard 90W external power adapter (included). Fanless design means no moving parts to maintain, but ensure at least 4 inches of clearance around the rear and sides for passive cooling. Boot time into Windows 10 IoT is typically 60–90 seconds after power-on. Initial configuration requires administrator credentials and a USB keyboard for setup; configure your POS application and payment credentials offline before floor deployment to minimize POS downtime.
What's in the Box
- 1x Posiflex KT2130C132DFL0 terminal with integrated stand
- 1x 90W external power adapter with regional plug adapters
- 1x Ethernet cable (1.5 m)
- 1x Quick-start guide and safety documentation
