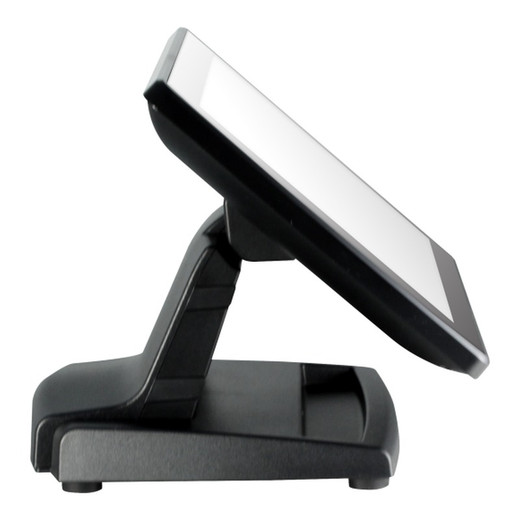

Posiflex KT2130P132DFL0 21.5-inch Pedestal Payment Terminal
Overview
The Posiflex KT2130P132DFL0 is a 21.5-inch pedestal-mounted payment terminal running Windows 10 IoT with integrated Ingenico EMV capabilities. Built on an Intel Celeron J1900 processor (2.0 GHz) with 4GB RAM and 64GB SSD storage, this terminal supports projected capacitive (PCAP) touch input — meaning it responds to touch even when gloved, a practical advantage in retail environments where cashiers wear protective gear or operate during temperature swings.
The pedestal form factor positions the display at counter height for customer-facing transactions, signature capture, or PIN entry. The KT2130P132DFL0 integrates directly with Ingenico EMV card readers via the IUC285 module, so card payment processing is wired into the terminal without external reader boxes cluttering the counter.
Compatibility
The KT2130P132DFL0 is engineered for point-of-sale and self-service environments where Ingenico EMV readers are the standard — retail, QSR (quick-service restaurants), hospitality, and fuel/convenience store networks. The Windows 10 IoT operating system supports legacy POS applications (third-party POS software, payment gateways, inventory systems) while maintaining security patches and updates. PCAP touch is compatible with standard POS applications, signature-capture middleware, and mobile wallet interfaces that expect capacitive input.
Installation Notes
Pedestal mounting requires a stable, level counter surface — floor-mount installation is not typical. The terminal draws power via standard AC mains (wall outlet); no PoE or low-voltage DC supply. Network connectivity is wired Ethernet (RJ-45), which must be run to the counter location — ensure switch and PoE/managed switch are within cabling distance. The PCAP touch panel is sealed and does not require protective glass; avoid prolonged exposure to harsh abrasives or solvents that degrade capacitive sensors.
What's in the Box
- 1x Posiflex KT2130P132DFL0 terminal unit with integrated display
- 1x Ingenico IUC285 EMV reader module (pre-integrated)
- 1x power cable
- 1x Ethernet cable
