Pelco PP451-SW Rooftop Parapet Mount Pipe

Pelco PP451-SW Rooftop Parapet Mount Pipe

Overview

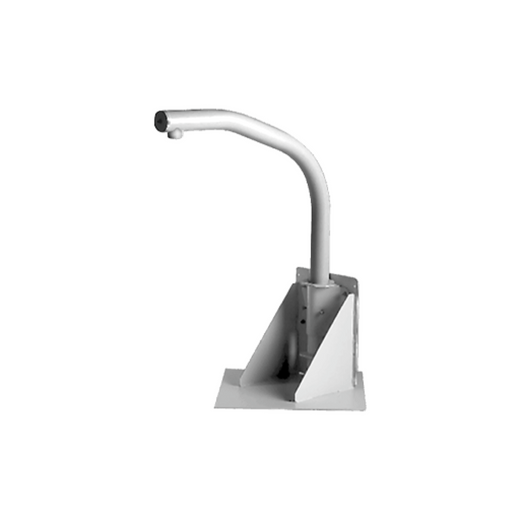

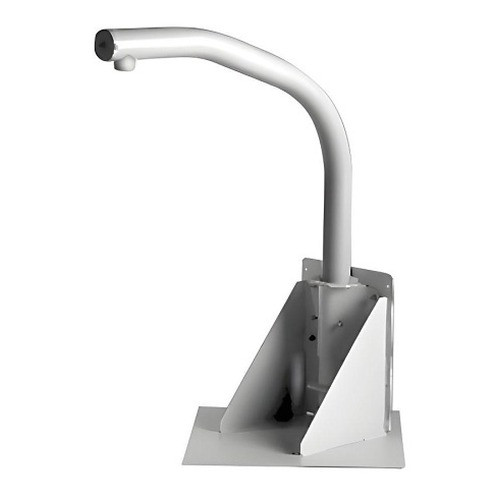

The Pelco PP451-SW is a purpose-built mounting accessory designed to position pendant dome cameras above rooftop parapet edges. Built for Pelco Spectra and DF5 series cameras, this white powder-coat pipe mount enables effective perimeter and grounds surveillance on buildings where standard ceiling or wall mounting isn't viable. The vertical pipe section lifts the camera above parapet obstructions, allowing unobstructed downward and outward sightlines across building edges and surrounding areas — a critical setup for detecting unauthorized access or activity at ground level.

Key Features

• Engineered for Spectra and DF5 Pendant Domes: Designed to work specifically with these camera series, ensuring proper weight distribution and optical alignment. Verify your exact pendant dome model before ordering to confirm compatibility.
• Vertical Pipe Extension: Provides adjustable height above the parapet surface, allowing you to position the camera's field of view beyond roof obstructions. The separate PP451-PIPE extension is available if you need additional vertical reach for taller parapets.
• Weather-Resistant Construction: Built to endure rooftop exposure — wind loads, thermal cycling, UV exposure, and moisture. However, you must seal all roofing membrane penetrations per Pelco documentation to preserve roof warranty. Unsealed penetrations risk water damage to interior spaces.
• White Powder-Coat Finish: Blends with standard light-colored roofing and parapets, reducing visual intrusion. Aesthetics matter on customer-facing sites; this finish integrates better than black mounts on commercial properties.
• NDAA Section 889 Compliant: Meets federal compliance requirements for regulated and government installations — relevant if you're bidding federal contracts or deploying in restricted environments.
• Professional Installation Recommended: Proper installation preserves warranty coverage and system reliability. Incorrect mounting can stress the parapet structure and affect camera stability.

Installation and Structural Considerations

Before ordering the PP451-SW, verify that your parapet structure can support the combined weight of the pendant dome camera, the pipe, and the mount assembly. Lightweight or deteriorated parapets may require structural reinforcement — this is not a mount issue but a building issue that must be addressed before installation. Consult structural drawings or a building engineer if parapet integrity is uncertain.

All roofing penetrations must be sealed with appropriate flashing and roofing compound per Pelco and your roofing contractor's specifications. Unsealed penetrations are the leading cause of roof leaks in parapet-mounted systems. Professional installation is strongly recommended to ensure compliance with roof warranty terms.

Warranty and Support

Backed by a 1-year manufacturer warranty covering defects in materials and workmanship. Access to Pelco's global service network is available through authorized distributors and service partners.

When to Choose a Different Approach

If your installation does not require parapet mounting — for example, interior ceiling or wall mounting is possible — consider standard pendant dome brackets or wall mounts designed for your Spectra or DF5 model. For non-parapet rooftop applications, Pelco offers the PP450-SW as an alternative. If you require additional vertical adjustment beyond the standard pipe section, the PP451-PIPE extension is sold separately and can be stacked for custom height.

Complementary Products

Pair the PP451-SW with network video recorders to store rooftop footage, and ensure your PoE switch infrastructure can power the pendant dome from your equipment room or local PoE injector. For multi-camera rooftop systems, plan cable routing carefully to avoid water pooling in conduit runs.

Frequently Asked Questions

Q: Is the PP451-SW compatible with all Pelco pendant dome cameras?

A: No. The PP451-SW is engineered specifically for Pelco Spectra and DF5 series pendant dome cameras. Verify your camera model before purchase. Compatibility with other pendant dome models is not supported.

Q: Can I use the PP451-SW without sealing roofing penetrations?

A: Technically yes, but not recommended. Unsealed penetrations will compromise your roof warranty and will eventually lead to water intrusion and interior damage. Always seal per Pelco documentation and your roofing contractor's specifications.

Q: What is the maximum load this mount can support?

A: The maximum load depends on the combined weight of your specific pendant dome, the pipe, and the mount assembly. Verify the weight of your camera model in its datasheet, then confirm with Pelco or your distributor that your parapet structure and the mount assembly can support that total load.

Q: Is the PP451-PIPE extension required for this mount?

A: No, it is optional. The PP451-SW includes a vertical pipe section as standard. The separate PP451-PIPE extension is only needed if you require additional height adjustment above the standard configuration.

Q: Does Pelco provide installation guidance for rooftop mounting?

A: Yes. Consult the PP451-SW product datasheet and your camera's installation manual for detailed rooftop mounting and penetration sealing procedures. Professional installation is recommended to maintain warranty coverage.

Q: What is the warranty period for the PP451-SW?

A: The PP451-SW is covered by a 1-year manufacturer warranty against defects in materials and workmanship. Warranty coverage does not extend to damage caused by improper installation, structural failure, or exposure damage from unsealed roof penetrations.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The PP451-SW (often searched as PP451 SW) is a straightforward accessory — it's a pipe-and-bracket assembly, not a camera or recorder. What makes it worth deploying correctly is the parapet problem it solves. On a typical rooftop, a parapet edge blocks the downward view you actually need to see ground-level access points, loading docks, and perimeter movement. This mount lifts your Spectra or DF5 pendant dome above that obstruction so the camera can see both outward (across the property line) and downward (at the building base). But there's a gotcha: the roofing penetration.

Technical Highlights:

• Weather-Resistant Construction: The pipe and bracket are built for continuous rooftop exposure — rain, UV, thermal stress — but the assembly is only as good as the seal around the penetration. A single unsealed or poorly sealed hole will wick water into the building interior. Budget 2–3 hours for a professional roofer to seal and flash the penetration correctly.
• White Powder-Coat Finish: Integrates visually with light-colored roofing, which matters on customer-facing installations. Black mounts stand out; white ones blend. This is a small detail that influences site acceptance on commercial properties.
• NDAA Section 889 Compliance: If you're installing this on a federal or state government contract, this compliance designation is a requirement, not a bonus. Verify that your entire camera and accessory chain (camera + mount + any extension pipes) all carry this certification before procurement.

Deployment Considerations:

• Parapet Structural Capacity: Don't assume the parapet can hold the load. A Spectra pendant dome (typically 2–3 lbs) plus the pipe and bracket assembly (another 2–4 lbs depending on pipe length) is modest, but if the parapet is lightweight, deteriorated, or overshadowed by wind loads, you'll need a structural engineer to sign off. Structural failure is rare but catastrophic.
• Sealing is Non-Negotiable: The manufacturer's documentation and your roofing warranty both require proper flashing and sealant. If you skip this or do it halfway, water will find its way in within months. Roofing leaks from surveillance mounts become facility management nightmares. Always use a licensed roofer for penetration work.
• PP451-PIPE Extension: Standard configuration provides one pipe section. If your parapet is tall or you need extra standoff, the PP451-PIPE extension is available separately. Don't try to fabricate extensions; use only Pelco-certified components to maintain structural integrity and warranty.

Deploy the PP451-SW on commercial or industrial rooftops where perimeter surveillance below the parapet edge is a security requirement — loading docks, ground-level doors, vehicle circulation areas. Don't use this for interior ceiling mounts or wall-mounted applications; there are better brackets for those. And always — always — hire a professional roofer for penetration sealing. The $200–300 roofing cost is cheap insurance against a $50,000 water damage claim.
