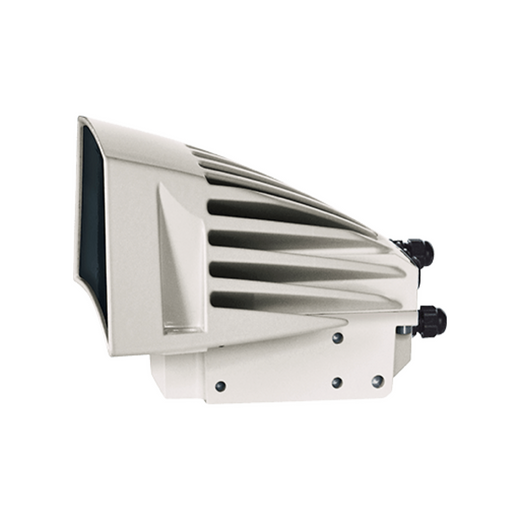

Pelco IRN30B9AS00 940nm Covert IR Illuminator

Pelco IRN30B9AS00 940nm Covert IR Illuminator

The Pelco IRN30B9AS00 is a 940nm covert infrared illuminator designed for invisible-to-the-human-eye perimeter and fence-line monitoring. With a narrow 9° beam angle and approximately 80m maximum range, this stainless steel-housed illuminator delivers focused long-range coverage for access roads, perimeter lines, and single-point monitoring zones without revealing its operation to unauthorized observers.

Key Features

• 940nm wavelength—invisible to human eye for true covert operation
• Narrow 9° beam angle concentrates illumination for focused long-range coverage
• Approximately 80m maximum illumination range
• Durable stainless steel housing for harsh outdoor environments
• Multi-voltage input: 24 Vac or 12/24 Vdc for flexible power integration
• NDAA Section 889 compliant for government and regulated installations
• 5-year warranty with global Pelco service support

Technical Highlights

Co-axial mounting with your camera ensures optimal beam alignment with the camera's field of view. For extended range applications requiring approximately 140m coverage, the IRN10B9AS00 delivers higher output in the same 9° beam. Note that 940nm infrared is less efficiently detected by CMOS sensors compared to 850nm—verify your camera's sensor sensitivity at your required deployment distance before final selection.

Applications

• Perimeter and fence-line surveillance
• Covert access road monitoring
• Single-point threat detection zones
• Government and military installations
• Critical infrastructure protection
