Pelco EC-1504U-W 4-Port PoE Extender Wall Mount
The Pelco EC-1504U-W is a compact 4-port Power over Ethernet extender designed to overcome standard Ethernet distance limitations in professional surveillance deployments. This wall-mounted accessory extends PoE power and data delivery up to 15 W per port over standard CAT5e cabling, enabling camera installations beyond the traditional 100-meter Ethernet distance constraint without requiring fiber conversion or additional intermediate switches.
Key Features
- 4-port PoE distribution with 15 W per-port output
- Wall-mount form factor for space-efficient installation
- Single upstream PoE input; powers unit and downstream cameras
- CAT5e compatible cabling support
- NDAA Section 889 compliant for regulated environments
- 1-year manufacturer warranty
Technical Specifications

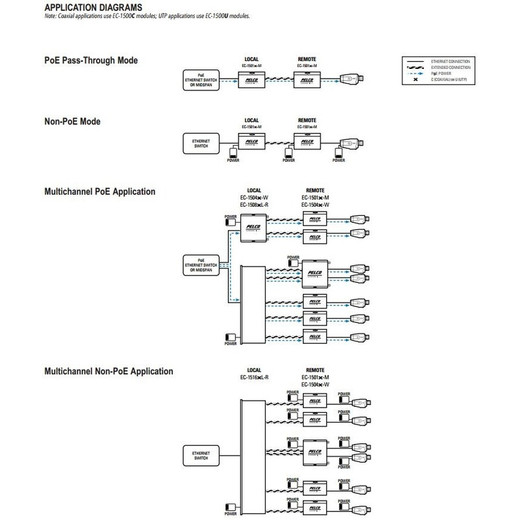

The EC-1504U-W accepts a single PoE uplink and distributes both power and data to four downstream camera ports. Each port delivers a maximum of 15 W, suitable for standard Pelco camera systems. Verify that connected cameras—including those with IR illuminators or heaters—operate within the 15 W per-port budget. Cameras requiring PoE+ (30 W) or Hi-PoE specifications exceed this unit's capacity. Confirm your upstream PoE switch provides sufficient aggregate wattage to support all four ports plus the extender's own consumption.
Applications
Ideal for extending surveillance coverage in commercial and industrial environments where camera clusters are positioned beyond standard Ethernet reach. Commonly deployed in warehouse perimeters, parking structures, and multi-building campuses requiring extended cable runs without active fiber infrastructure.
