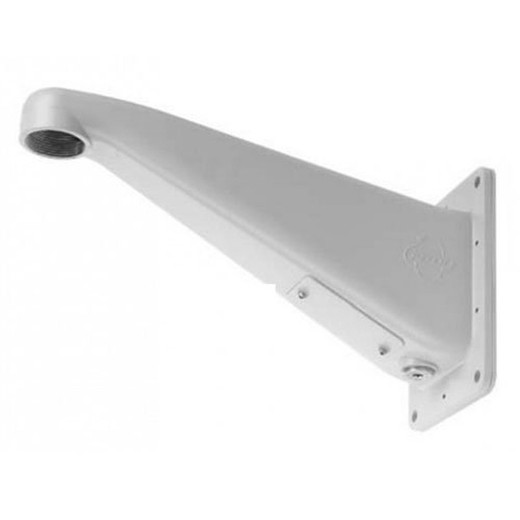

Pelco IWM-SW White Wall Mount Dome Bracket
The Pelco IWM-SW is an indoor wall mount bracket engineered for Pelco dome cameras in white finish. This is a single-bracket solution that streamlines deployment across multiple mounting configurations—wall, pole, and corner—by accepting optional adapters (PA402 pole-mount and CM400 corner-mount adapters). For integrators managing inventory across diverse installation sites, standardizing on one mount SKU reduces procurement complexity and field logistics overhead.
Key Features
- Surface Wall Mounting: Direct wall installation for clean interior deployments. Avoids the complexity of recessed or flush-mount hardware, keeping installation labor straightforward and reversible.
- Modular Adapter Ecosystem: The IWM-SW (often searched as IWM SW) accepts PA402 pole-mount and CM400 corner-mount adapters, allowing you to reconfigure the same bracket for different mounting positions without re-purchasing. Cuts SKU proliferation and simplifies spare parts inventory.
- White Finish: Matches Spectra 7 camera hardware aesthetics. White brackets blend into corporate office interiors and retail spaces better than black or gray alternatives, reducing visual clutter in customer-facing areas.
- NDAA Section 889 Compliance: Meets U.S. federal procurement requirements for government and regulated projects (defense contractors, critical infrastructure). If your buyer list includes government or federal integrators, this compliance flag is a real differentiator.
- Professional Installation Workflow Support: Engineered for enterprise-grade surveillance standards. Bracket geometry and hardware tolerances support repeatable installation across multiple technicians and sites—a real factor when managing large deployments.
- Alternative Color Options: Light gray (IWM-SR) and gray (IWM-GY) versions are available if white doesn't match your interior aesthetic. Consistency across color variants simplifies training and spare parts management.
Compatibility & Integration
The IWM-SW is engineered for seamless integration with Pelco IP cameras and Pelco Camera Systems. Before ordering, confirm compatibility with your specific dome camera model—Pelco's customer documentation includes a compatibility matrix by camera line. The bracket accepts industry-standard fastening hardware; no proprietary tools are required for installation.
For installations requiring alternative mounting solutions, evaluate whether a pole-mount or corner-mount adapter will be needed at deployment time. Procuring adapters upfront reduces site visits and scheduling delays.
Environment & Limitations
Indoor-rated only—this bracket is not sealed or rated for weather exposure. Outdoor installations, covered outdoor areas (soffits, overhangs), or humid environments (swimming pools, greenhouses) require environmentally rated mounts with IP66 or higher enclosure protection. Confirm the installation environment before committing.
The white finish may show dust or smudging in high-traffic areas. Specify cleaning protocols during handoff if the camera is in a visibly prominent location.
Warranty & Support
Backed by Pelco's 1-year warranty. Supported through authorized distributor channels, ensuring spare parts availability and technical support when questions arise post-deployment.
Frequently Asked Questions
Q: Is the Pelco IWM-SW NDAA Section 889 compliant?
A: Yes. The IWM-SW is NDAA Section 889 compliant and is approved for government and federally regulated procurement.
Q: What dome camera models are compatible with the IWM-SW?
A: The IWM-SW is designed for Pelco dome cameras. Consult the Pelco compatibility matrix for your specific camera line before ordering to confirm fit and load rating.
Q: Can I use the IWM-SW outdoors?
A: No. The IWM-SW is indoor-rated only. Outdoor or covered outdoor installations require an environmentally sealed mount.
Q: Do the PA402 pole-mount and CM400 corner-mount adapters come included?
A: No. The PA402 and CM400 are optional adapters purchased separately. The IWM-SW bracket alone supports wall mounting.
Q: What is the warranty on the Pelco IWM-SW?
A: The IWM-SW is backed by Pelco's 1-year warranty and is supported through authorized distributor channels.
Q: Are other color finishes available?
A: Yes. The IWM-SR (light gray) and IWM-GY (gray) variants are available for environments where white does not match interior aesthetics.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Pelco IWM-SW is a straightforward mounting solution that solves a real problem on larger deployments: reducing SKU count without sacrificing flexibility. The modular adapter design—accepting PA402 pole-mount and CM400 corner-mount options—means your integrators can standardize on a single bracket across wall, pole, and corner positions. On a 50-camera retail rollout, that's inventory discipline and fewer field callbacks.
Technical Highlights:
- Modular Ecosystem: One bracket SKU with optional adapters replaces three separate mounts. Real cost savings on procurement, warehousing, and technician training across multi-site deployments.
- NDAA Section 889 Compliance: If you're selling into government, critical infrastructure, or defense contracts, this badge matters. No late-discovery compliance rework on federal projects.
- White Finish: Matches Spectra 7 hardware and blends into corporate interiors. Aesthetic consistency reduces customer friction in customer-facing retail or office spaces.
Deployment Considerations:
- Indoor-Only Rating: Do not use this bracket for outdoor, covered outdoor, or humid-environment installations. A single misplaced bracket in a loading dock or greenhouse becomes a warranty dispute and a service call.
- Adapter Lead Time: If PA402 or CM400 adapters are needed, confirm availability and lead time at procurement. Don't discover at site visit that the pole adapter is on backorder.
Best fit: standardized corporate office, retail, or institutional interiors where white aesthetics matter and flexibility across wall/pole/corner configurations simplifies rollout logistics. Skip this if you need a single outdoor mount or if your sites demand color matching to gray or black hardware.
