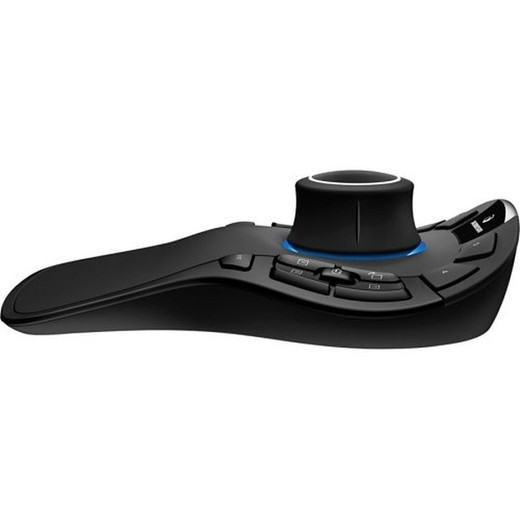

Pelco 3DX-600-3DMOUSE 6-Axis PTZ Joystick

Pelco 3DX-600-3DMOUSE 6-Axis PTZ Joystick

The Pelco 3DX-600-3DMOUSE is a professional control input device designed to replace keyboard-and-mouse workflows for PTZ camera operation on VideoXpert VMS workstations. Unlike traditional mouse controls that force sequential adjustments, this six-axis joystick enables simultaneous pan, tilt, and zoom inputs — meaning an operator can track a moving subject smoothly while adjusting field of view in a single, fluid gesture. For control-room staff managing multiple PTZ assets during extended shifts, that responsiveness translates directly into faster incident response and reduced operator fatigue.

Key Features

• Six-axis motion input: Simultaneous pan, tilt, and zoom control cuts multi-step camera adjustments into single inputs. Rather than pan, wait, then tilt, then zoom separately, an operator can execute all three at once — critical when tracking subjects across a scene in real time.
• USB connectivity: Plug-and-play integration via standard USB port. No separate power supply or network configuration required — connect to any VideoXpert workstation and configure within the VMS interface.
• Ergonomic form factor: Designed for 24/7 control-room environments where operators sit at dedicated stations. Reduces hand strain and wrist fatigue compared to extended keyboard-and-mouse workflows, lowering repetitive stress during 8+ hour shifts.
• VideoXpert VMS integration: Native support within Pelco's VideoXpert platform. The Pelco camera system ecosystem recognizes the 3DX-600-3DMOUSE without third-party driver complications, streamlining deployment in mixed Pelco environments.
• NDAA Section 889 compliance: Meets U.S. federal procurement regulations for government, airport, and regulated-sector deployments. If your facility operates under defense or critical-infrastructure mandates, this device satisfies supply-chain documentation requirements.
• Complements keyboard workflows: Designed as a secondary input device. Operators retain keyboard access for menu navigation, preset recall, and system administration — the joystick handles live PTZ control exclusively.

Integration and Deployment Context

This accessory is purpose-built for dedicated control stations in airports, transit hubs, retail command centers, and enterprise security operations. Installation is straightforward: plug the USB connector into a workstation port running VideoXpert, verify driver installation (requirements depend on your VMS build), and configure axis mapping within the software. Facilities with mixed PTZ brands may find the learning curve steeper if Pelco cameras represent only part of the fleet — check your VMS documentation to confirm multi-vendor PTZ support before deploying the 3DX-600-3DMOUSE across heterogeneous camera networks.

For sites without a dedicated control room or those prioritizing mobile/flexible operator access, a standard keyboard-and-mouse setup or mobile VMS client may be a better fit. This device excels in stationary, high-volume PTZ environments where an operator manages the same handful of cameras across long operational windows.

Warranty and Compliance

Includes 1-year manufacturer warranty covering hardware defects. NDAA Section 889 compliance documented for regulated procurement cycles.

Frequently Asked Questions

Q: Does the 3DX-600-3DMOUSE work with non-Pelco PTZ cameras?

A: Primary integration is with Pelco cameras and VideoXpert VMS. Multi-vendor PTZ support depends on your VMS platform's ONVIF or vendor-specific API capabilities. Consult your VideoXpert documentation or contact your integrator before deploying this joystick in mixed-brand environments.

Q: What operating systems does the 3DX-600-3DMOUSE support?

A: Compatible with VideoXpert VMS workstations. Verify compatibility with your specific VMS version and workstation OS (Windows configurations typical) before deployment. Driver installation may be required depending on your VMS build.

Q: Is the 3DX-600-3DMOUSE NDAA Section 889 compliant?

A: Yes. It meets NDAA Section 889 requirements for federal and regulated-sector procurement.

Q: Can I use the 3DX-600-3DMOUSE as a replacement for a keyboard and mouse?

A: No. This device is designed to complement keyboard and mouse workflows, not replace them. Operators retain keyboard access for menu navigation and system administration while using the joystick exclusively for live PTZ control.

Q: What is the warranty on the 3DX-600-3DMOUSE?

A: 1-year manufacturer warranty covering hardware defects.

Q: Do I need a separate power supply for the 3DX-600-3DMOUSE?

A: No. USB connectivity provides all necessary power. Simply plug the device into an available USB port on your workstation.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Pelco 3DX-600-3DMOUSE solves a real control-room pain point: keyboard-and-mouse PTZ workflows force operators into sequential adjustments when they need parallel ones. Six-axis simultaneous input means your team can track motion, adjust zoom, and fine-tune framing in a single gesture — a measurable productivity gain for high-volume monitoring environments. That said, this is an accessory, not a standalone solution, and it only unlocks its benefit within a Pelco-centric architecture.

Technical Highlights:

• Six-axis simultaneous control: Pan, tilt, and zoom adjustments execute in parallel rather than sequentially. In a live incident scenario, that's the difference between reacting in seconds and reacting in steps — operationally significant.
• USB plug-and-play architecture: No custom cabling, no network configuration, no power negotiation. Reduces deployment friction and minimizes integration labor on workstation builds.
• NDAA Section 889 compliance: Built-in regulatory clearance eliminates a compliance checkbox for federal and critical-infrastructure customers — valuable if your client base skews government or DoD-adjacent.

Deployment Considerations:

• VideoXpert VMS version lock: The 3DX-600-3DMOUSE is optimized for Pelco's ecosystem. If your customer runs Milestone, Genetec, or another third-party VMS with Pelco cameras, this joystick may require custom driver work or won't function at all. Verify VMS compatibility before procurement.
• Dedicated-station only: This is not a mobile-friendly or flexible-workspace device. It assumes an operator sits at a fixed control console. If your facility is shifting toward portable tablets or roaming operator models, this accessory doesn't fit that workflow.
• Keyboard retention: It's a PTZ control supplement, not a replacement. Your operators still need keyboard access for presets, menu navigation, and admin functions. Plan workstation layouts accordingly — dual input devices add footprint and cable management complexity.

Best fit: Transit authority or airport command centers where dedicated operators manage a stable set of PTZ cameras 24/7, Pelco cameras are the primary brand, and VideoXpert is the approved VMS. Avoid if you're running mixed-brand cameras or planning to migrate to a non-Pelco platform in the next 2–3 years.
