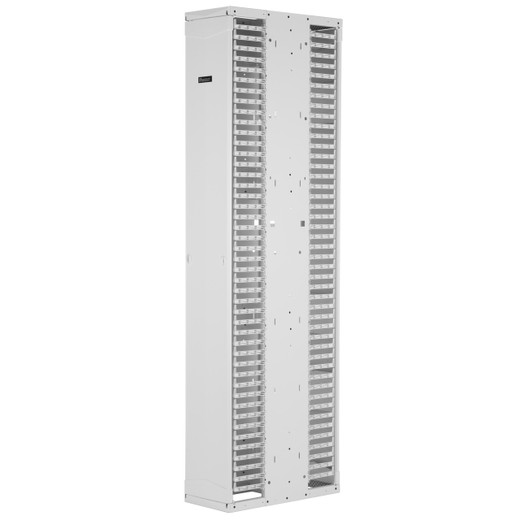

Panduit PE2VD12WH PatchRunner 2 Enhanced Vertical Cable Manager

The Panduit PE2VD12WH is a 45 RU double-sided vertical cable manager engineered for ultra-high-density patch environments where traditional single-sided managers bottleneck at modern 48-port switch deployments. The PatchRunner 2 Enhanced design delivers zero-RU patching capacity—cables route vertically without consuming rack unit space—while dual hinged push-close doors provide tool-free access to organized bundles without disturbing adjacent infrastructure. Ships partially assembled for faster deployment in time-sensitive datacenter builds and IT closet retrofits.

Key Features

• 45 RU coverage with 15 bonus vertical RU capacity for overflow routing and service loops
• 12-inch wide double-sided design handles dense Cat6A/fiber bundles from dual in-row switch stacks
• Metal backbone with molded plastic fingers prevents cable kinking at bend radius transitions
• Dual hinged metal doors span full length—push-close latching, no tools required for MACs
• White powder-coat finish matches standard rack aesthetics in customer-facing server rooms
• UL 2416 and CSA C22.2 No. 214 listed for commercial electrical equipment enclosures

High-density network deployments—10GbE aggregation layers, SAN fabric interconnects, distributed antenna systems—generate cable counts that overwhelm horizontal managers and steal valuable RU from active gear. The PE2VD12WH's zero-RU vertical routing keeps cables off the rear mounting rails while the 12-inch depth accommodates the larger bend radius requirements of shielded Cat6A and OM4 fiber trunk assemblies. Molded plastic fingers on both sides grip cables in organized layers; the metal backbone provides structural rigidity under full load without sagging that causes cable stress at the top and bottom termination points.

The dual hinged door design is purpose-built for operational access. Each door spans the full 83.9-inch height and latches with a push-close mechanism—no screws, thumbscrews, or clips that get lost during MACs. Open one side to access a specific cable bundle without exposing or disturbing the opposite side's routing. The metal construction prevents door flex that can snag cables during closure, and the hinge design supports thousands of open/close cycles without binding. Partially pre-assembled configuration reduces install time—mount the backbone, snap the fingers into place, hang the doors, done. No field assembly of 90+ small parts like legacy models.

Designed for 19-inch and 23-inch EIA racks, the PE2VD12WH mounts to standard #12-24 threaded rack holes with included hardware. The 15 bonus vertical RU—extra capacity beyond the 45 RU nominal height—provides space for service loops at top-of-rack switches and slack management for future MACs without re-routing entire bundles. UL 2416 listing covers use in electrical equipment enclosures; CSA C22.2 certification meets Canadian commercial building codes. RoHS compliant for EU and California installations. White finish integrates with white rack frames in customer-visible server rooms and network operation centers where black infrastructure would stand out.
