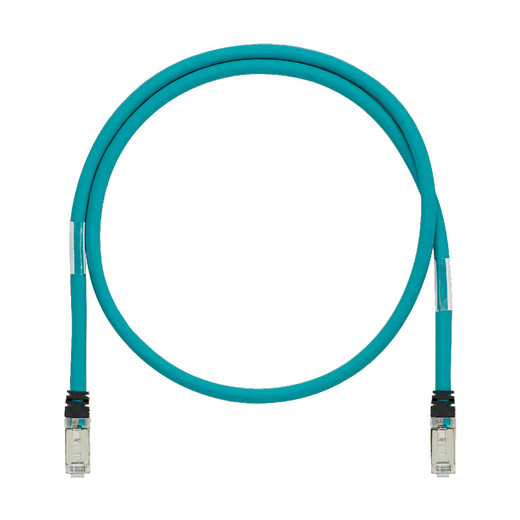

Panduit ISTPH6X1.5MTL Cat6A 600V Shielded Patch 1.5m Teal

Panduit ISTPH6X1.5MTL IndustrialNET Cat6A 600V Shielded Patch Cord

The Panduit ISTPH6X1.5MTL delivers purpose-built connectivity for industrial automation, control panel installations, and harsh-environment Ethernet deployments where standard commercial patch cords fail. This 1.5-meter Cat6A shielded patch cord is UL-rated for 600-volt environments under AWM Style 2463, making it compliant for direct mounting inside control panels alongside motor drives, VFDs, and high-voltage distribution equipment. The 26 AWG stranded copper construction provides the flex life required for robotic arms, C-track cable management systems, and moving-gantry applications, while the SF/UTP shielded design blocks EMI from variable-frequency drives and inductive loads that destroy unshielded Ethernet links in factory settings.

Key Features

• UL AWM Style 2463 rated for 600V 80°C operation in control panels and industrial enclosures
• Cat6A shielded (SF/UTP) construction exceeds ANSI/TIA-568-C.2 and ISO 11801 Class Ea for 10GBASE-T support
• 26 AWG stranded conductors engineered for high-flex robotic and C-track installations
• IEEE 802.3af/at PoE+ compliant for powering industrial IP cameras, access points, and VoIP endpoints
• Teal jacket for rapid visual identification in mixed-voltage cabinet wiring
• UL 1863 approved; meets ANSI/TIA-968-A and IEC 60603-7 modular plug standards

Industrial Ethernet protocols like EtherNet/IP, PROFINET, and Modbus TCP demand deterministic latency and zero dropped packets — requirements that become impossible when EMI from PWM motor controllers or arc welders corrupts the physical layer. The ISTPH6X1.5MTL's foil shield provides 360-degree coverage around all four twisted pairs, maintaining signal integrity in electrical cabinets where conducted and radiated noise levels exceed 10 V/m. Unlike commercial shielded cords that use bulky drain wires incompatible with tight-radius industrial connectors, Panduit's IndustrialNET design integrates the shield termination directly into the RJ45 plug assembly, allowing 90-degree bend radii under 25mm without shield discontinuity. This matters in DIN-rail-mounted Ethernet switches and compact PLC racks where every millimeter of panel depth is allocated.

The 600-volt UL rating addresses a frequent code-compliance issue in North American industrial installations: NEC Article 725 and UL 508A require that all wiring inside the same enclosure as Class 1 power circuits (anything over 30V or 1000VA) must carry equivalent voltage ratings, even if the wire itself only handles low-voltage data. Standard Cat6A patch cords rated at 150V or 300V fail panel inspection when routed alongside 480VAC three-phase feeds to motor starters. The ISTPH6X1.5MTL solves this by meeting UL's 600V dielectric test requirements, eliminating the need for segregated cable trays or expensive barriers inside control cabinets. This is equally critical for DC-bus systems in battery rooms and solar installations, where nominal voltages can hit 600VDC under float-charge conditions.

Stranded 26 AWG conductors are specified here instead of solid 23 AWG because industrial applications involve constant movement: gantry-mounted barcode scanners on warehouse automated storage systems, Ethernet-connected servo drives on pick-and-place robots, and drag-chain cable runs on CNC machine tools. Panduit's flex-life testing per UL 1581 demonstrates >100,000 bend cycles at the conductor level, whereas solid-core Cat6A fails catastrophically under repeated flexing due to work-hardening and fracture. The trade-off is slightly higher insertion loss (the spec allows 26 AWG stranded up to 2.0 dB per channel vs. 1.5 dB for solid), but this is negligible on 1.5-meter runs and far preferable to a broken conductor that brings down an entire production line during a shift.

Compliance with IEEE 802.3at PoE+ (25.5W at the device) extends this cord's utility to industrial IP surveillance cameras, wireless access points in warehouse mezzanines, and hardened VoIP phones on factory floors. The combination of Cat6A bandwidth and shielding ensures that even under full PoE+ load — which elevates conductor temperature and can degrade crosstalk performance in marginal cables — the link sustains 10GBASE-T speeds for future-proofing automation networks migrating from 1G to 10G backbones. Teal jacketing provides instant visual differentiation from yellow (security/surveillance), blue (voice), or gray (standard IT) cords in crowded terminal blocks, reducing troubleshooting time when an integrator is tracing circuits under deadline during a plant expansion.
