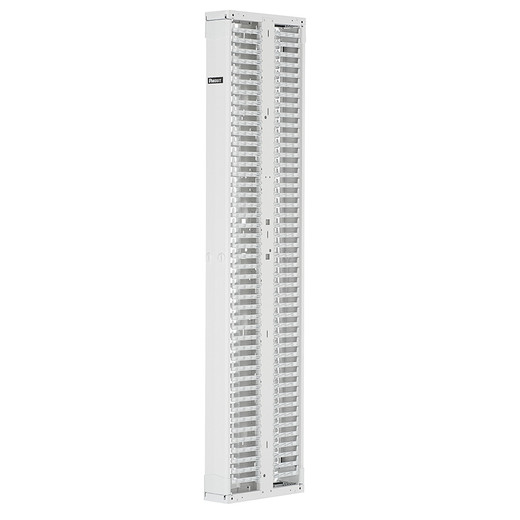

Panduit PR2VD0696WH Vertical Dual-Sided Cable Manager, 52RU, 6-Inch Wide

The Panduit PR2VD0696WH is a 52RU, 6-inch-wide vertical dual-sided cable manager from the Panduit PatchRunner 2 line, engineered for high-density data center and telecom rack environments where cable organization directly affects airflow, serviceability, and uptime. At 95.88 inches tall (2,435.2 mm), this manager spans the full height of a 52RU rack and ships fully pre-assembled — no field assembly required, which reduces rack build time and lowers total installation cost per bay.

Overview

Vertical cable managers are often an afterthought in rack planning, but at 52RU densities, unmanaged cabling becomes a maintenance liability. The PR2VD0696WH addresses this with a metal backbone fitted with molded plastic cable fingers — providing structured routing lanes that keep patch cords off equipment intakes and exhausts. The dual metal hinged push-close doors run the full length of the manager, protecting cabling from accidental pulls and keeping the front of the rack visually clean without requiring tools to open for moves, adds, and changes. The white finish matches standard white rack systems and aids visibility in brightly lit data center aisles.

Key Features

• 52RU Full-Height Coverage: At 95.88 inches (2,435.2 mm), this manager routes cables across every U-space in a 52RU rack without mid-run transitions — eliminating the cable gap zones that create snag points and airflow restrictions in taller cabinets.
• Metal Backbone with Molded Plastic Fingers: The combination of a rigid metal spine and formed plastic routing fingers gives you structural stability for heavy patch cord bundles while protecting individual cable jackets from abrasion — a meaningful difference versus all-plastic managers under high cable counts.
• Dual Metal Hinged Push-Close Doors: Two independently operable doors with push-close hinges span the full length of the manager, meaning you can open one section for MACs without disturbing the rest of the routed bundle. No latches, no tools — relevant when you're doing frequent patch changes in a live environment.
• 6-Inch Width: The 152.4 mm (6-inch) channel depth provides enough room to manage high-density copper or fiber bundles without exceeding typical aisle clearance, keeping cable slack neatly contained rather than coiled externally.
• Pre-Assembled Delivery: Ships ready to install — no hardware assembly, no components to misplace on the data center floor. For high-volume rack deployments, this directly reduces per-rack labor time.
• Compatible with 19-Inch and 23-Inch EIA Racks: Designed for use with 52RU 19-inch and 23-inch EIA-standard racks, this manager integrates without custom brackets into the most common rack form factors in commercial and enterprise data centers.
• RoHS Compliant: Meets RoHS requirements — relevant for deployments in regulated environments or for organizations with environmental procurement standards.

Integration & Compatibility

The PR2VD0696WH is rated for 52RU 19-inch and 23-inch EIA rack systems. Panduit notes compatibility with competing manager SKUs from other vendors (cross-reference: 32620-E15, 35521-E15) for organizations evaluating direct replacements in existing rack infrastructure. As part of the Panduit PatchRunner 2 vertical cable management system, this unit pairs with Panduit horizontal managers, patch panels, and fiber distribution hardware for structured end-to-end cable plant builds. For network cabinet and enclosure planning, coordinate the manager width and door clearance against your specific rack column and side-panel configuration before ordering.

Frequently Asked Questions

Q: What rack sizes is the PR2VD0696WH compatible with?

A: The PR2VD0696WH is designed for use with 52RU 19-inch and 23-inch EIA standard racks. Verify your rack's vertical rail spacing before ordering.

Q: Does the PR2VD0696WH require any assembly before installation?

A: No. The PR2VD0696WH ships fully pre-assembled, ready to mount directly onto the rack — no component assembly required in the field.

Q: What are the physical dimensions of the PR2VD0696WH?

A: The manager measures 95.88 inches (2,435.2 mm) in height and 6 inches (152.4 mm) in width.

Q: Is the PR2VD0696WH RoHS compliant?

A: Yes, the PR2VD0696WH meets RoHS compliance requirements as noted in its standards documentation.

Q: How do the doors on the PR2VD0696WH operate?

A: The manager features two metal dual-hinged push-close doors that span the full length of the unit. No tools or latches are required — push to close, pull to open, allowing quick access for cable moves, adds, and changes.

Q: Can the PR2VD0696WH replace cable managers from other brands?

A: Panduit lists competitor cross-references 32620-E15 and 35521-E15 as comparable models. Verify mechanical fit against your specific rack and existing hardware before treating these as drop-in replacements.

Ted Perry

When I spec vertical cable managers for high-density builds, full-height pre-assembled units like the PR2VD0696WH consistently save field labor versus bolt-together alternatives — and on a 52RU rack that's nearly eight feet of cable channel you're not assembling piece by piece on the data center floor. The 6-inch width is the key sizing decision here: wide enough to handle substantial patch cord bundles without blowing your aisle clearance budget.

Technical Highlights:

• 95.88-Inch Pre-Assembled Height: Covers all 52RU without mid-height breaks or transition hardware — important when you're routing high counts of structured cabling from top-of-rack switches down to patch panels without creating slack traps.
• Dual Metal Hinged Push-Close Doors: Two independently operated doors mean you can access the upper half of a live bundle without disturbing the lower runs — practical on production racks where minimizing cable disruption matters.
• Metal Backbone Construction: The rigid spine handles the mechanical load of dense patch cord bundles without bowing, which matters on tall free-standing rack installations where an all-plastic manager might flex under load over time.

Deployment Considerations:

• Confirm aisle clearance against the 6-inch (152.4 mm) channel width plus door swing before committing to a row of these — in tightly spaced two-post relay rack rows, door clearance can be the deciding constraint.
• This manager is rated for 19-inch and 23-inch EIA racks at 52RU; it is not a fit for open-frame two-post racks or non-EIA-standard enclosures — verify your rack's rail format before ordering.

This is the right specification for enterprise MDF/IDF builds on 52RU cabinets where you're managing high patch cord density and need door protection with tool-free access — specifically in financial data centers, large campus network rooms, or co-location environments where MACs happen regularly and cable discipline directly affects troubleshooting speed.
