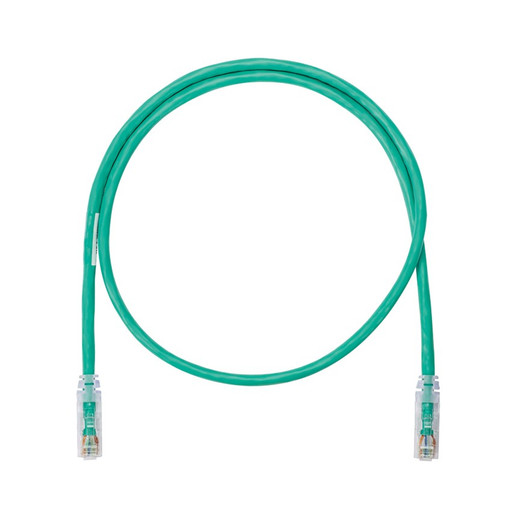

Panduit NK6APC5GR Patch Cord

Overview

The Panduit NetKey NK6APC5GR is a 5-foot, green, Category 6A unshielded twisted pair (UTP) patch cord. It's constructed with 26 AWG stranded CM/LSZH cable and features enhanced performance modular plugs. The integrated tangle-free latch prevents snags and simplifies moves, adds, and changes, while the slender strain relief boot is designed for high-density environments. This cord is engineered for 10GBASE-T Ethernet and supports IEEE 802.3bt PoE++ applications, making it suitable for data center I/O consolidation, server virtualization, and high-speed computing backbones.

Compatibility

This patch cord is designed to exceed ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for frequencies up to 500 MHz. It is wired for compatibility with both T568A and T568B schemes. The 26 AWG stranded conductor gauge and modular plug connectors ensure broad compatibility with standard network equipment, switches, and patch panels supporting Category 6A performance. It specifically supports IEEE 802.3af, 802.3at, and 802.3bt (Type 3 and Type 4) Power over Ethernet applications.

Installation Notes

The slender strain relief boot on the NK6APC5GR facilitates easy insertion and removal in high-density racks and cabinets. The patented tangle-free latch mechanism allows for quick and easy disconnection without snagging on adjacent cables, which is critical in environments with frequent network reconfiguration. The CM/LSZH (Cable, Communications, Low Smoke Zero Halogen) flammability rating meets safety requirements for plenum and riser applications.
