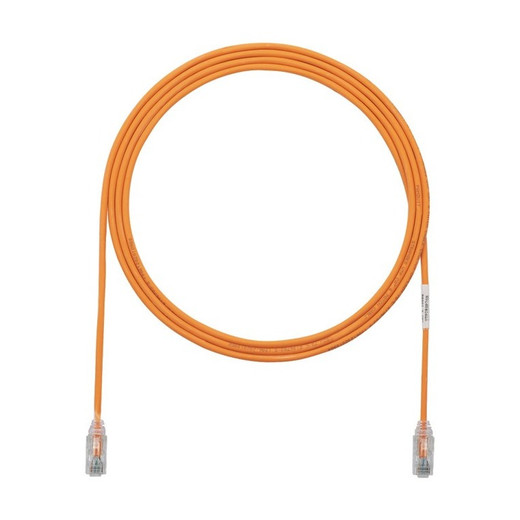

Panduit UTP28SP6INOR Cat 6 28AWG Patch Cord 6" Orange

Panduit UTP28SP6INOR Cat 6 UTP Patch Cord

The Panduit TX6-28 UTP28SP6INOR delivers high-density Cat 6 connectivity for IP camera racks, access control panels, and network closets where airflow, cable management, and PoE capacity determine uptime. This 6-inch, 28 AWG unshielded twisted pair patch cord supports 802.3bt Type 3 and Type 4 PoE applications (up to 90W) in 24-cable bundles, making it the go-to short jumper for multi-camera switch installations, PoE injector cross-connects, and top-of-rack patching in 1U and 2U environments. The 0.150-inch diameter—48% smaller than standard 24 AWG cords—reduces congestion, improves cooling, and simplifies MAC work in fully populated 48-port switches. RapidID pre-installed barcodes enable one-scan port documentation with Panduit's RapidID software, eliminating manual labeling and as-built drawing errors on commercial security projects.

Key Features

• 28 AWG Stranded Copper Construction: 0.150-inch (3.8mm) diameter reduces bundle volume by 48% vs. 24 AWG cords, improving airflow around PoE switches and injectors in enclosed racks
• 802.3bt Type 3/Type 4 PoE Support: Supports up to 90W PoE delivery in 24-cable bundles; 802.3af/at (25.5W/30W) in 48-cable bundles per ANSI/TIA standards
• 6-Inch Length for Adjacent Patching: Purpose-built for camera switch to PoE extender, panel patch to network switch, or cross-connects between stacked 1U equipment
• RapidID Barcode Integration: Pre-installed unique barcodes work with Panduit RapidID software for instant port mapping, eliminating hand-labeled patch documentation errors
• Tangle-Free Latch Design: Patented snag-proof latch allows one-hand release and prevents cable-bundle entanglement during moves, adds, and changes
• CM/LSZH Dual Rating: Meets both plenum-substitute and low-smoke zero-halogen requirements for flexible installation in commercial buildings and datacenters

High-density IP camera installations create thermal and physical challenges in network closets. A 48-port PoE switch feeding PTZ cameras, multi-sensor models, or AI appliances can draw 800W to 1,500W, and traditional 24 AWG patch cord bundles trap heat around the switch exhaust. The UTP28SP6INOR's 28 AWG stranded design reduces the cross-sectional area of a 48-cable bundle by nearly half, allowing air to flow through the vertical cable managers and around the switch chassis. For 802.3bt Type 3 (60W) and Type 4 (90W) applications—common with PTZ cameras, high-power access points, and LED lighting controllers—ANSI/TIA-1096-A limits bundle sizes to 24 cables. The TX6-28 line is tested and certified for these bundling scenarios, so integrators can trust that a 24-camera PoE deployment won't exceed current-carrying or heat-dissipation limits. The integral pair manager inside each RJ45 plug maintains the twist rate and pair geometry through the termination point, ensuring the cord exceeds ANSI/TIA-568.2-D Category 6 insertion loss and return loss margins across the full 1–250 MHz bandwidth. Every cord is 100% factory-tested for wire map, NEXT, and return loss, and ships with a serialized test report accessible via the RapidID barcode.

The 6-inch form factor targets three deployment scenarios: (1) short patch from a camera switch to a co-located PoE midspan or media converter in the same rack; (2) cross-connect between a patch panel and a 1U switch when both are mounted in adjacent rack units; (3) direct camera-to-injector patching in small equipment enclosures where a 1-foot cord creates excess slack. The tangle-free latch—a Panduit-patented design—prevents the plug from snagging on adjacent cables when you're working in a fully populated 48-port switch, and the latch releases with thumb pressure instead of requiring a fingernail or pick tool. RapidID barcodes are laser-etched onto the plug body and encoded with a unique serial number. When you scan the barcode using Panduit's RapidID mobile app or handheld scanner, the software logs the port location, switch name, and endpoint device, then generates an as-built port map and exports it to Excel, Visio, or your DCIM platform. This workflow is standard on government and university projects where contract deliverables include verified documentation, and it eliminates the mystery-cable problem during adds and changes six months after installation.

The UTP28SP6INOR exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E electrical performance requirements for frequencies up to 250 MHz, and meets ANSI/TIA-1096-A (formerly FCC Part 68 subpart F) for balanced twisted-pair transmission. The cord is cULus Listed to UL 1863 and CAN/CSA-C22.2 No. 214 (UL File E129886), and the CM/LSZH jacket satisfies NEC Article 800 communications cable requirements and IEC 60332-1 flame propagation limits. For integrators spec'ing IP camera systems, access control networks, or A/V-over-IP installations in commercial buildings, the TX6-28 line ensures that short patch cords meet the same Category 6 performance and safety standards as the backbone horizontal cable, preventing the weakest-link failures that occur when installers substitute consumer-grade patch cords to save a few dollars per drop.
