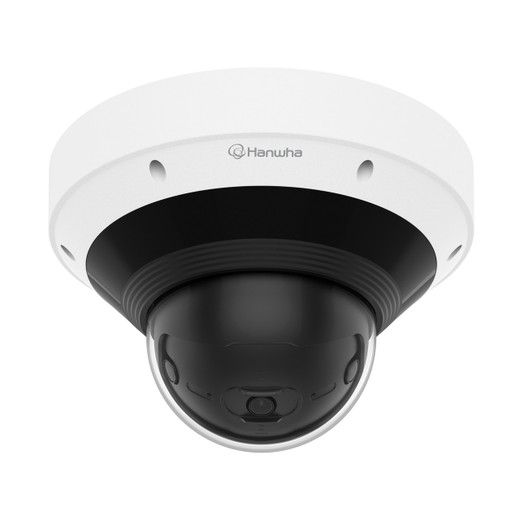

Hanwha PNM-A13022RV 13MP Panoramic Multi-Sensor Dome Camera

The Hanwha PNM-A13022RV is a 13MP panoramic multi-sensor dome camera engineered for comprehensive wide-area outdoor surveillance. Combining four integrated sensors with alpha blending stitching technology, this camera delivers seamless 194° horizontal and 93° vertical panoramic coverage in a single compact unit—eliminating blind spots and reducing installation complexity inherent to traditional multi-camera systems. Built for demanding outdoor environments with IP66 weatherproofing, IK10 vandal resistance, and NEMA 4X construction, it operates reliably across -40°C to +55°C temperature ranges.

Key Features

• 13MP Panoramic Resolution: Delivers high-definition stitched panoramic imagery at 30 fps with alpha blending correction for seamless detail across ultra-wide field of view
• Ultra-Wide Coverage: 194° horizontal × 93° vertical panoramic view in single camera, eliminating coverage gaps inherent to multi-camera deployments
• Extreme WDR (120 dB): Forensic-grade wide dynamic range maintains detail in both bright sunlit areas and deep shadows simultaneously for mixed-lighting outdoor environments
• Built-in IR Night Vision: Integrated infrared illumination with 5m viewable range provides reliable low-light detection without external lighting
• Day/Night Functionality: Automatic day/night switching ensures consistent surveillance across 24-hour cycles
• PoE+ Power: 802.3at PoE+ (Class 4) eliminates need for separate power infrastructure, simplifying installation
• H.265 Video Compression: Advanced codec reduces bandwidth and storage requirements while maintaining forensic image quality
• Multi-Codec Support: H.265, H.264, and MJPEG options for flexible system integration
• ONVIF Compliance: Standards-based compatibility ensures seamless integration with third-party VMS platforms
• MicroSD Storage: Local recording capability provides failsafe backup independent of network infrastructure
• HTTPS Encryption: Secure data transmission protects video streams and system access
• Flexible Connectivity: Ethernet, Wi-Fi, and USB options support varied deployment scenarios

Technical Highlights

• Form Factor: Dome (low-profile, vandal-resistant design)
• Resolution: 13 megapixels
• IP Rating: IP66 (full dust and water jet protection)
• Vandal Rating: IK10 (extreme impact resistance)
• Power Type: PoE+ 802.3at, 4-watt draw
• Video Compression: H.265 primary, H.264/MJPEG alternatives
• Night Vision: IR-based with 5m effective range
• Dynamic Range: 120 dB WDR for high-contrast scenes

Ideal Applications

• Urban street and intersection monitoring
• Public parks and recreational area surveillance
• Parking lot and facility perimeter coverage
• Transportation hubs (stations, bus terminals)
• Large open-area security deployments
• Critical infrastructure protection requiring panoramic awareness

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The PNM-A13022RV represents a significant advancement in panoramic surveillance technology. Its quad-sensor architecture with alpha blending stitching eliminates the geometric distortion and coverage gaps common in traditional multi-camera arrays, delivering forensic-grade panoramic imaging without blind spots. The 120 dB WDR performance is exceptional for outdoor environments where sunlit areas and shadow zones create extreme contrast—critical for urban and parking applications where both faces and vehicle plates must remain legible simultaneously.

PoE+ power integration and H.265 compression reduce total cost of ownership by minimizing infrastructure requirements and storage overhead. ONVIF compliance and multiple codec support ensure vendor flexibility in existing system expansions, while local microSD recording provides critical failsafe capability for network disruptions. The IK10 and IP66 ratings confirm rugged outdoor durability without compromise to optical performance.
