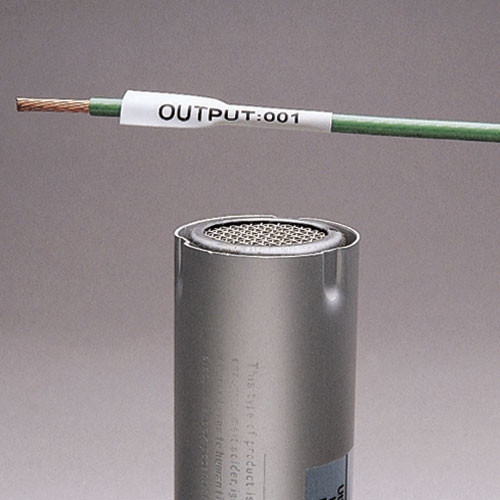

Panduit H000X064H1C P1 Continuous Heat Shrink Label Cassette

The Panduit H000X064H1C is a military-grade polyolefin continuous heat-shrink label cassette in the P1™ family, designed for wire and cable identification in demanding industrial, defense, and security infrastructure environments. At 0.64" (16.3 mm) wide and 6 feet (1.8 m) long per cassette, it cuts to any length you need — eliminating pre-sized label waste on variable-diameter cable runs. The 3:1 shrink ratio means it starts at 0.64" and shrinks tightly around cable diameters from 0.13" to 0.38" (3.3–9.7 mm), giving you a firm, professional-grade sleeve regardless of cable gauge variation across a panel.

Key Features

• Military-Grade Polyolefin Construction: Meets MIL-M-81531 and MIL-STD-202G Method 215K (Solutions A, C, and D) — meaning these labels are tested for resistance to fluids, heat, and mechanical stress per defense standards. If your installation is in a control room, utility closet, or field enclosure where chemical exposure or temperature cycling is a real concern, this isn't a cosmetic upgrade; it's a specification requirement.
• UL Standard 224 Flammability Rating: Listed under UL 224, which covers extruded insulating tubing for flammability — relevant for any installation where NEC or local fire codes govern the wire identification materials you can use in enclosed spaces or plenums.
• 3:1 Shrink Ratio, 0.13"–0.38" Cable Range: A 3:1 ratio gives you flexibility across a wider cable diameter range than 2:1 products. For a panel with mixed 18AWG signal wires and 12AWG power runs, one cassette width handles both without swapping stock.
• Continuous Cut-to-Length Format: Unlike discrete pre-cut label packs, the continuous cassette format means you set the length at print time. For longer service loops or custom splice identifiers, you're not forced to stack multiple labels or leave gaps — print exactly what the job requires.
• Integrated Memory Device — Auto-Formatting and Last-Legend Recall: The cassette embeds a memory chip that tells the LS8E or LS8EQ printer what media is loaded, auto-formats the print job, and remembers the last legend used and how many labels remain. In a fast-paced termination workflow, this eliminates manual media setup and reduces misprints from wrong size selections.
• Compatible with Easy-Mark Plus™ Labeling Software: Integrates directly with Panduit's Easy-Mark Plus software, so label templates — cable IDs, panel schedules, circuit identifiers — translate directly to print without manual reformatting between design and output.
• White Color for High-Contrast Printing: White substrate gives maximum contrast for black thermal-transfer printing, keeping identification legible under fluorescent lighting, in low-light cable trays, or when photographed for as-built documentation.

Integration and Compatibility

The H000X064H1C is designed for use exclusively with the Panduit LS8E and LS8EQ portable label printers. It is not a universal cassette — verify your printer model before ordering. The cassette works within the P1™ system alongside Easy-Mark Plus™ Labeling Software for template-driven label production. Competitor cross-references include Brady HSE241 and HellermannTyton XPS-375-CONT for shops comparing across brands.

What's in the Box

• 1x Panduit P1™ H000X064H1C continuous heat shrink label cassette (0.64" x 6 ft, white)

Frequently Asked Questions

Q: What printers is the H000X064H1C compatible with?

A: The H000X064H1C is designed for use with Panduit LS8E and LS8EQ portable label printers. It is not compatible with other printer families.

Q: What cable diameter range does this cassette cover?

A: The cassette accommodates cable diameters from 0.13" to 0.38" (3.3 mm to 9.7 mm), thanks to the 3:1 shrink ratio starting at 0.64" width.

Q: What military standards does this label cassette meet?

A: It meets MIL-M-81531 and MIL-STD-202G Method 215K (Solutions A, C, and D) for environmental and chemical resistance, and UL Standard 224 for flammability.

Q: Is the H000X064H1C sold individually or in a carton?

A: It is sold as a single cassette (package quantity 1). Carton quantity is 10 if ordering in bulk.

Q: Does the cassette integrate with labeling software?

A: Yes. The H000X064H1C is compatible with Panduit Easy-Mark Plus™ Labeling Software for template-driven label design and direct-to-print output.

Q: What is the shrink ratio of the H000X064H1C?

A: The shrink ratio is 3:1, providing a tighter, more secure fit across a wider range of cable diameters compared to standard 2:1 heat shrink labels.

James Everett

The H000X064H1C is one of those consumables that only matters until the label falls off or fails an inspection — and then it matters a lot. The 3:1 shrink ratio on this cassette is the practical differentiator: at 0.64" pre-shrink covering down to 0.13" finished diameter, you get a firm, wrinkle-free sleeve on both thin signal wires and heavier 12AWG runs from the same cassette stock, which matters in mixed-gauge security and AV head-end panels where swapping label stock mid-job costs time.

Technical Highlights:

• MIL-M-81531 / MIL-STD-202G Compliance: Chemical resistance to fluid groups A, C, and D is tested per military spec — relevant on any installation near coolants, solvents, or cleaning agents in mechanical or utility rooms.
• Integrated Memory Device: Auto-formats on insertion into the LS8E or LS8EQ, recalls last legend, and tracks remaining label length — removes a manual step in high-volume termination sessions and prevents media-mismatch misprints.
• Continuous Cut-to-Length Format, 6 ft per Cassette: No pre-cut size constraint. For control panels with deep service loops or long splice sleeves, you print and cut at the exact length the job requires — nothing left over, nothing short.

Deployment Considerations:

• This cassette is printer-specific: it only works in the Panduit LS8E and LS8EQ. If your field team runs a mixed fleet of label printers, verify the model before deploying this stock — the integrated memory chip is not compatible with other platforms.
• The 0.13"–0.38" (3.3–9.7 mm) cable diameter window is the hard constraint. If your installation includes anything larger — 10AWG or heavier conduit conductors — you will need a wider cassette from the P1™ family.

Best fit for defense contractor facilities, data center structured cabling teams, and security integrators running LS8E printers who need MIL-spec label compliance and cut-to-length flexibility on mixed-gauge wire runs.
