Panduit F8NNM5ENNAAM010 OS2 432F Trunk Cable
Overview

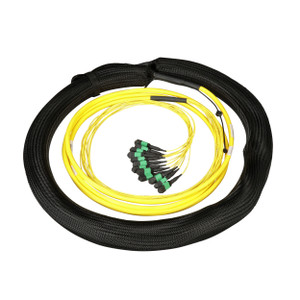

The Panduit F8NNM5ENNAAM010 is a 10-meter (33 ft) OS2 single-mode fiber optic trunk cable assembly. It features 432 fibers terminated with MTP connectors on one end and pigtails on the other (Method A), designed for high-density data center and enterprise backbone applications. Its LSZH (Low Smoke Zero Halogen) Euroclass Cca rating ensures compliance with stringent fire safety standards in commercial installations.
Compatibility
This trunk cable is designed for use within Panduit's QuickNet™ fiber optic system infrastructure. It requires compatible MTP® connectors and patch panels for termination. While not specific to a particular surveillance brand, it is suitable for connecting high-speed network switches and servers within a surveillance system's IT infrastructure, provided the network topology supports MTP connectivity.
Installation Notes
The cable has an overall length of 10 meters (33 feet) and a fiber diameter of 9 microns. It meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, and other relevant industry standards, ensuring reliable performance. The LSZH Euroclass Cca rating indicates its suitability for riser applications.
