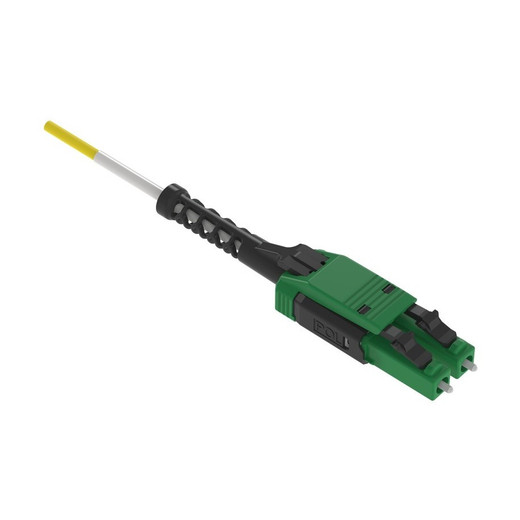

Panduit F92RPU2U2ONM015 OS2 Uniboot LC-LC 15m Plenum Cord

Panduit F92RPU2U2ONM015 Opti-Core OS2 Single Mode Fiber Patch Cord

The Panduit F92RPU2U2ONM015 Opti-Core fiber patch cord addresses the critical density and performance requirements of modern data center and telecom room deployments. This 15-meter OS2 single mode cable delivers optimized insertion loss through factory-terminated LC duplex uniboot APC connectors, eliminating the field-termination variability that plagues installer-assembled solutions. The plenum-rated jacket meets OFNP flammability requirements for overhead pathway installations, while the pull-boot uniboot design reduces port congestion by 50% compared to traditional duplex LC configurations—a decisive advantage when working in high-density 1U patch panels or crowded MDA/HDA cabinet backplanes.

Key Features

• OS2 Single Mode Fiber: 9-micron core diameter supports 10G/40G/100G Ethernet applications up to 10km, with headroom for 400G upgrades
• LC Duplex Uniboot APC Connectors: Factory-polished 8° angled physical contact (APC) terminators minimize return loss to -60 dB typical, critical for high-speed coherent optics
• Optimized Insertion Loss: Panduit's factory QA process certifies each cable to <0.35 dB insertion loss across the 1260-1625 nm transmission window, reducing link budget uncertainty
• Uniboot Pull-Boot Design: Single-boot duplex housing with integrated polarity reversal tab allows A-to-B swap in seconds without re-termination or port re-assignment
• Plenum Rated (OFNP): NFPA 262 compliant jacket supports horizontal and vertical riser installations in air-handling spaces without conduit
• 15-Meter Length: Covers typical floor-to-floor vertical rises or cross-aisle horizontal runs in co-location or enterprise data center layouts
• High-Visibility Yellow Jacket: Speeds tracing and polarity management in mixed single mode/multimode environments; yellow standard aligns with TIA-598-D single mode color convention
• Standards Compliant: Meets TIA-568-C.3, ISO/IEC 11801, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10), and RoHS Directive 2002/95/EC for global deployment acceptance

Single mode fiber infrastructure demands precision that field termination cannot consistently deliver. The F92RPU2U2ONM015 arrives with both connectors factory-polished to APC geometry—an 8-degree end-face angle that forces backreflected light into the cladding rather than back down the core. This design choice matters most in coherent 100G/400G optics, where return loss better than -60 dB is required to prevent BER degradation. Traditional PC (physical contact) connectors top out around -40 dB return loss, leaving insufficient margin for dirty connections or mechanical stress. Panduit validates every Opti-Core cable on automated insertion-loss test beds before shipping, certifying performance across the full OS2 transmission spectrum from O-band (1260 nm) through L-band (1625 nm). The result: predictable link budgets that survive the 20-year cable plant lifecycle, even as transceiver generations evolve from 10G to 400G and beyond.

The uniboot form factor solves two persistent data center problems—port density and polarity management. Standard duplex LC cables terminate in side-by-side boots that consume roughly 12mm of horizontal space per connection; uniboot housings compress that to ~6mm by stacking the two fibers vertically within a single pull-boot. This 50% width reduction translates directly to higher usable port counts in 1U 24-port or 48-port panels, particularly when cables enter from both sides of a cabinet. More critically, the integrated polarity reversal mechanism—a small tab inside the uniboot that swaps the A and B fiber positions—eliminates the need for crossover adapters or reversed-polarity cables when connecting duplex transceivers (Tx/Rx pairs). Installers can flip polarity at either end of the link in under 10 seconds without tools, removing the single largest cause of "fiber is plugged in but link won't come up" trouble tickets. The 15-meter length covers floor-to-floor riser runs in most commercial buildings (10-12 foot ceiling heights plus slack), cross-aisle horizontal spans in co-location suites, or main-to-horizontal distribution panel connections in campus telecom rooms.

Plenum rating is non-negotiable for cables installed in return-air ceiling spaces, above-deck equipment areas, or any pathway classified as an environmental air duct under NFPA 90A. The F92RPU2U2ONM015's OFNP jacket meets NFPA 262 flame spread and smoke density limits, allowing installation without metal conduit—a substantial labor and material cost saver on horizontal distribution runs. Panduit's yellow jacket color follows the TIA-598-D convention for OS2 single mode fiber, simplifying visual tracing in mixed-mode plants where OM3/OM4 multimode (aqua) and OS2 single mode (yellow) cables coexist. The Opti-Core sub-brand represents Panduit's factory-terminated fiber line, distinguished from field-install products by tighter insertion-loss tolerances and batch-to-batch consistency that field crews cannot replicate with hand-polish techniques. This cable ships in cartons of 10, balancing bulk-buy economies for large deployments against manageable inventory for smaller telecom room upgrades or single-rack installations.

Deployment planning for single mode fiber requires attention to bend radius, connector end-face cleanliness, and polarity schemes—all areas where factory-terminated cables outperform field assembly. The F92RPU2U2ONM015 maintains a minimum bend radius of 10× cable diameter under no-load conditions (approximately 30mm for this 3mm jacketed cable), but the uniboot pull-boot adds mechanical strain relief that protects the fiber during installation pulls and subsequent moves/adds/changes. Unlike breakout-style duplex LC cables where each fiber has its own 900-micron buffer and separate boot, the uniboot design presents a single pull point, reducing installation time and minimizing the risk of uneven tension that can cause differential insertion loss between the A and B fibers. For structured cabling installations following TIA-568-C.3 guidelines, this cable fits both Method A (straight-through) and Method B (crossover) polarity schemes; the reversible uniboot makes polarity correction a one-person, zero-downtime task when migrating legacy Method A deployments to Method B for compatibility with newer MPO-based trunk systems.

Connector end-face geometry has a direct, measurable impact on optical link performance. Panduit's APC polishing process holds the 8-degree angle to within ±0.5 degrees across production runs, ensuring that mated connector pairs align concentrically with minimal air gap. The resulting insertion loss—factory-certified to <0.35 dB—leaves margin for in-service degradation from dust accumulation, mating-cycle wear, or thermal expansion in outdoor-rated enclosures. As a reference point, TIA-568-C.3 allows up to 0.75 dB insertion loss per mated connector pair; Panduit's <0.35 dB target cuts that budget in half, providing headroom for future transceiver upgrades or extended-reach applications. For 10GBASE-LR links (10km SMF reach), typical power budgets assume 5-6 dB total channel loss; two connectors at 0.35 dB each plus 15 meters of OS2 fiber at 0.4 dB/km yields ~1.1 dB total—well under budget and compatible with lower-cost 10GBASE-LR optics that may have reduced transmit power compared to premium modules.

Installation best practices for plenum-rated fiber include maintaining separation from high-voltage AC lines (minimum 12 inches per NEC Article 770), avoiding sharp bends around cable tray edges, and using hook-and-loop straps rather than zip ties to prevent jacket compression. The F92RPU2U2ONM015's yellow jacket withstands typical data center temperatures (5-45°C operating range) and survives the 20-year service life expected of structured cabling infrastructure. When pulling through crowded pathways, the uniboot's reduced profile cuts snag risk compared to side-by-side duplex boots; the integrated pull-boot also prevents the common failure mode where installers yank on the connector body and delaminate the internal ferrule from the boot housing. For maintenance and troubleshooting, the LC connector's latch mechanism is rated for 500+ mating cycles—sufficient for a cable that may be moved between ports a dozen times over its installed life during equipment upgrades, port re-assignments, or rack consolidations.

Compliance certifications extend beyond flammability and optical performance. The F92RPU2U2ONM015 meets RoHS Directive 2002/95/EC limits on lead, mercury, cadmium, hexavalent chromium, and flame retardants, satisfying procurement requirements for EU-based projects or multinational enterprises with global RoHS policies. TIA-604-3 (FOCIS-3) and TIA-604-10 (FOCIS-10) standards govern the physical and optical characteristics of SC and LC connectors, respectively; compliance ensures interoperability with any LC-compatible transceiver from Cisco, Juniper, Arista, or white-box suppliers. ISO/IEC 11801 compliance signals compatibility with international structured cabling standards used outside North America, important for integrators managing multi-region deployments or standardizing on a single cable SKU for global inventory. The 10-pack carton quantity suits both large-scale data center builds and smaller telecom room upgrades, balancing per-unit cost efficiency against the need to minimize on-hand inventory for project-based contractors.
