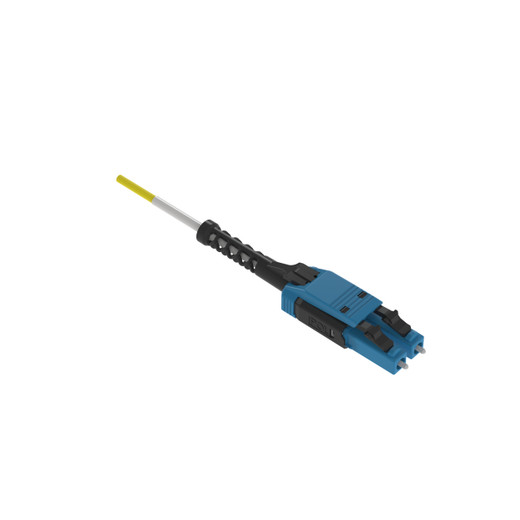

Panduit F92RLU1U1ONM013 OS2 LC Uniboot Duplex Fiber Patch Cord - 13m
The Panduit F92RLU1U1ONM013 Opti-Core fiber patch cord delivers OS2 single-mode performance in a space-saving LC Uniboot form factor. Engineered for data centers, telecom rooms, and enterprise backbone installations, this 13-meter (42.65-foot) duplex jumper features optimized insertion loss, LSZH jacket compliance, and ruggedized pull-boot connectors that streamline moves, adds, and changes in high-density fiber environments. Yellow jacket color-coding supports TIA-598-D wavelength identification standards for 9/125μm single-mode infrastructure.
Key Features
- OS2 single-mode fiber rated for 10G/40G/100G applications up to 10km+ transmission distances
- LC Uniboot duplex connectors reduce patch-panel footprint by 50% versus traditional duplex LC
- Optimized insertion loss ensures reliable link budgets in 40GBASE-LR4 and 100GBASE-LR4 deployments
- LSZH (Low Smoke Zero Halogen) jacket meets IEC 60332-1 and 60754 for plenum and riser installations
- Pull-boot strain relief protects connector ferrules during cable management and reconfiguration
- 13-meter length spans typical rack-to-rack, floor-to-floor, or cross-aisle fiber runs
- 2.0mm cable diameter enables tight-radius bends in cable trays and vertical managers
- Factory-terminated and tested to TIA-568-C.3 and ISO/IEC 11801 standards
- Yellow jacket color per TIA-598-D recommendation for OS2 single-mode identification
- RoHS 2002/95/EC compliant for EU and global procurement requirements
Single-mode OS2 fiber is the backbone of modern data center and campus networks, supporting 10GBASE-LR, 40GBASE-LR4, and 100GBASE-LR4 optics over multi-kilometer distances with minimal chromatic dispersion. The F92RLU1U1ONM013's 9/125μm core/cladding geometry and <0.35dB typical insertion loss ensure you maintain link margin even in long-haul or high-split passive optical LAN (POL) topologies. Panduit's Opti-Core manufacturing process pre-polishes ferrule end-faces to better than 50dB return loss, reducing back-reflection that can degrade DWDM and coherent optics in metro and long-haul applications. The duplex configuration—two fibers in a single Uniboot housing—supports bidirectional 10G/40G/100G links without the clutter of separate TX/RX jumpers.
LC Uniboot connectors cut patch-panel congestion in half by consolidating both fibers into a single, narrow footprint. In a 1U 144-port LC panel, Uniboot jumpers free up to 50% more working room for technician fingers and airflow compared to traditional duplex LC boots. The integrated pull-tab design lets you extract connectors from densely populated panels without a removal tool, and the push-pull latch mechanism survives 500+ mating cycles per TIA-604-10 (FOCIS-10) durability testing. The 2.0mm cable diameter permits 15mm minimum bend radius, so you can route this jumper through tight vertical managers, zero-U cable organizers, and overhead ladder rack without kinking or stressing the fiber. Yellow LSZH jacketing meets IEC 60332-1 flame propagation limits and IEC 60754 halogen-free emission standards, satisfying building codes in hospitals, schools, transportation hubs, and any environment where smoke toxicity is a life-safety concern.
At 13 meters, the F92RLU1U1ONM013 is purpose-built for mid-range horizontal runs: row-to-row links in hot-aisle/cold-aisle data center layouts, MDF-to-IDF backbone segments in multi-floor office buildings, or patch cords connecting spine switches to leaf switches in two-tier Clos fabrics. This length also suits enterprise telecom rooms where fiber aggregation switches sit in separate racks from edge distribution gear, or campus fiber-to-the-desk (FTTD) installations where wall-mounted media converters feed user workstations up to 40 feet away. Factory termination eliminates the field-polish variability that causes insertion-loss failures and return-loss faults in hand-terminated jumpers. Panduit tests every cord for <0.35dB insertion loss and >50dB return loss before packaging, and ships with individual test reports traceable to ISO/IEC 17025 lab certification.
Standards compliance spans the full stack: TIA-568-C.3 for commercial building cabling, ISO/IEC 11801 for international premises networks, TIA-604-3 (FOCIS-3) for SC/LC connector performance, and TIA-604-10 (FOCIS-10) for physical-contact ferrule geometry. RoHS 2002/95/EC conformance covers lead, mercury, cadmium, hexavalent chromium, and brominated flame retardants, ensuring this jumper meets procurement requirements in EU member states, California, and other jurisdictions with e-waste restrictions. The 10-pack carton quantity simplifies bulk orders for new data center builds, floor refresh projects, or spares inventory, while the single-unit retail package supports rapid on-site replacements during troubleshooting or emergency repairs. Pair this cord with Panduit FAP pre-terminated cassettes, OptiCam LC modules, or any OS2-rated LC transceiver for a fully warranted, end-to-end fiber link that ships same-day and installs in minutes.
