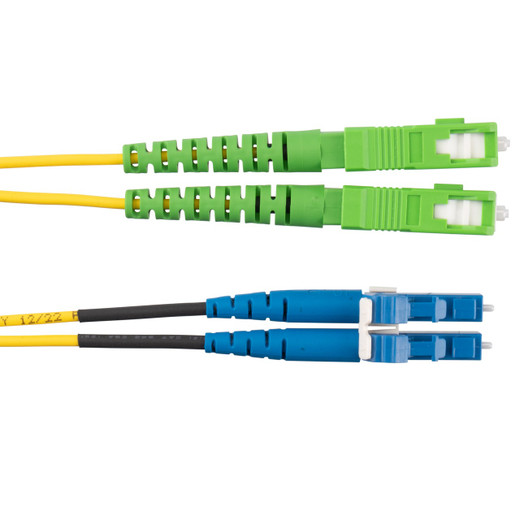

Panduit F92ERANLNSNM005 OS2 Single-Mode Fiber Patch Cord
The Panduit F92ERANLNSNM005 Opti-Core fiber patch cord delivers OS2 single-mode performance for enterprise datacenter and telecom backbone installations requiring low-loss connectivity between SC APC and duplex LC terminations. This 5-meter yellow patch cord features standard insertion loss specification, vertical-rated OFNR jacketing, and 1.6 mm diameter construction for high-density panel routing. The SC APC to duplex LC configuration addresses common aggregation layer connections where APC polished connectors on distribution equipment must interface with standard LC duplex transceivers or switch modules.
Key Features
- OS2 single-mode fiber supports 10G/40G/100G Ethernet and CWDM/DWDM wavelengths across campus and metro distances
- SC APC (angled physical contact) connector on one end minimizes back-reflection for high-bitrate and analog video transmission
- Duplex LC connector on opposite end interfaces with SFP+/QSFP transceivers and enterprise switch modules
- Standard polarity and insertion loss specification ensures plug-and-play compatibility with structured cabling infrastructure
- OFNR (vertical conductor) flammability rating meets NEC Article 770 requirements for riser pathway installation
- 1.6 mm cable diameter enables dense patch panel population in confined equipment racks
- 5-meter length spans typical cross-connect and equipment-to-panel distances in IDF/MDF environments
- Yellow jacket color identifies single-mode fiber per TIA-598-D industry standard
Single-mode OS2 fiber provides 9/125 μm core/cladding geometry optimized for laser-based transmission systems operating at 1310 nm and 1550 nm wavelengths. Unlike multimode fiber limited to 300-550 meters at 10 Gbps, OS2 delivers full 10GBASE-LR range to 10 km and supports 40GBASE-LR4/100GBASE-LR4 extended reach applications when deployed with appropriate transceivers. The SC APC connector on this patch cord uses an 8-degree angled polish that directs reflected light into the cladding rather than back toward the source—critical for GPON/EPON fiber-to-the-premises deployments, high-speed coherent optics, and analog CATV distribution where return loss below -60 dB is required to maintain signal integrity. The duplex LC end provides two simplex connectors in a single latch-retained housing, matching the dominant transceiver form factor in enterprise switching and storage networking. Standard insertion loss specification (typically ≤0.3 dB) ensures predictable link budget allocation; installers can deploy these patch cords without field testing on routine moves/adds/changes, reserving OTDR verification for backbone trunk validation.
The 1.6 mm cable diameter uses a tight-buffered construction with aramid strength members and a low-smoke zero-halogen outer jacket rated OFNR per UL 1666 vertical flame test protocol. This riser rating permits installation in vertical pathways between floors without requiring plenum-rated (OFNP) cable, reducing material cost on multi-story building projects where horizontal distribution uses plenum cable but riser shafts do not serve as environmental air plenums. The compact 1.6 mm outer diameter—compared to 2.0 mm or 3.0 mm standard patch cords—reduces bundle diameter when routing multiple circuits through high-density panels or zero-U vertical cable managers. On a 144-port LC duplex panel, substituting 1.6 mm patch cords for 3.0 mm equivalents cuts the cable bundle cross-section by 72%, directly improving airflow around front-mounted equipment and simplifying moves when technicians must extract a single circuit from a dressed bundle. The 5-meter length addresses typical equipment rack scenarios: ODF panel mounted at 42U to switch at 38U (1.2 m vertical + horizontal routing + service loop), cross-connect between adjacent racks (0.6 m aisle + panel depth + dressing), or MDF aggregation switch to fiber entrance panel (2-3 m with pathway routing). Installers stock 1 m, 3 m, 5 m, and 10 m lengths to minimize excess cable while maintaining 15-20 cm service loops at both ends for future re-termination or equipment swap.
Yellow jacket color follows TIA-598-D Appendix A designation for single-mode fiber, providing immediate visual differentiation from aqua (OM3/OM4 multimode) or orange (OM1/OM2 multimode) patch cords during troubleshooting and audits. The SC APC connector uses a green-bodied boot to indicate angled polish, preventing accidental mating with UPC (ultra-physical contact) adapters that would create an air gap and insertion loss spike exceeding 1.5 dB. Duplex LC connectors use Panduit's pull-proof latch design—technicians depress the latch tab to release rather than pulling the cable jacket, reducing accidental disconnects when dressing cables in vibration-prone telecom central offices or industrial datacenters. Standard polarity (Position A to Position A, Position B to Position B in duplex LC housing) aligns with Method A structured cabling per TIA-568, ensuring transmit-to-receive pairing without requiring polarity reversal patch cords on parallel optics applications. Panduit manufactures these patch cords in ISO 9001 certified facilities with automated polishing and insertion loss testing on every connector; each cord ships with a serialized test report documenting IL and return loss values, supporting change management databases that track per-circuit performance baselines. This OS2 patch cord meets EN 60332-1-2 single-cable vertical flame propagation standard, required for European telecom installations and multinational enterprises standardizing on IEC-compliant components across regional datacenters.
