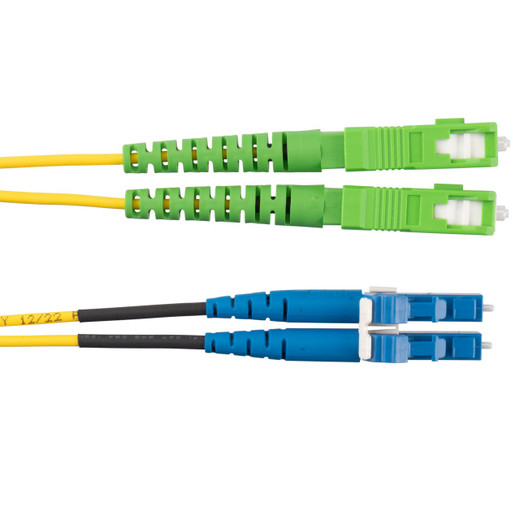

Panduit F92ELANLNSNM009 Fiber Optic Patch Cord

Overview

The Panduit Opti-Core™ F92ELANLNSNM009 is a 2-fiber duplex patch cord designed for reliable data transmission in structured cabling systems. It features a 1.6mm LSZH (Low Smoke Zero Halogen) cable jacket, making it suitable for environments where fire safety and minimal smoke emission are critical. This cord connects fiber optic equipment with SC/APC connectors on one end to devices with LC duplex connectors on the other, ensuring a secure and low-loss link for surveillance or data networks. Its 9-meter length provides flexibility for equipment rack or cabinet deployments.

Compatibility

This patch cord is compatible with any network or surveillance equipment utilizing SC Duplex APC connectors on one end and LC Duplex connectors on the other. It is suitable for use with OS1/OS2 single-mode fiber infrastructure, commonly found in enterprise data centers, telecommunications rooms, and high-bandwidth surveillance backbones. Ensure your endpoint devices feature the specified connector types for a successful link.

Installation Notes

The 1.6mm cable diameter allows for easy routing within cable management systems. The LSZH jacket meets flammability standards, but proper ventilation should still be maintained in enclosed spaces. Ensure connectors are clean before mating to prevent signal degradation. The SC/APC connector is keyed to prevent incorrect insertion. This patch cord is rated for standard insertion loss performance for OS2 single-mode fiber.
