Panduit F92ELANB1SNM006 OS2 SC/LC APC 6m Patch Cord

Panduit F92ELANB1SNM006 Opti-Core OS2 Single-Mode Fiber Patch Cord

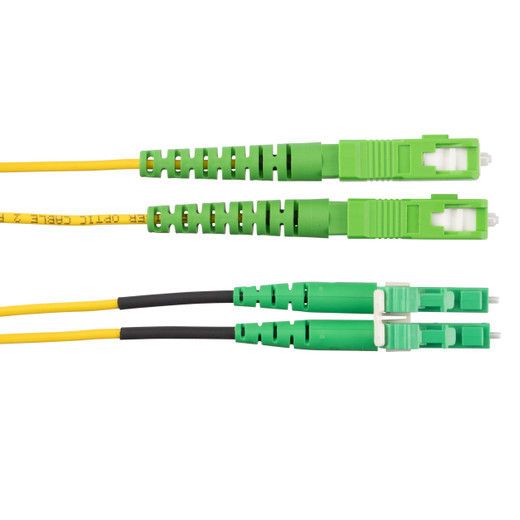

The Panduit F92ELANB1SNM006 is a 6-meter OS2 single-mode fiber optic patch cord terminated with SC duplex APC connectors on one end and LC duplex APC connectors on the other. Built under Panduit's Opti-Core product line, this cable delivers the low insertion loss and high return loss performance required for 10G, 40G, and 100G datacenter backbone links, campus fiber distribution, and any application where you're pushing multi-gigabit traffic over distances beyond 300 meters. The yellow LSZH jacket meets stringent flammability and smoke-toxicity standards for enclosed pathways, and the APC (angled physical contact) polish on both connector types cuts back-reflection to -60 dB or better — critical when you're running high-speed optics sensitive to return loss.

Key Features

• OS2 single-mode fiber (9/125 µm) rated for distances up to 10 km at 10GBASE-LR, 40 km at 1000BASE-LX
• SC duplex APC to LC duplex APC termination — angle-polished connectors reduce return loss below -60 dB
• 6-meter length ideal for intra-rack, rack-to-rack, or short cross-connect applications
• Yellow LSZH (low smoke zero halogen) jacket for plenum and riser installations with fire-safety compliance
• Opti-Core construction: factory-terminated, 100% insertion-loss tested, individually serialized
• Duplex zipcord design maintains polarity; SC and LC connectors keyed to prevent A/B swap errors

OS2 Single-Mode Performance. Unlike OM3/OM4 multimode cables limited to 300–550 meters at 10G, OS2 single-mode fiber supports 10GBASE-LR out to 10 kilometers and 1000BASE-LX to 40 kilometers over a 9-micron core. The F92ELANB1SNM006 uses low-water-peak fiber meeting ITU-T G.652.D specifications, which means full-spectrum performance from 1260 nm to 1625 nm with attenuation under 0.4 dB/km at 1310 nm and 0.3 dB/km at 1550 nm. When your loss budget allows only 2–3 dB end-to-end — common in 10G LR or 40G LR4 links — every tenth of a decibel counts. Factory termination and APC polish deliver typical insertion loss under 0.3 dB per mated pair, and return loss better than -60 dB eliminates the back-reflection that can destabilize lasers in DWDM, PON, and high-speed Ethernet transceivers.

APC Connectors — Why the Green (or Yellow) Boot Matters. The "APC" designation indicates an 8-degree angle polish on the fiber endface, as opposed to the flat or slightly domed UPC polish found on most multimode and many single-mode jumpers. That 8-degree angle directs reflected light into the cladding rather than back down the core, dropping return loss from the -50 dB typical of UPC connectors to -60 dB or lower. If you're deploying 10GBASE-LR, 40GBASE-LR4, or CWDM/DWDM optics, APC connectors are often mandatory; the transceiver datasheet will specify maximum tolerable return loss, and exceeding it causes bit errors, link flaps, or outright failure to establish a link. The F92ELANB1SNM006 ships with APC connectors on both ends — SC duplex APC (typically green-booted, though Panduit uses yellow LSZH) on one side and LC duplex APC on the other. Never mate APC to UPC; the angle mismatch causes immediate endface damage and 2–4 dB insertion-loss penalty.

SC-to-LC Topology. This hybrid patch cord bridges the gap between legacy SC-based fiber panels (common in campus backbone installations from the 2000s) and modern LC-based switch modules, which pack twice the port density into the same faceplate real estate. In a typical deployment, your building entrance or MDF has SC bulkhead adapters in a wall-mount enclosure; your core switch has LC duplex transceivers (10GBASE-LR SFP+ or 25G SFP28). The F92ELANB1SNM006 completes the A-to-B connection without requiring a mid-span SC/LC adapter panel, saving a mated pair (and its associated insertion loss) and reducing points of failure. The duplex zipcord construction maintains polarity: SC connector A maps to LC connector A, SC connector B to LC connector B. Both SC and LC connectors use keyed duplex clips to prevent accidental A/B reversal during moves or troubleshooting.

LSZH Jacket for Enclosed Spaces. The yellow outer jacket is LSZH-rated, meaning it meets IEC 60332-1 or UL 1666 flammability standards and emits minimal smoke and zero halogen gases (chlorine, fluorine, bromine) when exposed to flame. This matters in two scenarios: (1) Plenum and riser pathways, where building codes (NEC Article 770, CEC Section 12) require cables to self-extinguish and not propagate fire, and (2) enclosed equipment rooms or datacenters where a cable fire can fill the space with toxic HCl or HBr gas in under two minutes, corroding electronics and endangering personnel. LSZH jackets cost 10–15% more than PVC but are increasingly mandated by enterprise IT standards, insurance underwriters, and international datacenters operating under EN 50575 (CPR) regulations. The yellow color is Panduit's Opti-Core single-mode identifier; it distinguishes OS2 cables from aqua (OM3), erika violet (OM4), or lime (OM5) multimode jumpers in dense patch fields where a grab-the-wrong-cable mistake costs you a truck roll or an SLA miss.

Installation and Testing Discipline. Even factory-terminated APC connectors will fail insertion-loss and return-loss specs if contaminated. Before mating, inspect each ferrule under a 200× fiber microscope; you're looking for a scratch-free endface with no core-zone contamination (dust, oil, buffer gel residue). Clean with a one-click cleaner or lint-free wipe dampened with 99% isopropyl alcohol, then dry-wipe and re-inspect. After installation, test each link with an OLTS (optical loss test set) at both 1310 nm and 1550 nm; your end-to-end loss should be under 1.0 dB for a 6-meter jumper plus whatever your backbone span contributes (typically 0.35–0.50 dB per mated pair for bulkheads and splice trays). Record results in your site documentation; you'll need them when troubleshooting intermittent 10G links three years later. Observe minimum bend radius (10× cable diameter, or roughly 25 mm for 2.4 mm zipcord) especially at the connector boot; over-bending single-mode fiber induces microbending loss that shows up as intermittent high-BER events under load.

This 6-meter length fits rack-to-rack connections in the same row, equipment-to-patch-panel jumps in deep cabinets, or MDF-to-IDF links in small wiring closets. Panduit's Opti-Core line carries a manufacturer warranty and meets TIA-568-C.3 and IEC 61753-1 performance grades. Each cable ships individually bagged with a serialized label for asset tracking. For contractors bidding jobs with single-mode backbone requirements, this SC/LC hybrid jumper eliminates the need for costly conversion panels and the 0.5 dB insertion-loss hit from an extra mated pair — your link budget stays healthy, your port density stays high, and your client gets a future-proof 10G-to-100G migration path without ripping out the fiber plant.
