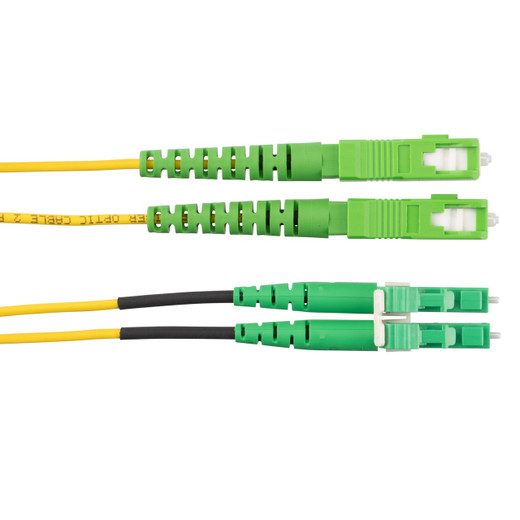

Panduit F92ELANB1SNM007 Opti-Core OS2 Single-Mode Duplex Fiber Patch Cord
The Panduit F92ELANB1SNM007 is a 7-meter duplex single-mode fiber patch cord engineered for high-performance datacenter backbone, storage-area networks, and long-haul fiber links. Built on OS2 9/125-micron fiber with SC/APC to LC/APC angled-polish connectors, this cord delivers the low insertion loss and high return loss required for 10GbE, 40GbE, and 100GbE transmission over extended distances. The 1.6mm LSZH (Low Smoke Zero Halogen) jacket meets plenum and riser fire-safety codes, and the yellow outer jacket provides instant visual identification of single-mode infrastructure in mixed-mode environments. Factory-terminated and tested by Panduit, each cord ships with documented insertion-loss certification, eliminating field-termination variability and accelerating deployment in mission-critical networks.
Key Features
- OS2 Single-Mode Fiber – 9/125-micron core supports transmission distances up to 10 km (10GbE) or 40 km (1GbE) with minimal attenuation, ideal for campus backbone and inter-building links
- SC/APC to LC/APC Angled Connectors – 8° angled physical-contact polish delivers return loss greater than 60 dB, reducing back-reflection and crosstalk in dense DWDM and high-speed Ethernet applications
- LSZH Jacket Construction – Low-smoke zero-halogen outer jacket complies with IEC 60332-1 and IEC 60754 flame and toxicity standards, required for plenum and riser installations in occupied buildings and under-floor cable trays
- 1.6mm Duplex Cable – Slim-profile zipcord construction saves conduit fill and patch-panel density compared to 2.0mm or 3.0mm assemblies, enabling higher port counts in congested equipment racks
- Yellow Outer Jacket – Industry-standard color coding (TIA-598-C) for OS2 single-mode fiber, preventing accidental cross-connection with OM3/OM4 multimode infrastructure
- Factory-Terminated Quality – Each cord is polished, tested, and serialized at Panduit's ISO 9001 manufacturing facilities, with insertion loss ≤ 0.5 dB and return loss ≥ 60 dB per connector
- 7-Meter Length – 22.97-foot reach accommodates rack-to-rack connections, cross-aisle patch-panel links, and equipment-room-to-MDF runs without excess slack or cable-management challenges
Angled Physical Contact (APC) vs. Ultra Physical Contact (UPC): The SC/APC and LC/APC connectors on this cord use an 8° angled endface that directs back-reflected light into the fiber cladding rather than back toward the source. This geometry achieves return loss values exceeding 60 dB—critical for analog RF-over-fiber (CATV/DAS), high-bitrate DWDM wavelengths, and coherent 100G/400G optics where even minor reflections can degrade signal integrity. APC connectors are identified by green boots and bodies (as specified for this assembly), distinguishing them from blue UPC connectors. Because angled and flat endfaces are not matable, APC infrastructure must remain segregated from UPC infrastructure to prevent physical damage and insertion-loss spikes. OS2 single-mode fiber in this cord is optimized for wavelengths from 1310 nm to 1550 nm, supporting Ethernet, Fibre Channel, SONET/SDH, and passive optical LAN (POL) architectures. The 9-micron core diameter and <0.4 dB/km attenuation at 1550 nm enable multi-kilometer links without active regeneration, making this patch cord suitable for inter-building campus networks, co-location cross-connects, and storage replication over dark fiber.
Deployment in Datacenters and Enterprise Networks: Pre-terminated fiber assemblies like the F92ELANB1SNM007 eliminate the variability, contamination risk, and labor cost of field terminations. In spine-leaf datacenter fabrics, 7-meter cords provide the reach needed to connect top-of-rack switches to end-of-row aggregation switches or to patch from equipment racks to overhead cable trays and main distribution frames. The 1.6mm zipcord profile reduces bend radius and conduit congestion, allowing higher-density patching in 1U fiber panels and breakout harnesses. LSZH jacketing is mandatory in air-handling spaces (plenum ceilings, raised floors) and in many international markets (EU, APAC) where PVC combustion byproducts exceed regulatory limits. For installers running structured cabling in hospitals, schools, and high-rise office buildings, LSZH compliance avoids costly rip-and-replace when fire marshals audit cable types during occupancy inspections. Panduit's Opti-Core product line includes serialized test reports and bar-coded labels for asset tracking, simplifying MAC (move-add-change) workflows and audit trails in change-controlled environments.
The 7-meter length is purpose-built for rack-to-rack and intra-row connectivity—long enough to span adjacent aisles or reach overhead ladder rack from floor-standing cabinets, yet short enough to avoid the cable-management burden and signal-budget waste of over-provisioned 15-meter or 30-meter cords. SC and LC form factors are the two most widely deployed single-mode connectors in enterprise networks: SC dominates legacy telco and CATV headend installations, while LC is the de-facto standard for SFP/SFP+/QSFP transceivers in modern Ethernet switches. This SC-to-LC hybrid configuration supports equipment migrations—connecting older SC-based fiber panels or media converters to newer LC-based 10G/25G/40G switch infrastructure without requiring costly adapter panels or re-termination. Panduit's manufacturing process ensures each connector endface meets IEC 61300-3-35 geometry specifications (radius of curvature, apex offset, fiber height) and is cleaned and inspected under 400× magnification before packaging, delivering out-of-the-box performance that meets or exceeds TIA-568.3-D and ISO/IEC 11801 insertion-loss budgets for permanent-link and channel testing.
