Panduit F92ELB1SNSNM003 Opti-Core™ OS2 Single-Mode Fiber Patch Cord

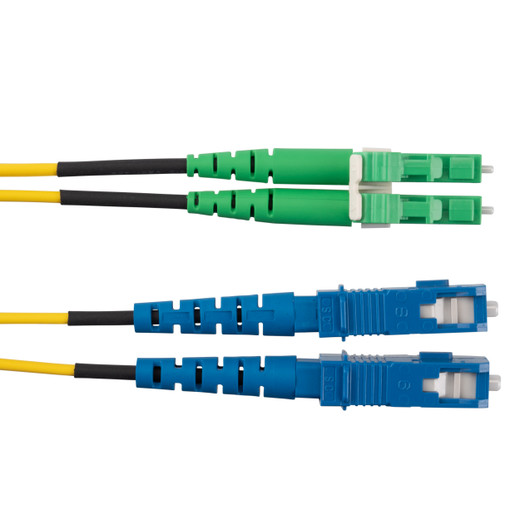

The Panduit F92ELB1SNSNM003 is a 2-fiber duplex OS2 single-mode patch cord engineered for high-performance data center and enterprise network installations. This 3-meter Opti-Core™ cable features LC/APC connectors on one end and SC duplex connectors on the other, with a 1.6mm LSZH jacket that meets strict building and plenum fire-safety requirements. The yellow cable jacket provides instant visual identification of single-mode fiber, while the green LC/APC connectors indicate angle-polished contact interfaces that minimize back reflection in sensitive optical systems.
Key Features
- OS2 single-mode fiber (9/125µm) supports transmission distances up to 10km at 10Gb/s and beyond
- LC/APC angled connectors reduce back reflection below -60dB for high-precision optical systems
- 1.6mm cable diameter enables higher-density patching in confined rack spaces
- LSZH jacket complies with IEC 60332-1 and IEC 60754 for low-smoke, halogen-free safety
- Factory-terminated duplex design ensures consistent insertion loss below 0.3dB typical
- 3-meter length ideal for intra-rack and short cross-connect runs
OS2 single-mode fiber is the standard for long-distance and high-bandwidth applications where multimode's distance limitations would require expensive active repeaters. The 9-micron core supports wavelengths from 1310nm to 1550nm, making this cord compatible with 1G, 10G, 40G, and 100G transceivers. The LC/APC connectors use an 8-degree angled polish that directs reflected light into the cladding rather than back toward the source—critical when connecting to high-sensitivity coherent optics, DWDM systems, or RF-over-fiber links where even -40dB return loss can degrade signal integrity.
The 1.6mm reduced-diameter jacket is a significant advantage in high-density environments. Standard 2.0mm or 3.0mm fiber jumpers quickly overwhelm cable managers and block airflow; this Opti-Core design allows integrators to maintain bend-radius compliance (25mm minimum) while routing 40-60% more cables through the same horizontal manager or vertical ladder rack. The LSZH compound meets European EN 50267 and North American building codes that prohibit PVC in return-air plenums—when fire occurs, the jacket produces minimal smoke opacity and zero hydrochloric acid, protecting both occupants and sensitive IT equipment from corrosive byproducts.
Panduit factory-terminates every Opti-Core patch cord under cleanroom conditions and validates insertion loss, return loss, and geometry per IEC 61300-3-4. Each cable ships with individual test data and carries Panduit's performance guarantee. For surveillance and access-control integrators extending IP camera backhaul over single-mode fiber, or data-center teams deploying 100G links between spine and leaf switches, the F92ELB1SNSNM003 delivers the reliability and precision required when every dB matters.
