Panduit F92ELB1SNSNM002 2m OS2 LC/APC-SC Patch Cord

Panduit F92ELB1SNSNM002 Opti-Core™ OS2 Single-Mode Fiber Patch Cord

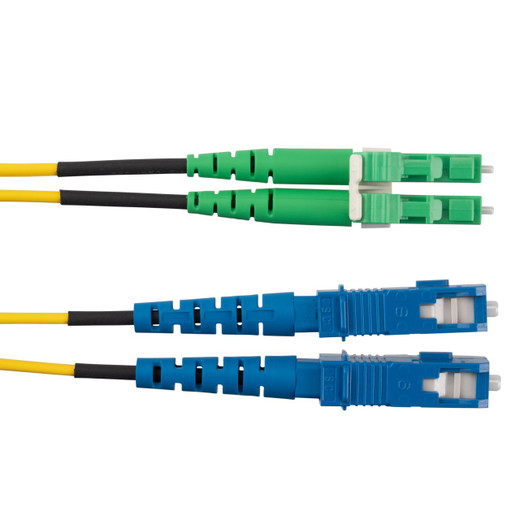

The Panduit F92ELB1SNSNM002 is a 2-meter duplex single-mode fiber patch cord engineered for datacenter backbone, security infrastructure, and long-distance surveillance deployments where signal integrity and fire safety compliance intersect. This OS2-rated cable features LC/APC connectors (green, angled physical contact) on one end and duplex SC connectors on the other, with a 1.6mm LSZH jacket that meets building code requirements for limited-combustion zones while maintaining the flexibility needed for dense patch-panel routing. Pre-terminated at the factory, it eliminates field-termination variability and delivers consistent insertion loss performance across 10G, 40G, and 100G Ethernet links.

Key Features

• OS2 single-mode fiber rated for 10km+ transmission at 10 Gbps, supports 40G/100G Ethernet over appropriate distances
• LC/APC (angled physical contact) duplex connectors on one end — 8-degree endface angle reduces return loss to -60 dB typical, critical for high-speed and analog RF-over-fiber links
• Duplex SC connectors on opposite end — common termination for enterprise switches, media converters, and legacy fiber distribution panels
• 1.6mm cable diameter enables higher-density routing in cable managers and vertical pathways versus 2.0mm or 3.0mm cordage
• LSZH (Low Smoke Zero Halogen) jacket meets IEC 60332-1 and 60754 standards for plenum-equivalent installations where PVC off-gassing is prohibited
• Factory-terminated and tested — eliminates fusion-splice labor, cleave-angle errors, and connector-endface contamination risks inherent in field terminations
• Yellow jacket with green LC boots follows TIA-598-C color coding for single-mode APC (OS2) fiber identification
• 2-meter length bridges typical rack-to-adjacent-rack or switch-to-patch-panel spans in 19" and 23" telecom racks

Single-mode OS2 fiber provides 9/125-micron core/cladding geometry optimized for laser light sources in the 1310nm and 1550nm windows. Unlike multimode OM3/OM4 fiber that limits 10G transmission to 300–550 meters, OS2 supports 10 Gbps links beyond 10 kilometers and scales to 100 Gbps over metro-area distances when paired with appropriate transceiver optics. The LC/APC connector's 8-degree angled endface physically directs reflected light into the cladding rather than back toward the source — a design that achieves return loss below -60 dB compared to -50 dB typical for UPC (ultra-physical contact) connectors. This performance margin is essential for DWDM systems, CATV distribution, and high-bitrate security video backhaul where even sub-1% reflections degrade signal-to-noise ratio. SC connectors on the opposite end provide backward compatibility with installed fiber distribution panels, older media converters, and OEM equipment that pre-dates the LC small-form-factor standard. The duplex (zipcord) construction maintains polarity through jacket color and connector keying — A-fiber and B-fiber remain paired for bidirectional communication without cross-connection risk.

Deploy this cord in datacenter east-west links between top-of-rack switches and spine aggregation layers, in security operations centers bridging NVR storage arrays to core network switches over fiber, or as building-entry jumpers connecting outside-plant single-mode cable to indoor distribution frames. The 1.6mm reduced-diameter jacket cuts pathway fill by 36% compared to 2.0mm cordage — meaningful when dressing 48-port fiber panels or routing through zero-U vertical managers in 42U racks. LSZH insulation meets the fire-propagation and toxicity limits required by NFPA 262 (plenum), making it code-compliant for air-handling spaces, under-raised-floor distribution, and above-ceiling horizontal pathways in commercial occupancies. Installers working under NEC Article 770 or IBC Chapter 8 can substitute LSZH for OFNP (plenum) in jurisdictions that recognize IEC 60332 test methods. The 2-meter length provides enough slack for service loops and strain relief while avoiding the excess coil bulk that 5-meter and 10-meter cords introduce in adjacent-rack scenarios. Pre-terminated construction ships with endface protector caps and passes Panduit's factory insertion-loss and return-loss testing — each cord includes traceable test data, eliminating the need for field OTDR certification on patch-cord segments and reducing first-install labor by 70% compared to fusion-splice workflows.

This patch cord is TIA-568-C.3 compliant for single-mode premises cabling and integrates into Panduit's Opti-Core structured fiber system. It ships in cartons of 10 for volume deployments and meets RoHS material restrictions for e-waste disposal. The LC/APC-to-SC hybrid termination specifically addresses hybrid infrastructure migrations where new 10G/25G switches with LC ports connect to legacy SC-terminated distribution — a common scenario in phased datacenter upgrades and security-network retrofits where fiber runs remain in place but active equipment refreshes on a shorter cycle.
