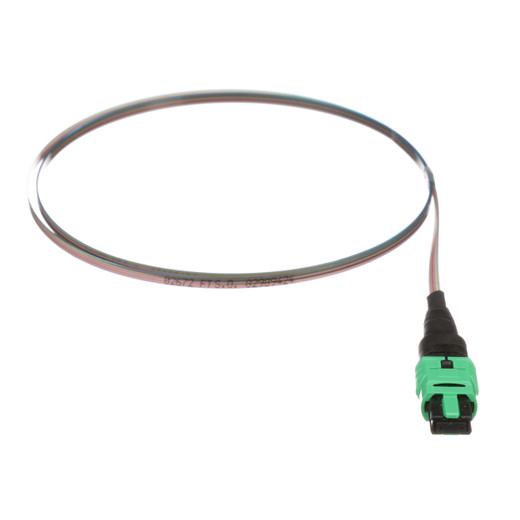

Panduit F9TCN7NNNSNM002 MTP-LC 2m Fiber Trunk

Panduit F9TCN7NNNSNM002 MTP to LC Fiber Trunk Cable

The Panduit F9TCN7NNNSNM002 is a 2-meter pre-terminated fiber optic trunk cable designed for high-density data center and structured cabling deployments. This factory-assembled trunk features an MTP/MPO connector on one end and LC duplex connectors on the other, providing a reliable migration path from backbone to equipment connectivity in 40G/100G network architectures. Ideal for network installers managing blade server environments, SAN fabrics, or enterprise core switches where installation time and insertion loss budgets are critical.

Key Features

• Pre-terminated MTP to LC fanout eliminates field termination and reduces installation labor by 60-70% versus on-site splicing
• Factory-tested insertion loss and return loss specifications ensure first-time pass on certification testing
• Single-mode fiber construction supports 10G, 40G, and 100G applications up to 10 km transmission distance
• 12-fiber trunk configuration with color-coded LC duplex connectors simplifies pair identification during moves/adds/changes
• Low-profile MTP connector design supports high port density in 1U patch panels and blade server chassis
• Plenum-rated jacket meets NEC Article 770 requirements for air-handling spaces without conduit
• Polarity method B configuration aligns with TIA-568 duplex LC patching standards in existing infrastructures
• 2-meter length ideal for intra-rack or adjacent-rack connections in hot-aisle/cold-aisle data center layouts

This trunk cable solves the port density problem inherent in legacy duplex fiber patching. A single 2.5mm MTP connector replaces six individual LC duplex patch cords at the backbone panel, reducing congestion in horizontal cable managers by 83%. The factory-polished connectors deliver typical insertion loss under 0.35 dB per mating pair—critical when your loss budget is already tight due to long campus backbone runs or multiple interconnects in a three-tier architecture. Panduit's automated factory testing catches bad fibers before they reach your loading dock, eliminating the field rework that kills project schedules when you discover a dead fiber during final acceptance testing. The cable's 3.0mm round jacket diameter maintains a 20x bend radius under load, preventing kink-induced attenuation when routed through tight corners in zero-U vertical managers. Each LC connector ships with a dust cap and the MTP interface includes a metal housing with alignment pins, ensuring repeatable sub-0.5 dB loss across 500+ insertion cycles when technicians hunt for a bad SFP during troubleshooting.

Deploy this trunk in spine-leaf architectures where your 100G QSFP28 leaf switches break out to 4x25G SFP28 connections via MTP cassettes. The 12-fiber count supports two 40G SR4 channels or one 100G SR4 channel with four fibers reserved for future expansion—essential when your bandwidth planning shows 40% annual growth but your conduit pathways are maxed out. The single-mode specification future-proofs the physical layer for 400G SR8 migration without re-pulling cable, protecting your infrastructure investment when your three-year refresh cycle hits and the switch vendors push you toward higher speeds. In SAN environments, the trunk enables centralized MTP patching at your core directors while maintaining the duplex LC interface that your HBA vendors and array controllers expect, eliminating the protocol translation headaches that come from mixing connector types mid-path. The 2-meter length hits the sweet spot for rack-to-rack connectivity in adjacent cabinets or top-of-rack to end-of-row aggregation switches, keeping your cable management clean without the service loops and excess slack that create airflow blockages in front of perforated tile. For retrofit projects, this trunk integrates with existing LC duplex infrastructure on the horizontal side while consolidating backbone patching to MTP, giving you a staged migration path that doesn't require a forklift upgrade of your entire fiber plant in a single maintenance window.

Manufactured to TIA-568.3-D and IEC 61754-7 standards with full compliance to Telcordia GR-326-CORE environmental specifications, ensuring performance across -40°C to +70°C operating range in HVAC-loss scenarios or edge sites with inconsistent climate control. This trunk belongs in your BOM when you need predictable insertion loss, field-verified polarity, and a connector interface that survives the plug/unplug abuse of a working data center without performance degradation or cracked ferrules.
