Panduit FC29N-24-10AS 24-Fiber MPO-LC OS2 Cassette

Panduit FC29N-24-10AS OptiCom™ 24-Fiber MPO-LC Cassette

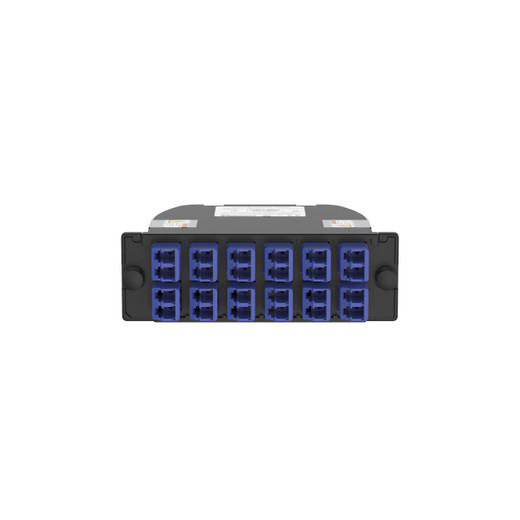

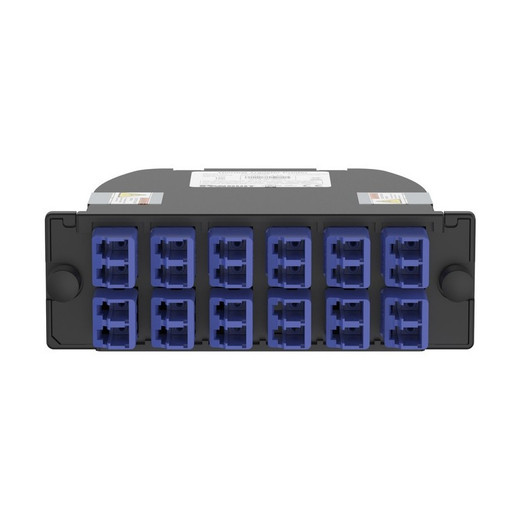

The Panduit FC29N-24-10AS delivers pre-terminated, high-density fiber connectivity for datacenter backbone and enterprise structured cabling installations. This OS2 single-mode cassette converts two MPO-12 male trunk connectors into twelve LC duplex ports, supporting 24 fibers total with Method A polarity. Integrators gain tool-less deployment, field-verified low insertion loss, and rapid migration paths from 10G to 40G/100G architectures without re-terminating trunk cable. The black polycarbonate housing fits standard 1U and 4U fiber enclosures, blue LC adapters provide instant visual confirmation of single-mode infrastructure, and the snap-in design eliminates rackmount hardware delays during high-density buildouts.

Key Features

• OS2 single-mode fiber (9µm core) for long-haul and campus backbone links up to 10km+ on 10GBase-LR, 40km on extended-reach optics
• 2x MPO-12 male connectors to 12x LC duplex adapters, 24 fibers total in a compact cassette form factor
• Method A polarity (standard straight-through) ensures plug-and-play compatibility with TIA-568 structured cabling standards
• Tool-less installation — snap cassette into fiber enclosure, plug MPO trunk, connect LC patch cords, no field splicing or epoxy
• Black housing with blue LC adapters for instant single-mode identification per TIA-606 color coding
• Polycarbonate construction resists impact and thermal stress in 23°C to 70°C operating environments
• Pre-terminated factory assembly guarantees ≤0.5 dB insertion loss per connection, eliminates field termination variability
• Fits Panduit and third-party 1U/4U fiber enclosures with standard cassette slots
• Supports 40GBASE-SR4 and 100GBASE-SR10 parallel optics migration when paired with MTP trunk infrastructure
• Ships individually packaged, carton quantity 10 for volume deployments

The FC29N-24-10AS uses a fanout architecture that maps two 12-fiber MPO connectors to twelve duplex LC ports, each LC port carrying a transmit/receive fiber pair. Method A polarity (also called "straight-through") aligns with the TIA-568.3-D standard for duplex connectivity: Position 1 on the MPO maps to the transmit fiber of LC port 1, Position 2 maps to the receive fiber of LC port 1, and so on through all twelve ports. This ensures that when you connect a Method A cassette on one end of an MPO trunk to a Method A cassette on the opposite end, the transmit fiber at one location automatically aligns with the receive fiber at the remote location — no crossover adapters, no polarity troubleshooting, no field rework. For integrators managing multi-building campus networks or raised-floor datacenter rows, this eliminates the single largest source of fiber deployment errors and cuts commissioning time in half compared to field-terminated LC connectors.

Deploy the FC29N-24-10AS in core-to-distribution fiber runs where port density and future bandwidth scaling matter. A single 1U enclosure loaded with six of these cassettes delivers 72 LC duplex ports (144 fibers) in one rack unit, replacing bulkhead panels that would consume 4U or more for equivalent port count. The OS2 single-mode fiber supports 10GBase-LR SFP+ transceivers today, 25G/40G optics tomorrow, and 100G QSFP28 modules when you migrate to parallel optics — all on the same physical infrastructure. The snap-in cassette design lets you add capacity in minutes: open the enclosure door, slide the cassette into an empty slot until it clicks, route the MPO trunk from the cable management spool, and plug LC patch cords to your active equipment. No screws, no tie-wraps, no panel de-mounting. For moves/adds/changes, pull the cassette, swap it, done. Installers working under change-window pressure or in live production environments gain speed without sacrificing cable management or bend-radius protection.

The OptiCom line meets TIA-568.3-D and IEC 61754-7 standards for MPO connectivity, ISO/IEC 11801 for premises cabling, and integrates with Panduit fiber management systems for end-to-end documentation and traceability. Black housing and blue LC adapters comply with TIA-606-B color coding (blue = single-mode), reducing mis-patching risk when technicians work in mixed multi-mode/single-mode environments. For government, finance, healthcare, and critical infrastructure projects that require traceable compliance and low-loss performance guarantees, the factory pre-terminated cassette delivers audit-ready results and eliminates the liability of field-terminated connectors that fail acceptance testing.
