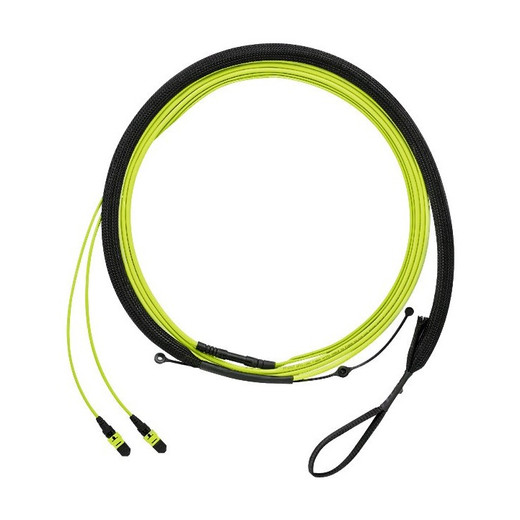

Panduit FWUYL7575LAM082 OM5 Trunk Cable Assembly
Overview
The Panduit FWUYL7575LAM082 is an 82-meter (269 ft) OM5 LSZH trunk cable assembly designed for high-density data center applications. Its small diameter saves 30-40% of space compared to standard trunk cables, facilitating quicker infrastructure deployment and extended reach capabilities where cable management is critical.
Compatibility
This trunk cable assembly is engineered for use within Panduit's QuickNet™ system and is compatible with standard MPO/MTP connectors and transceivers supporting OM5 fiber. It meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, and TIA-604-5 (FOCIS-5) standards, ensuring interoperability with compliant network equipment and fiber optic systems.
Installation Notes
The LSZH (Low Smoke Zero Halogen) flammability rating is essential for installations in plenum spaces or areas with strict fire safety codes, reducing the risk of toxic smoke and corrosive gases in case of fire. The OM5 fiber type supports a wider range of wavelengths, enabling higher bandwidth and future-proofing for applications like 400GbE and beyond.
