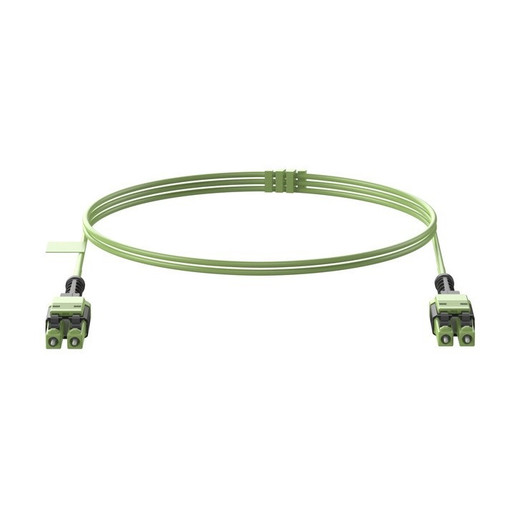

Panduit FW2RPU1U1NNM002 OM5 LC Uniboot Fiber Patch Cord

Panduit FW2RPU1U1NNM002 Opti-Core OM5 Fiber Patch Cord

The Panduit FW2RPU1U1NNM002 is a 2-meter OM5 multimode fiber patch cord with LC duplex uniboot connectors and plenum-rated (OFNP) jacket. Engineered for 40G/100G short-wave division multiplexing (SWDM) applications, this lime-green 50/125 µm cable delivers backward compatibility with OM3/OM4 infrastructure while future-proofing data center spine-leaf architectures and high-density SAN fabrics. The space-saving uniboot design reduces cable management burden in 1U switch deployments, and the plenum rating satisfies air-handling space requirements in commercial installations without the need for conduit.

Key Features

• OM5 50/125 µm multimode fiber — supports 40GBASE-SR4, 100GBASE-SR4, and SWDM applications up to 100 meters at 100 Gb/s
• LC duplex uniboot connectors with UPC polish — single-cable routing saves 50% patching space versus dual-LC designs
• Plenum-rated OFNP jacket — IEC 60332-1-2 compliant for use in HVAC plenums and above suspended ceilings
• TIA-568 lime-green jacket — immediate visual identification of OM5 fiber in mixed-generation deployments
• 2-meter length — ideal for intra-rack and adjacent-rack connections in 42U+ cabinets
• Backward compatible with OM3/OM4 transceivers — drop-in upgrade path without replacing installed base

OM5 fiber represents the first multimode standard optimized for short-wave division multiplexing, enabling four 25 Gb/s wavelengths (850/880/910/940 nm) over a single fiber pair. This quad-wavelength approach eliminates the need for parallel optics in 40G/100G applications, reducing transceiver port counts and associated power/cooling overhead. The Panduit Opti-Core construction uses laser-optimized 50 µm core diameter with tightly controlled effective modal bandwidth (EMBc) across all four SWDM channels, ensuring <1.5 dB insertion loss and <-20 dB return loss per TIA-568.3-D. The LC duplex uniboot connector consolidates transmit and receive fibers into a single push-pull boot with polarity-reversing capability at the connector end — field techs can flip A/B polarity without re-terminating the cable, critical when troubleshooting method-B trunk deployments or correcting mis-punched cross-connects.

The plenum-rated jacket meets National Electrical Code Article 770 requirements for air-handling spaces, using low-smoke zero-halogen (LSZH) compounds that self-extinguish and produce minimal toxic fumes during fire events. Integrators installing in Class A office buildings or healthcare facilities avoid the added labor and material cost of running fiber through metal conduit or J-hooks outside the plenum path. The 2-meter length bridges typical top-of-rack switch-to-spine distances in leaf-spine fabrics, or connects adjacent racks in converged SAN/LAN environments where inter-cabinet spacing follows ANSI/TIA-942 guidelines. Data center operators running Cisco Nexus 9000, Arista 7000-series, or Juniper QFX spine switches see immediate density benefits — a 48-port 100G spine with uniboot cabling requires half the cable management tray depth of traditional duplex LC designs, freeing vertical space for power distribution or rear cable access. The lime-green jacket color adheres to TIA-598 fiber identification standards, preventing accidental OM3/OM4 crossover during MAC moves in mixed-generation environments.

This patch cord ships in single-unit packaging with 10-pack carton availability for volume deployments. Panduit Opti-Core OM5 cables carry manufacturer warranty and are tested to exceed TIA-568.3-D Category OM5 insertion loss and bandwidth specifications. For installations requiring NFPA 70 compliance, BICSI DCDC certification, or Uptime Institute Tier III/IV validation, the FW2RPU1U1NNM002 provides a pre-terminated, factory-tested interconnect solution that eliminates field-polish variability and accelerates move/add/change workflows in mission-critical fiber backbones.
