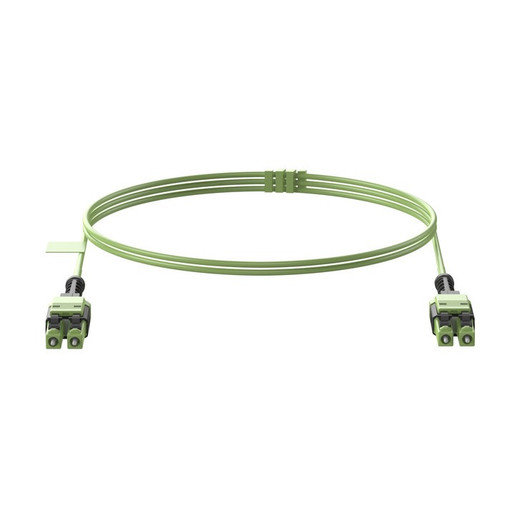

Panduit FW2RLU1U1ONM018 OM5 LC Duplex LSZH Fiber Patch Cord

Overview

The Panduit FW2RLU1U1ONM018 is an 18-meter (59.1 ft) OM5 wideband multimode fiber patch cord from the QuickNet™ pre-terminated assembly line. It ships factory-terminated with LC duplex connectors on both ends in a uniboot configuration, solving the core deployment problem in structured cabling: the time cost and quality risk of field termination. Pull it from the box, route it, and connect — no polishing, no testing field splices. Designed to TIA-568.3-D, ISO/IEC 11801, and ANSI/TIA-942-B, it fits directly into data centers, telecommunications rooms, entrance facilities, and equipment distribution areas where standards compliance is a hard requirement for system acceptance.

OM5 wideband multimode (50/125µm) fiber supports short-wavelength division multiplexing (SWDM) and parallel optics over the 850–953nm range — meaning this cable is forward-compatible with 40GbE and 100GbE applications over OM5-capable transceivers, while remaining fully backward-compatible with existing OM3/OM4 infrastructure and optics. If you're building out a data center today and want headroom for higher-bandwidth links without recabling, OM5 is the right choice over OM3 or OM4. The Low Smoke Zero Halogen (LSZH) jacket keeps toxic combustion gases out of enclosed, occupied spaces — a code requirement in many plenum and riser applications in Europe and increasingly in North American high-density environments.

Compatibility

LC duplex connectors are the dominant interface in data center and enterprise switching gear. This cord is compatible with any LC-duplex SFP, SFP+, or SFP28 port on multimode-capable switches and transceivers from Cisco, Juniper, Arista, HPE, Dell, and others, as well as OM5-rated patch panels in Panduit's own fiber optic patch panel lineup and third-party panels accepting LC duplex ports. Confirm your transceiver supports 50/125µm OM5 wideband multimode before specifying — some legacy OM1/OM2 optics are not compatible. The fiber optic cable category covers additional lengths and connector configurations if 18m does not match your run.

Installation Notes

The uniboot design consolidates two fibers into a single round jacket, halving the bundle diameter compared to standard duplex cordage — a meaningful difference in high-density cable management trays and patch fields where airflow and bend radius compliance matter. Maintain minimum bend radius per TIA-568.3-D to avoid insertion loss degradation. LSZH compounds are less flexible than PVC in cold environments; handle above 0°C during installation. PC (physical contact) polish on the connectors delivers typical insertion loss under 0.3 dB and return loss greater than 40 dB — sufficient for all standard multimode link budgets but not appropriate where UPC or APC performance is required.
