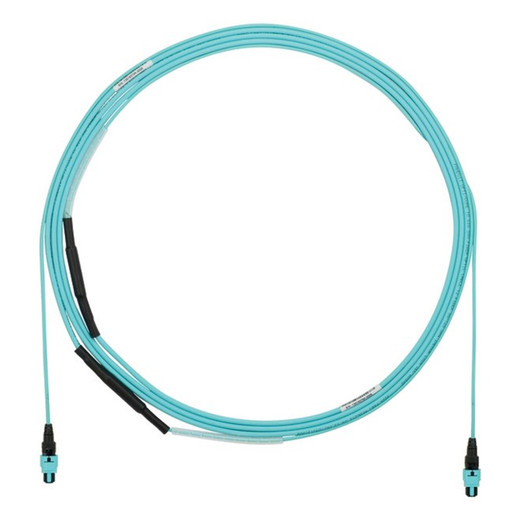

Panduit FYZTP77Y005F100 OM4 Multimode Pre-Terminated Fiber Trunk Cable
Overview
The Panduit FYZTP77Y005F100 is a 100-foot (30.5m) OM4 multimode pre-terminated fiber trunk cable from the Panduit QuickNet HD Flex line — purpose-built for data centers, telecommunications rooms, entrance facilities, and equipment distribution areas that need to eliminate field-termination time without sacrificing performance. At 50/125µm OM4 multimode, this trunk supports high-bandwidth applications at the distances common in modern enterprise and colocation environments. If your project can't afford the delays and inconsistency risk of field-terminated fiber, a factory-terminated trunk like this is the correct direction.
Key Features
- OM4 Multimode (50/125µm) fiber: OM4 supports up to 400Gb/s at short distances and 100Gb/s at up to 150m — meaning this 30.5m run keeps you well within spec for current and next-generation data center spine-leaf architectures. Choosing OM3 here would leave headroom on the table for future upgrades.
- 100ft / 30.5m factory pre-terminated: Field termination introduces connector variability and requires skilled labor on-site. Factory termination under controlled conditions delivers consistent insertion loss and reflection performance — critical when you're deploying dozens of trunks across a raised floor.
- QuickNet HD Flex sub-brand: The HD Flex designation within the Panduit structured cabling line indicates a high-density flexible trunk design — suited for tight bend-radius installations in cable trays and overhead pathways where rigid trunks cause routing problems.
- TIA-568.3-D compliant: Meets the current TIA standard for optical fiber cabling, which governs connector performance, cable geometry, and testing methodology. Compliance here matters when a data center audit or customer SLA requires documented standards conformance.
- ISO/IEC 11801 compliant: The international cabling standard alignment means this trunk works in globally distributed infrastructure projects without substitution risk — relevant for enterprise IT teams managing multi-site or multi-country deployments.
- ANSI/TIA-942-B compliant: This is the data center-specific cabling standard. Compliance directly supports formal data center design documentation and Tier classification requirements — a procurement requirement on many enterprise and colo builds.
- Pre-terminated trunk format: Trunks connect to fiber patch panels and cassettes rather than individual ports, which means moves, adds, and changes happen at the cassette level — not by pulling new fiber. That's a real operational advantage in environments where reconfiguration is frequent.
Integration and Compatibility
The FYZTP77Y005F100 is designed to integrate with Panduit QuickNet HD Flex cassette and patch panel systems — a structured structured cabling infrastructure approach where trunks, cassettes, and enclosures are matched at the system level. OM4 multimode is compatible with VCSEL-based transceivers (SFP+, QSFP28, QSFP-DD) used in switches from major vendors including Cisco, Arista, Juniper, and Extreme. Confirm your transceiver type before ordering: single-mode (OS2) transceivers will not function on OM4 multimode fiber — this is a common and expensive mistake on mixed-fiber campus builds. For PoE switch infrastructure to support this cabling plant, see network switches available by port count and PoE budget.
Frequently Asked Questions
Q: What fiber type does the FYZTP77Y005F100 use?
A: OM4 multimode, 50/125µm — the current high-bandwidth multimode standard supporting 100Gb/s to 150m and 400Gb/s at shorter distances.
Q: What standards does this trunk meet?
A: TIA-568.3-D, ISO/IEC 11801, and ANSI/TIA-942-B — covering both general premises cabling and data center-specific cabling requirements.
Q: Can I use this trunk with single-mode transceivers?
A: No. OM4 multimode fiber requires multimode (VCSEL-based) transceivers. Single-mode (OS2) transceivers are not compatible and will not pass light correctly on 50/125µm fiber.
Q: What is the physical length of the FYZTP77Y005F100?
A: 100 feet (30.5 meters).
Q: What infrastructure system does this trunk integrate with?
A: The Panduit QuickNet HD Flex cassette and patch panel system. The trunk connects at both ends to QuickNet cassettes or enclosures — field termination is not required.
The FYZTP77Y005F100 is the trunk you specify when a data center build is on a schedule that can't absorb field-termination delays. At 100 feet of OM4 50/125µm pre-terminated fiber, it's sized for the most common MDA-to-EDA or spine-to-leaf distances in mid-size colo and enterprise raised-floor environments — and the factory termination means you're not gambling on a technician's polish quality at 2am during a cutover.
Technical Highlights:
- OM4 multimode at 30.5m: Well within the 150m distance limit for 100Gb/s SWDM4 and SR4 applications — you have margin to spare for this run length, which matters when you're doing post-install OTDR verification.
- Triple-standard compliance (TIA-568.3-D / ISO/IEC 11801 / ANSI/TIA-942-B): All three standards on one trunk simplifies documentation for Tier II/III data center certification audits — you're not tracking separate compliance statements per standard.
- QuickNet HD Flex form factor: The flexible trunk jacket handles the bend radii you encounter in dense cable trays without creating insertion loss penalties from tight routing — a real issue with rigid trunks in retrofit builds where the pathway wasn't designed for fiber density.
Deployment Considerations:
- Confirm your end-to-end system is QuickNet HD Flex-compatible before ordering. The trunk's connectors are factory-installed to mate with specific Panduit cassette interfaces — mixing cassette families mid-deployment causes connector mismatch and re-pull costs.
- OM4 multimode is only appropriate when ALL transceivers in the link are multimode VCSEL-type. A single single-mode SFP in the path makes the entire trunk unusable — audit transceiver inventory before specifying fiber type on multi-vendor switch environments.
The FYZTP77Y005F100 is the right call for new data center builds and structured cabling refreshes in colocation facilities and enterprise server rooms where TIA-942-B compliance is a contract deliverable and field-termination risk isn't acceptable.
