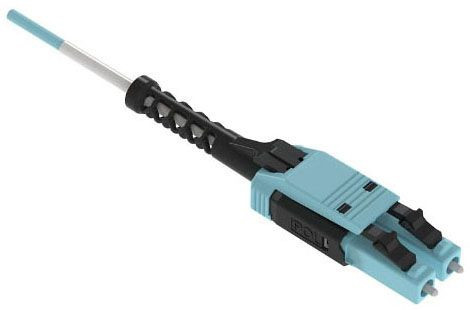

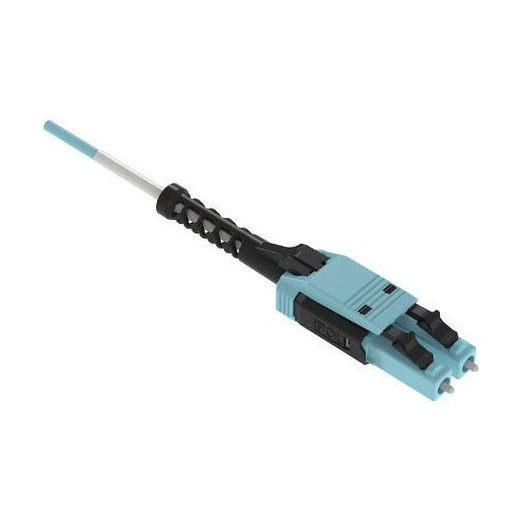

Panduit FZ2RPU1U1ONF018 OM4 Multimode Fiber Cable with LC Uniboot Connectors
The Panduit FZ2RPU1U1ONF018 is a factory-terminated 2-fiber OM4 multimode fiber optic cable assembly featuring LC duplex uniboot connectors and plenum-rated (OFNP) jacket construction. Part of Panduit's QuickNet™ pre-terminated fiber system, this cable delivers the high-bandwidth performance required for 10G, 40G, and 100G Ethernet applications in enterprise data centers, telecommunications facilities, and high-density network environments. The uniboot connector design consolidates both transmit and receive fibers into a single compact housing, reducing pathway congestion by up to 50% compared to traditional duplex LC cables while simplifying polarity management during installation and maintenance. Factory termination with 100% optical testing ensures consistent insertion loss performance and eliminates the variability, time, and specialized skill requirements associated with field termination, enabling rapid deployment without sacrificing link quality or long-term reliability.
Key Features
- OM4 50/125µm laser-optimized multimode fiber supports 10GBASE-SR up to 400m, 40GBASE-SR4 up to 150m, and 100GBASE-SR4 up to 100m per IEEE 802.3 standards
- LC duplex uniboot connector design reduces connector footprint by 50%, maximizing port density in high-density switch chassis and fiber patch panels
- Plenum-rated OFNP jacket meets NEC Article 770 requirements for installation in air-handling spaces, raised-floor plenums, and above-ceiling pathways without conduit
- Factory-terminated and tested to TIA-568.3-D performance standards with documented insertion loss and return loss specifications for every assembly
- 2mm round cable diameter provides superior flexibility for tight-radius bends in congested pathways, cable managers, and equipment side panels
- Physical Contact (PC) polish on LC ferrules ensures low insertion loss (typically <0.35dB) and minimal back reflection for reliable 10G+ optical performance
- Aqua jacket color provides instant visual identification of OM4 fiber per TIA-598-D color coding standards, reducing deployment errors
- QuickNet™ system integration enables rapid deployment with color-coded connectors, integrated pull-tab labeling, and compatibility with Panduit modular cassettes
- Push-pull connector boot design simplifies installation and removal in dense panel environments where finger access is limited
- Integrated polarity reversal mechanism allows field polarity changes without connector disassembly, streamlining ADDS/MOVES/CHANGES operations
OM4 multimode fiber represents the current standard for high-speed data center interconnects, offering four times the bandwidth-distance product of legacy OM3 fiber and sufficient performance headroom for future network upgrades. The 50µm core diameter is laser-optimized for 850nm VCSEL (Vertical-Cavity Surface-Emitting Laser) transceivers commonly deployed in 10G, 40G, and 100G Ethernet applications, providing effective modal bandwidth of 4700 MHz·km at 850nm—well beyond the 3500 MHz·km minimum specified in ISO/IEC 11801 for OM4 classification. This performance margin ensures 10GBASE-SR links operate reliably up to 400 meters (versus 300m for OM3), 40GBASE-SR4 links reach 150 meters (versus 100m for OM3), and 100GBASE-SR4 links achieve 100-150 meters depending on transceiver quality and connection loss budget. For spine-leaf data center architectures, these distances cover intra-row, end-of-row, and middle-of-row switching topologies without requiring costly OM5 or singlemode fiber upgrades. The uniboot connector configuration delivers measurable space savings in congested environments: by consolidating transmit and receive fibers into a single molded boot approximately the same width as a single LC connector, uniboot cables reduce faceplate congestion by 50%, improve airflow around densely populated switch ASICs, and simplify cable routing in vertical cable managers and horizontal trays. Most uniboot designs include an integrated polarity key or flip-tab mechanism that enables A-to-B or A-to-A polarity conversion without disassembling the connector body—critical for maintaining duplex fiber orientation when connecting switches to cassettes, patch panels, or cross-connect hardware with different polarity schemes (Method A, Method B, or Method C per TIA-568.3-D Annex C). The 2mm cable diameter (compared to 3mm for standard zip-cord duplex LC cables) further enhances installation flexibility, allowing 15mm minimum bend radius compliance in equipment side panels, high-density horizontal cable managers, and rear-access rack pathways where space is at a premium.
Pre-terminated fiber systems like Panduit QuickNet™ address the core challenges of traditional field-termination: inconsistent quality, specialized labor requirements, contamination risk during field handling, and extended installation timelines that delay revenue-generating services. Each Panduit factory-terminated assembly undergoes 100% automated optical testing for insertion loss, return loss, and fiber continuity using calibrated reference-grade test equipment, with performance data logged and certificates available on request for customer acceptance testing. This factory quality control eliminates the performance variability introduced by field termination, where connector end-face geometry (radius of curvature, apex offset, fiber protrusion), epoxy curing conditions, and cleanliness during polish directly impact insertion loss and can introduce 0.1-0.5dB of variability between identical links. For integrators deploying multi-rack data center builds, large-scale enterprise network refreshes, or telecommunications central office upgrades, pre-terminated fiber reduces on-site installation labor by 60-80% compared to field-terminated solutions (eliminating fusion splicing, epoxy curing time, connector polishing, and end-face inspection), compresses project schedules by days or weeks, and removes the need for specialized fiber technicians, fusion splicers, inspection microscopes, and controlled work environments on congested job sites. The plenum-rated OFNP (Optical Fiber Nonconductive Plenum) jacket construction is mandatory for installations in air-return plenums, raised-floor environments, and above-ceiling cable trays where building codes and NEC Article 770.179(A) require low-smoke, low-flame-spread materials to prevent toxic fume propagation during fire events. Panduit's OFNP jacket formulation meets UL 910 Steiner Tunnel testing for flame spread and smoke density, ensuring code compliance in commercial office buildings, healthcare facilities, educational institutions, and government data centers where AHJ (Authority Having Jurisdiction) inspections enforce strict plenum cable requirements. The aqua jacket color provides instant visual identification of OM4 fiber during installation, troubleshooting, and maintenance, reducing the risk of connecting mismatched fiber types (OM3 with OM4, or multimode with singlemode OS2) that could degrade link performance due to mode field diameter mismatch, cause transceiver damage from excessive optical return loss, or violate structured cabling standards that require fiber type consistency across permanent link segments.
This cable ships as individual units with a minimum order quantity of 10 pieces, making it suitable for medium-to-large deployments where project-wide consistency, rapid installation, and factory-certified performance are business requirements. The FZ2RPU1U1ONF018 is fully compliant with TIA-568.3-D (Commercial Building Telecommunications Cabling Standard), ISO/IEC 11801 (Generic Cabling for Customer Premises), ANSI/TIA-942-B (Telecommunications Infrastructure Standard for Data Centers), and IEEE 802.3 Ethernet standards, ensuring interoperability with structured cabling systems, switches, and transceivers from any manufacturer and compatibility with Panduit or third-party fiber enclosures, cassettes, and patch panels. Panduit's QuickNet™ ecosystem extends beyond patch cords to include pre-terminated MPO/MTP® trunk assemblies (12F, 24F, 48F), plug-and-play cassette modules for 10G-to-40G and 10G-to-100G breakouts, high-density fiber enclosures (1U, 2U, 4U), and angled adapter panels that support a complete pre-terminated fiber infrastructure scaling from 10G access layers to 40G aggregation and 100G spine/leaf architectures without field splicing or termination at any point in the physical layer. For integrators managing data center greenfield builds, enterprise campus fiber backbone upgrades, or telecommunications facility modernization projects where installation speed, performance consistency, and long-term reliability directly impact project profitability and customer satisfaction, this Panduit pre-terminated OM4 uniboot cable delivers the combination of high-density connectivity, proven optical performance, and plug-and-play deployment efficiency required to meet aggressive go-live schedules while maintaining the physical infrastructure quality and future bandwidth scalability that protect capital investments over 15-20 year building lifecycles.
