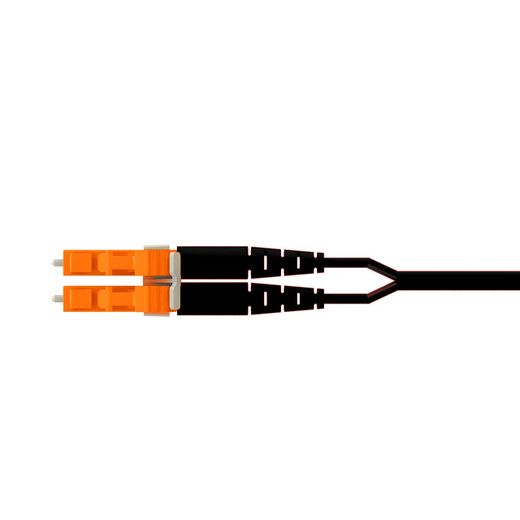

Panduit FS2EPKEKENEM010 OM4+ Coded LC Patch Cord 10m

Panduit FS2EPKEKENEM010 Opti-Core 2-Fiber OM4+ Coded Duplex LC Plenum Patch Cord

The Panduit FS2EPKEKENEM010 is a 10-meter OM4+ fiber optic patch cord engineered with coded duplex LC connectors for physical layer security in datacenter and enterprise backbone deployments. Part of Panduit's Opti-Core coded cabling system, this cord features E-code orange keyed connectors that mate only with matching E-code adapters, preventing unauthorized connections and cross-zone fiber migration. Built on Signature Core OM4+ 50/125µm multimode fiber, it supports 40GBASE-SR4 and 100GBASE-SR4 Ethernet over distances up to 150 meters, with ultra-low insertion loss specified at ≤0.15 dB typical. The plenum-rated (OFNP) zipcord jacket qualifies this cord for installation in air-handling spaces per NEC Article 770, eliminating the need for conduit in raised-floor and drop-ceiling pathways common to server rooms and IDF closets.

Key Features

• OM4+ Signature Core 50/125µm multimode fiber supports 40G/100G Ethernet up to 150m
• E-code duplex LC connectors provide physical layer security—mate only with matching coded adapters
• Ultra-low insertion loss ≤0.15 dB typical ensures link budget margin for high-speed optics
• Plenum-rated (OFNP) zipcord jacket for 1.6mm cable, compliant with NEC Article 770 air-handling space requirements
• 10-meter (32.8 ft) length suits equipment rack-to-rack and intra-room datacenter runs
• Orange cable and connector bodies for instant OM4 fiber type identification
• RoHS compliant construction for environmentally responsible installations

Panduit's coded connector system addresses a persistent operational risk in multi-tenant datacenters and segmented enterprise networks: accidental or deliberate fiber cross-connections between security zones, VLANs, or customer partitions. The E-code keying mechanism physically prevents LC connectors from mating with standard adapters or different code variants (A, B, C, D, F through M codes available across the Opti-Core line). This mechanical enforcement layer complements logical access controls, especially valuable in colocation facilities where physical access boundaries are less rigid than network policy. The OM4+ Signature Core fiber itself delivers 4700 MHz·km effective modal bandwidth at 850nm—exceeding the 4700 MHz·km OM4 specification floor—which translates to lower bit error rates and extended reach for 40GBASE-SR4 BiDi and emerging 100G multimode optics. Insertion loss is held to ≤0.15 dB per mated pair through precision ferrule geometry and factory termination with automated end-face inspection, leaving more link budget available for patch panel interconnects, MTP/MPO trunk fanouts, and aging fiber plant.

The OFNP plenum rating is critical for installations in the 70–80% of commercial buildings where structured cabling occupies ceiling plenums, under-floor plenums, or HVAC return-air pathways. Non-plenum cables (OFNR riser, OFN general-purpose) require metallic conduit in these spaces per NEC 770.113, adding material cost and restricting serviceability. This cord's flame-retardant, low-smoke jacket meets NFPA 262 (UL 910) plenum fire test requirements, allowing direct lay without conduit. The 1.6mm zipcord construction—two simplex fibers in a flat, separable jacket—offers easier routing through tight bend radius trays and cable managers than round cordage, while the 10-meter length handles typical intra-row server-to-TOR switch runs, SAN fabric edge connections, and MDA-to-IDA horizontal links in structured cabling topologies. Duplex LC footprint is half that of SC duplex, critical in high-density 1U switch faceplates where 48-port QSFP28 line cards demand front-panel fiber counts exceeding 96 strands.

This patch cord ships as a single unit (10-pack carton quantities available for volume deployment) and meets the EU RoHS Directive for restricted substances, aligning with corporate sustainability mandates and LEED project requirements. The coded connector system is backward-compatible with Panduit's broader Opti-Core ecosystem—panels, cassettes, and trunk cables—enabling staged migration from legacy non-coded infrastructure without forklift upgrades. For integrators specifying physical layer security as a contract requirement or designing networks where fiber zone isolation must survive human error, the FS2EPKEKENEM010 delivers field-proven keying at the connector level, eliminating the \"wrong port\" failure mode that logical MAC filters and VLANs cannot prevent.
