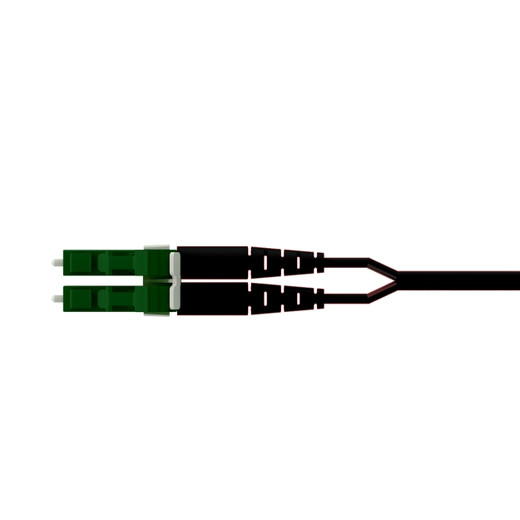

Panduit FS2EPKCKCNCM010 OM4+ C-Code LC Patch Cord 10m

Panduit FS2EPKCKCNCM010 Opti-Core OM4+ Coded Fiber Patch Cord

The Panduit FS2EPKCKCNCM010 is a 10-meter plenum-rated duplex fiber patch cord engineered for high-security data centers, government facilities, and multi-tenant buildings where physical layer access control is mandatory. Built on Panduit's Signature Core OM4+ fiber with duplex LC coded connectors (C-code, green jacket and boots), this cord delivers ultra-low insertion loss for 40/100GBASE-SR4 and prevents unauthorized or accidental cross-connections. The OFNP plenum rating meets NEC Article 770 for installation in air-handling spaces without conduit, and the 1.6mm zipcord jacket provides the flexibility installers need in dense patch-panel environments.

Key Features

• C-Code Green Keyed LC Connectors — physical layer security; only mates with matching C-code ports
• OM4+ Signature Core Fiber — ultra-low insertion loss optimized for 40/100G SR applications
• OFNP Plenum Rated — NEC Article 770 compliant for installation in air-handling ceilings and raised floors
• 10-Meter Length (32.81 ft) — spans equipment rows or cross-connects in typical data center hot/cold aisles
• 1.6mm Zipcord Jacket — flexible, low-profile cable body for high-density patch panels and cable managers
• Duplex LC Termination Both Ends — industry-standard SFF connector for switches, transceivers, and media converters
• RoHS Compliant — meets EU Directive 2011/65/EU for restricted hazardous substances
• Panduit Opti-Core System Component — integrates with Panduit's end-to-end coded fiber infrastructure

Panduit's coded connector system uses mechanical keying to enforce physical layer segmentation. The C-code green variant in this cord features a unique key profile machined into both the duplex LC plug and the corresponding adapter insert; non-matching keys physically block insertion, preventing accidental cross-connects between production and backup networks, classified and unclassified zones, or tenant A and tenant B circuits. Unlike color-coding alone—which relies on installer discipline—keyed connectors provide fail-safe segregation even under time pressure or in low-light conditions. This FS2EPKCKCNCM010 cord ships with C-code green boots and a green jacket, so visual and mechanical coding reinforce each other. The Signature Core OM4+ fiber inside meets TIA-492AAAE and ISO/IEC 11801 OM4 specs with margin, delivering typical insertion loss under 0.15 dB per mated pair—critical when your 100GBASE-SR4 link budget allows only 1.9 dB total for four duplex lanes over 100 meters. Panduit factory-polishes every ferrule and inspects it under interferometry before shipment, ensuring you won't burn half your loss budget on a single bad connector.

The OFNP plenum jacket uses a low-smoke, flame-retardant compound that meets NFPA 262 (UL 910) vertical flame test and NEC 770.179(A) plenum cable requirements. In practice, this means you can run this cord through drop ceilings, under raised floors, or in HVAC plenums without enclosing it in conduit or EMT—saving install time and material cost in ceiling-grid retrofit jobs or modular data center builds. The 1.6mm zipcord construction (two 900-micron tight-buffered fibers in a flat twin configuration) is easier to dress and route than round 2mm or 3mm cable, especially in vertical cable managers where space is tight and bend radius matters. At 10 meters, this cord length suits cross-aisle connections in a typical row-based data center layout (7-meter aisle + vertical rise + service loop), equipment-to-patch-panel homeruns in a telecom room, or switch-to-switch uplinks in a two-post relay rack. The duplex LC interface is ubiquitous on 10G/25G/40G/100G SR transceivers, media converters, and fiber NICs, so you won't need adapter cassettes or hybrid breakouts.

This cord is RoHS-compliant per EU Directive 2011/65/EU and ships in cartons of 10 for volume deployments. Panduit backs it with the same manufacturing quality control that has made Opti-Core the go-to fiber system for defense contractors, financial trading floors, and hyperscale colocation providers. If your security plan calls for network segmentation enforced at the physical layer—or if you're simply tired of re-terminating patch cords after an installer plugged the wrong circuit into the wrong port—the FS2EPKCKCNCM010's C-code keying gives you mechanical enforcement that survives shift changes, contractor handoffs, and emergency maintenance at 2 a.m.
